Buy GB WSME 500 AC/DC TIG Welding Machine Online at Best Price

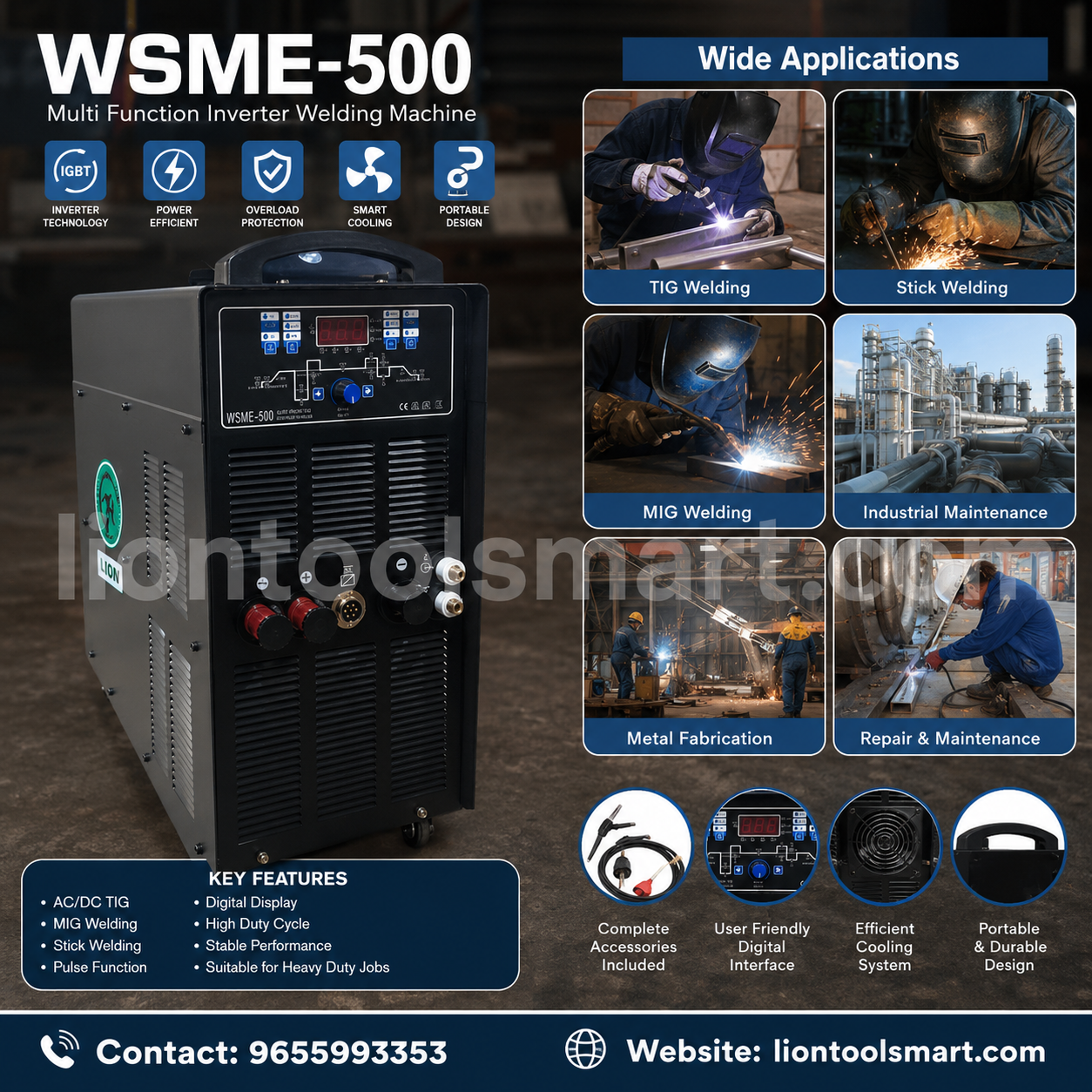

GB WSME 500 AC/DC Pulse TIG/MMA Welding Machine – Professional 500A Industrial Welding Solution

The GB WSME 500 Welding Machine is a heavy-duty 500A AC/DC Pulse TIG & MMA inverter welder designed for industrial fabrication and precision welding applications. Powered by advanced digital IGBT inverter technology, it delivers exceptional arc stability, high efficiency, and precise welding control for both thin and thick materials.

Operating on a 3 Phase 380–415V AC power supply, the WSME 500 supports AC TIG, DC TIG, Pulse TIG, and MMA (Stick) welding. The AC mode is ideal for aluminium and magnesium alloys, while the DC mode provides excellent performance on stainless steel, carbon steel, copper, titanium, and other metals. With features like HF arc starting, adjustable AC balance, pulse frequency, upslope/downslope, crater current, and post-gas control, it is suitable for continuous industrial operation.

Features:

• Brand: GB
• Model: WSME 500
• Product Type: AC/DC Pulse TIG & MMA Inverter Welding Machine
• Technology: Digital IGBT Inverter
• Input Voltage: 3 Phase AC 380–415V, 50/60Hz
• Welding Processes: AC TIG, DC TIG, Pulse TIG & MMA
• High Frequency (HF) Arc Start
• Digital Microprocessor Control
• Adjustable AC Balance
• Adjustable Pulse Frequency
• Adjustable Peak & Base Current
• Adjustable Start Current & Crater Current
• Adjustable Upslope & Downslope
• Post Gas Flow Adjustment
• Digital Display Panel
• Forced Air Cooling
• Over-Voltage, Over-Current & Overheat Protection
• Suitable for continuous industrial welding

Specifications:

• Input Voltage: 3 Phase AC 380–415V
• Frequency: 50/60Hz
• TIG Output Range: 10–500A
• MMA Output Range: 15–500A
• Open Circuit Voltage: 70V
• Duty Cycle: 85%
• Efficiency: 85%
• Power Factor: 0.93
• Protection Class: IP21S
• Insulation Class: F
• Cooling System: Forced Air Cooling
• Rated Input Capacity: Approx. 25–45kVA (depending on configuration)
