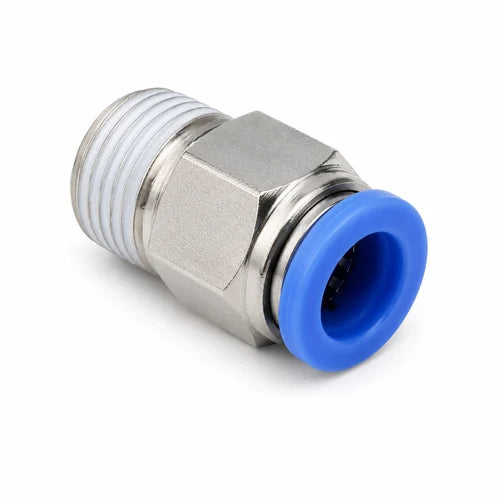

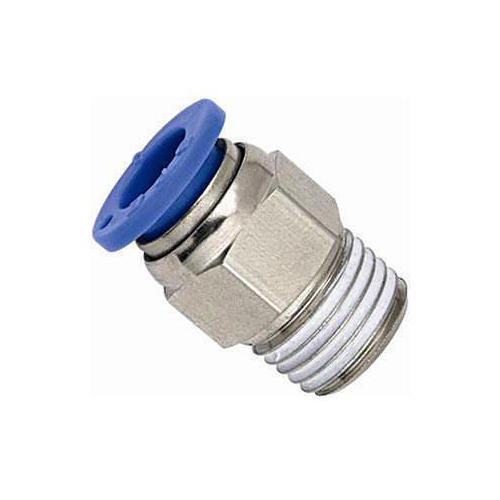

Janatics 8X1/2 Inch ST Male Connector WP2110853 | 8mm One-Touch Pneumatic Fitting for Air Lines, Compressors, Automation Systems & Industrial Applications
The JANATICS WP2110853 8X1/2 ST Male Connector is a straight pneumatic male connector designed for connecting 8 mm outer-diameter pneumatic tubing to equipment or components with a 1/2-inch BSP male threaded port. It belongs to the Janatics WP2 One-Touch Fittings range and is suitable for compressed-air and pneumatic automation applications.
Its push-in tube connection allows pneumatic tubing to be inserted quickly, while the collet mechanism provides a secure grip and makes tube removal simple by pressing the collet cap. The fitting is designed to provide bubble-tight sealing, maintain reliable tube gripping under vibration, and provide a clear internal flow path. It is suitable for both Nylon and PU pneumatic tubing.
The connector features a standard straight design, R1/2 BSP male thread, and an 8 mm tube connection. Janatics' official selection guide specifies a 22 mm hex, 25.5 mm overall length (L1), and 18 mm tube insertion length (L2) for model WP2110853.
Product Features
One-Touch Push-In Connection: Enables quick installation of 8 mm pneumatic tubing without complicated tools.
Straight Male Connector: Provides a direct connection between pneumatic tubing and a threaded pneumatic component.
8 mm Tube Compatibility: Designed for tubing with an 8 mm outer diameter.
1/2-Inch BSP Thread: Uses an R1/2 male taper thread for connection to compatible pneumatic equipment.
Bubble-Tight Sealing: Helps minimize air leakage and maintain reliable pneumatic performance.
Positive Tube Grip: The collet securely grips the tube and helps prevent tube movement caused by vibration.
Easy Tube Removal: The tube can be removed by simply pressing the collet cap.
Nylon & PU Tube Support: Suitable for commonly used Nylon and Polyurethane pneumatic tubes.
Stainless-Steel Collet: The connector incorporates a stainless-steel collet design for secure tube retention.
Pre-Coated Male Threads: Teflon pre-coated male taper threads help support dependable threaded sealing.
Compact Construction: Suitable for pneumatic control systems where installation space is important.
Maintenance-Free Operation: Designed for dependable, long-term pneumatic service.
Product Specifications
Brand: JANATICS
Model / Part Number: WP2110853
Product Type: Straight Male Connector
Fitting Series: WP2
Tube Outer Diameter: 8 mm
Thread Type: BSP
Thread Size: R1/2 / 1/2 Inch
Connection Type: One-Touch Push-In
Model Shape: Straight
Hex Size / Wrench Size: 22 mm
Overall Length (L1): 25.5 mm
Tube Insertion Length (L2): 18 mm
Suitable Tubing: Nylon and PU tubing
Medium: Compressed air
Operating Pressure: Up to 10 bar, according to available product specifications.
Ambient Temperature: 5°C to 60°C, according to available product specifications.
Country of Origin: India.
Applications: Pneumatic automation, air lines, pneumatic machinery, industrial equipment, air preparation systems and compressed-air connections.
