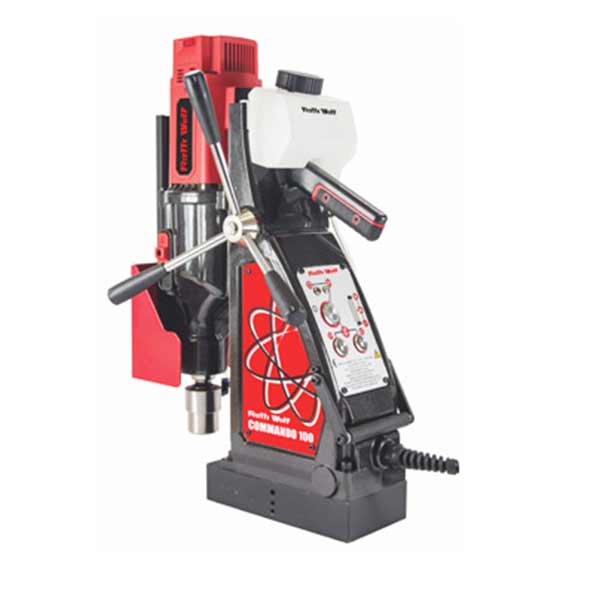

The Ralli Wolf Commando 100 New Magnetic Core Drill Machine is a heavy-duty industrial drilling tool designed for large-diameter hole-making in structural steel, metal plates and other suitable ferrous materials. Its powerful 2000W motor and four-speed variable and reversible operation provide flexibility for demanding fabrication and metalworking tasks.

With a maximum core drilling capacity of 100mm diameter × 100mm depth, this machine is suitable for heavy engineering, steel fabrication and construction applications. The 20,000N magnetic adhesion system helps secure the drill to compatible steel surfaces, while the MT3 adaptor system supports core drilling and twist drilling. It also offers a maximum twist drill capacity of 32mm and tapping capacity of M30.

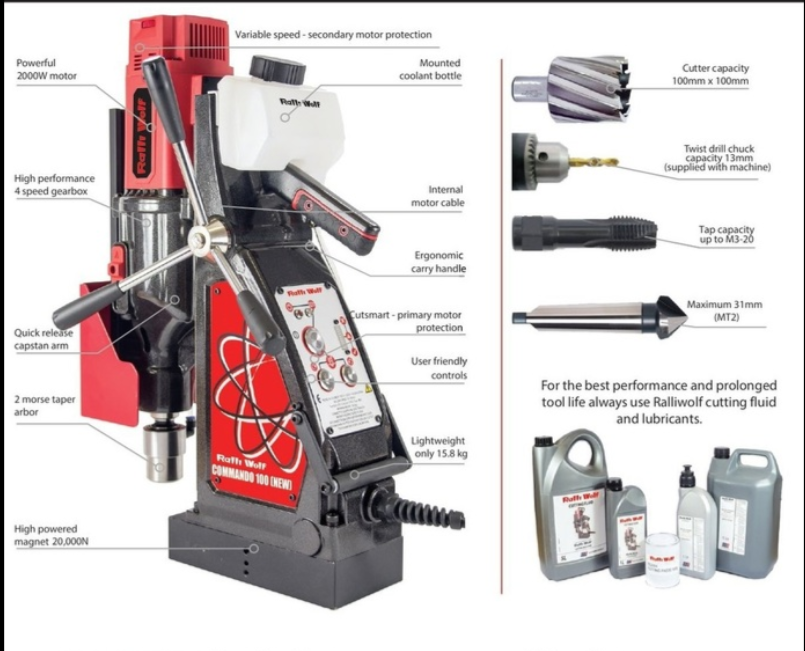

Key Features

Powerful 2000W Motor: Designed for demanding industrial drilling operations.
100mm Core Drilling Capacity: Supports holes up to 100mm diameter and 100mm depth.
Four-Speed Operation: Multiple speed settings for different drilling requirements.
Variable and Reversible: Offers flexible speed and direction control.
20,000N Magnetic Adhesion: Helps hold the machine firmly on suitable ferrous surfaces.
32mm Twist Drill Capacity: Supports conventional twist drilling.
M30 Tapping Capacity: Suitable for compatible threading applications.
MT3 Adaptor System: Supports compatible core-drilling accessories.
264mm Stroke: Provides extended travel for drilling operations.
Comprehensive Accessory Kit: Includes standard drilling accessories and safety equipment.

Applications

Structural steel fabrication
Steel beam and plate drilling
Bridge and infrastructure construction
Heavy engineering workshops
Shipbuilding and marine fabrication
Industrial plant maintenance
Pipeline and pressure-vessel fabrication
Large-diameter metal core drilling
Twist drilling and tapping operations

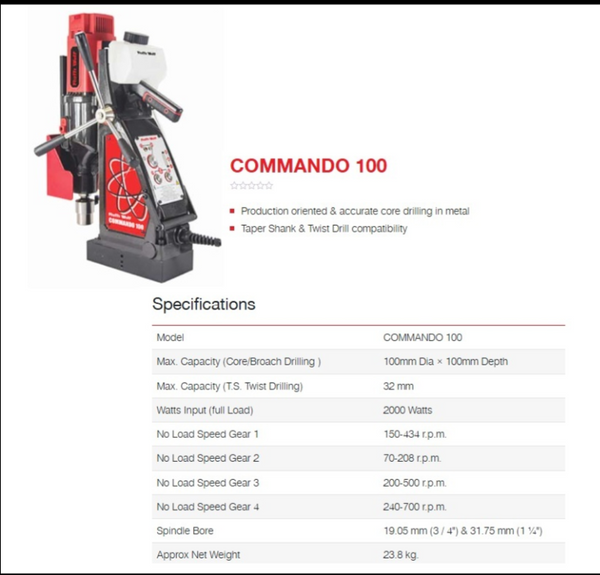

Technical Specifications

Specification	Details
Brand	Ralli Wolf
Model	Commando 100 New
Tool Type	Magnetic Core Drill Machine
Input Voltage	230V
Rated Input Power	2000W
Core Drilling Capacity	100mm diameter × 100mm depth
Twist Drill Capacity	32mm
Tapping Capacity	M30
No-Load Speed	4 speed settings, 45–700 RPM overall range
Speed Settings	45–129 / 70–208 / 150–434 / 240–700 RPM
Speed Control	Variable and reversible
Magnetic Adhesion	20,000N
Adaptor Size	MT3
Stroke	264mm
Magnet Dimensions (L × W × H)	228 × 114 × 50mm
Approximate Net Weight	22kg without accessories

Package Details

Standard accessories listed for this model include:

1 × Ralli Wolf Commando 100 New Magnetic Core Drill Machine
3 × Side Arms
2 × Allen Keys
1 × Coolant Bottle
1 × Safety Belt
1 × Drift
1 × 16mm Chuck with Key
1 × Drill Chuck Arbor, MT3 B16
2 × Eye Bolts
1 × Safety Goggle
1 × Pilot Pin
1 × MT3 19.05mm Core Drilling Adaptor
1 × MT3 31.75mm Core Drilling Adaptor

Ralli Wolf Commando 100 New 2000W Magnetic Core Drilling Machine, 100mm Drilling Capacity, 4-Speed Variable and Reversible Operation, 20000N Magnetic Adhesion and MT3 Adaptor
