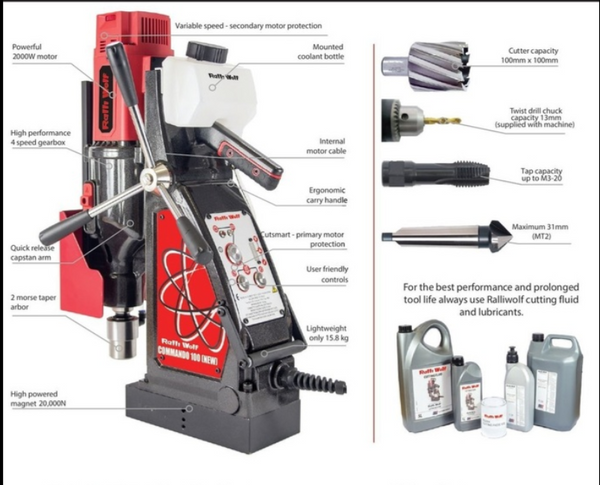

Ralli Wolf Commando 100 New 2000W Magnetic Core Drilling Machine, 100mm Drilling Capacity, 4-Speed Variable and Reversible Operation, 20000N Magnetic Adhesion and MT3 Adaptor

Product Code:

Availability:Out of stock

The Ralli Wolf Commando 100 New Magnetic Core Drill Machine is a heavy-duty industrial drilling tool designed for large-diameter hole-making in structural steel, metal plates and other suitable ferrous materials. Its powerful 2000W motor and four-speed variable and reversible operation provide flexibility for demanding fabrication and metalworking tasks.

With a maximum core drilling capacity of 100mm diameter × 100mm depth, this machine is suitable for heavy engineering, steel fabrication and construction applications. The 20,000N magnetic adhesion system helps secure the drill to compatible steel surfaces, while the MT3 adaptor system supports core drilling and twist drilling. It also offers a maximum twist drill capacity of 32mm and tapping capacity of M30.

Key Features

  • Powerful 2000W Motor: Designed for demanding industrial drilling operations.
  • 100mm Core Drilling Capacity: Supports holes up to 100mm diameter and 100mm depth.
  • Four-Speed Operation: Multiple speed settings for different drilling requirements.
  • Variable and Reversible: Offers flexible speed and direction control.
  • 20,000N Magnetic Adhesion: Helps hold the machine firmly on suitable ferrous surfaces.
  • 32mm Twist Drill Capacity: Supports conventional twist drilling.
  • M30 Tapping Capacity: Suitable for compatible threading applications.
  • MT3 Adaptor System: Supports compatible core-drilling accessories.
  • 264mm Stroke: Provides extended travel for drilling operations.
  • Comprehensive Accessory Kit: Includes standard drilling accessories and safety equipment.

Applications

  • Structural steel fabrication
  • Steel beam and plate drilling
  • Bridge and infrastructure construction
  • Heavy engineering workshops
  • Shipbuilding and marine fabrication
  • Industrial plant maintenance
  • Pipeline and pressure-vessel fabrication
  • Large-diameter metal core drilling
  • Twist drilling and tapping operations

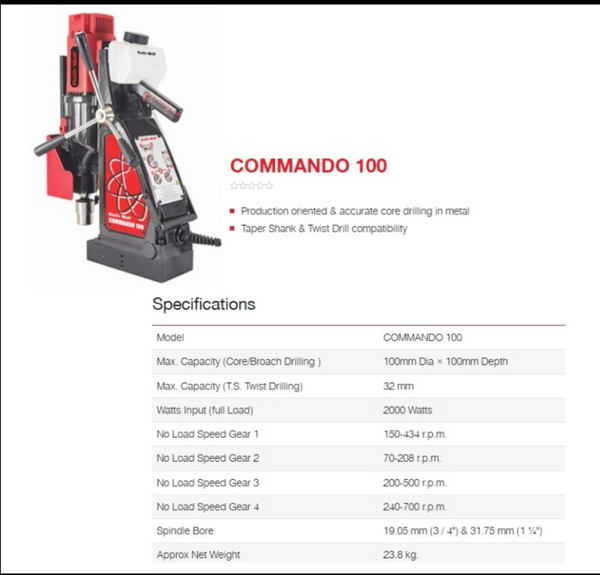

Technical Specifications

Specification Details
Brand Ralli Wolf
Model Commando 100 New
Tool Type Magnetic Core Drill Machine
Input Voltage 230V
Rated Input Power 2000W
Core Drilling Capacity 100mm diameter × 100mm depth
Twist Drill Capacity 32mm
Tapping Capacity M30
No-Load Speed 4 speed settings, 45–700 RPM overall range
Speed Settings 45–129 / 70–208 / 150–434 / 240–700 RPM
Speed Control Variable and reversible
Magnetic Adhesion 20,000N
Adaptor Size MT3
Stroke 264mm
Magnet Dimensions (L × W × H) 228 × 114 × 50mm
Approximate Net Weight 22kg without accessories



Package Details

Standard accessories listed for this model include:

  • 1 × Ralli Wolf Commando 100 New Magnetic Core Drill Machine
  • 3 × Side Arms
  • 2 × Allen Keys
  • 1 × Coolant Bottle
  • 1 × Safety Belt
  • 1 × Drift
  • 1 × 16mm Chuck with Key
  • 1 × Drill Chuck Arbor, MT3 B16
  • 2 × Eye Bolts
  • 1 × Safety Goggle
  • 1 × Pilot Pin
  • 1 × MT3 19.05mm Core Drilling Adaptor
  • 1 × MT3 31.75mm Core Drilling Adaptor
