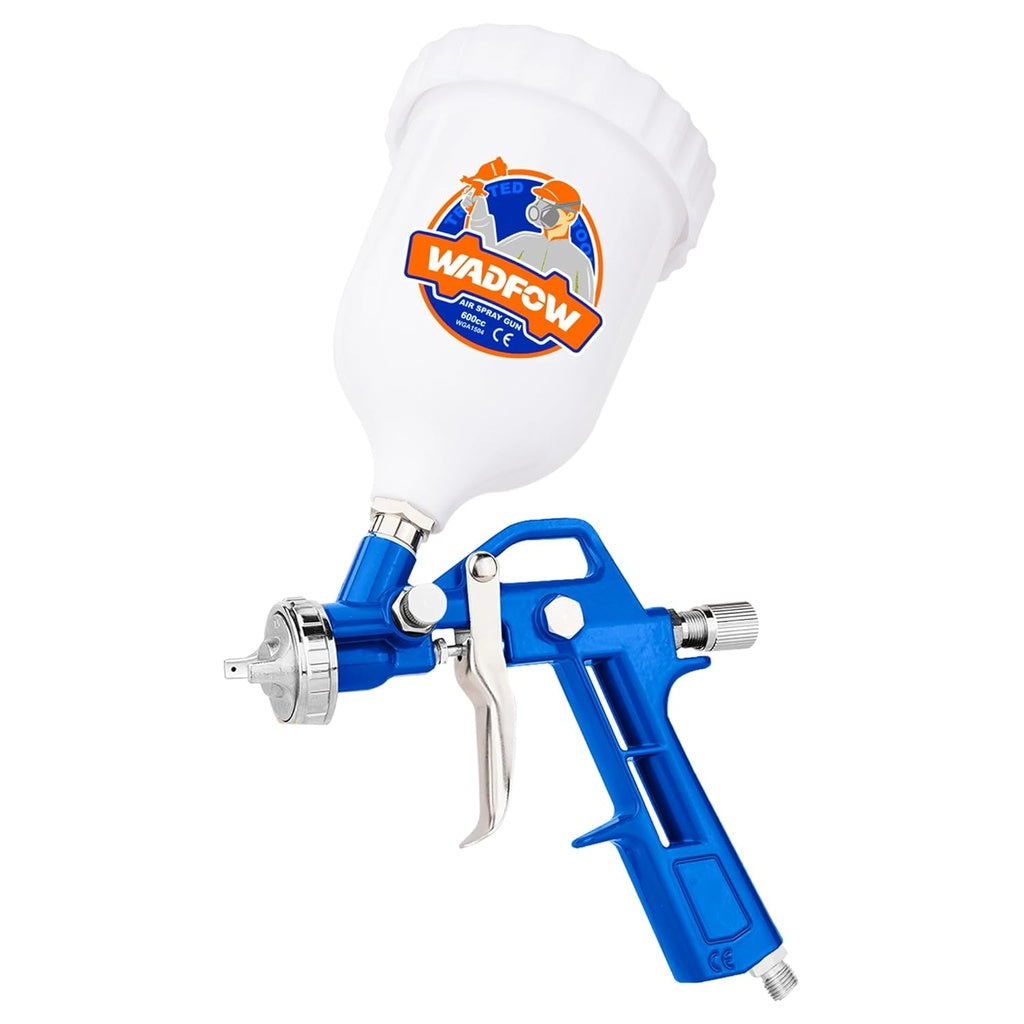

The Wadfow WGA1506 Paint Spray Gun is a pneumatic HVLP air spray gun designed for smooth and controlled application of finishing coats, paints, varnishes and compatible coatings. It uses a 1.4mm standard nozzle and a 600cc paint cup, making it well suited for professional finishing work and medium-sized painting applications.
The gravity-feed design allows paint to flow from the upper cup into the spray gun, while the compressed-air system atomizes the coating into a fine spray. Its 180–230mm spray pattern provides good surface coverage, helping users achieve a more uniform finish across panels and other workpieces.
The WGA1506 operates at 2–3.5 bar working pressure with an air consumption of approximately 3–4.5 CFM (85–127 L/min) according to Wadfow's official specifications. The standard 1.4mm nozzle is particularly suited to finishing-coat applications, while optional nozzle sizes from 1.3mm to 2.5mm provide additional versatility where available.
It is a practical choice for automotive refinishing, furniture and woodworking, fabricated metal parts, machinery, doors, gates, panels and general workshop painting. Always select the coating, thinning ratio, pressure and nozzle according to the coating manufacturer's instructions.
Product Features & Specifications
Brand: Wadfow
Product Type:Air Paint Spray Gun / HVLP Spray Gun
Model Number:WGA1506
Feed Type:Gravity Feed
Standard Nozzle Size:1.4mm

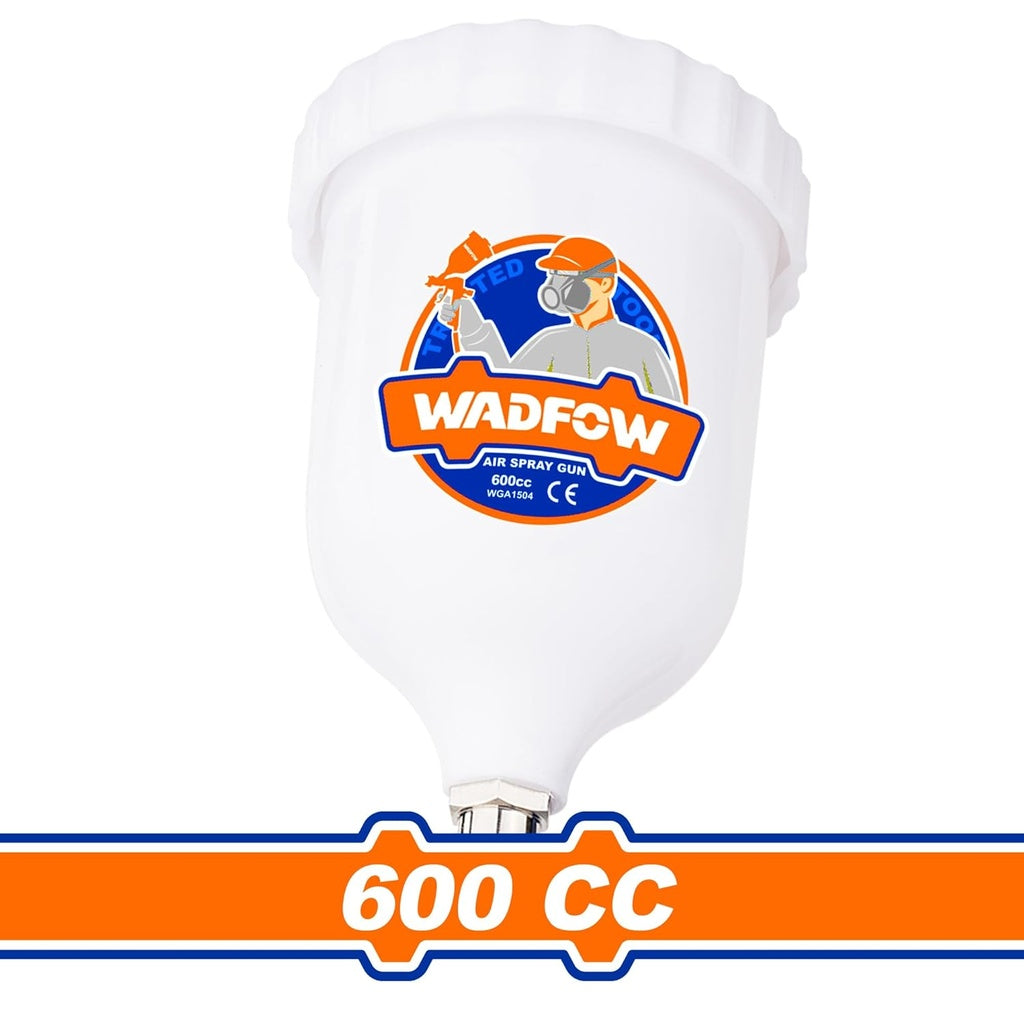

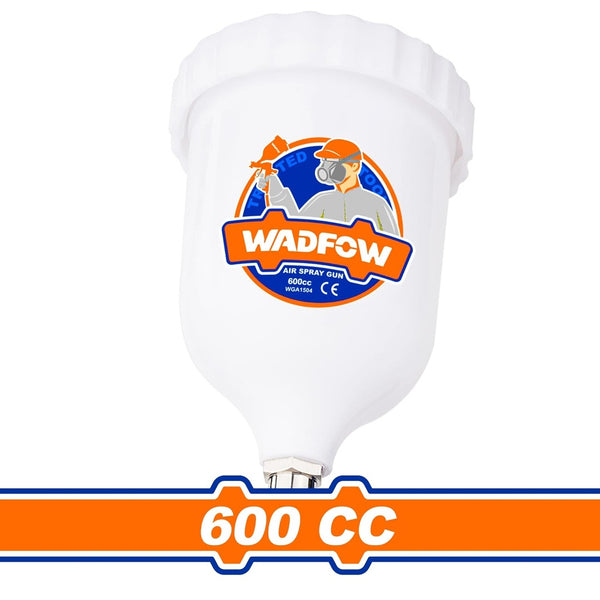

Paint Cup Capacity:600cc / 600ml
Spray Pattern Width:180–230mm
Operating Pressure:2–3.5 bar
Air Consumption:3–4.5 CFM (85–127 L/min) according to the manufacturer's specification.
Optional Nozzle Range:1.3–2.5mm, where compatible optional nozzles are available.
Application Type: Primarily designed for finishing coats.

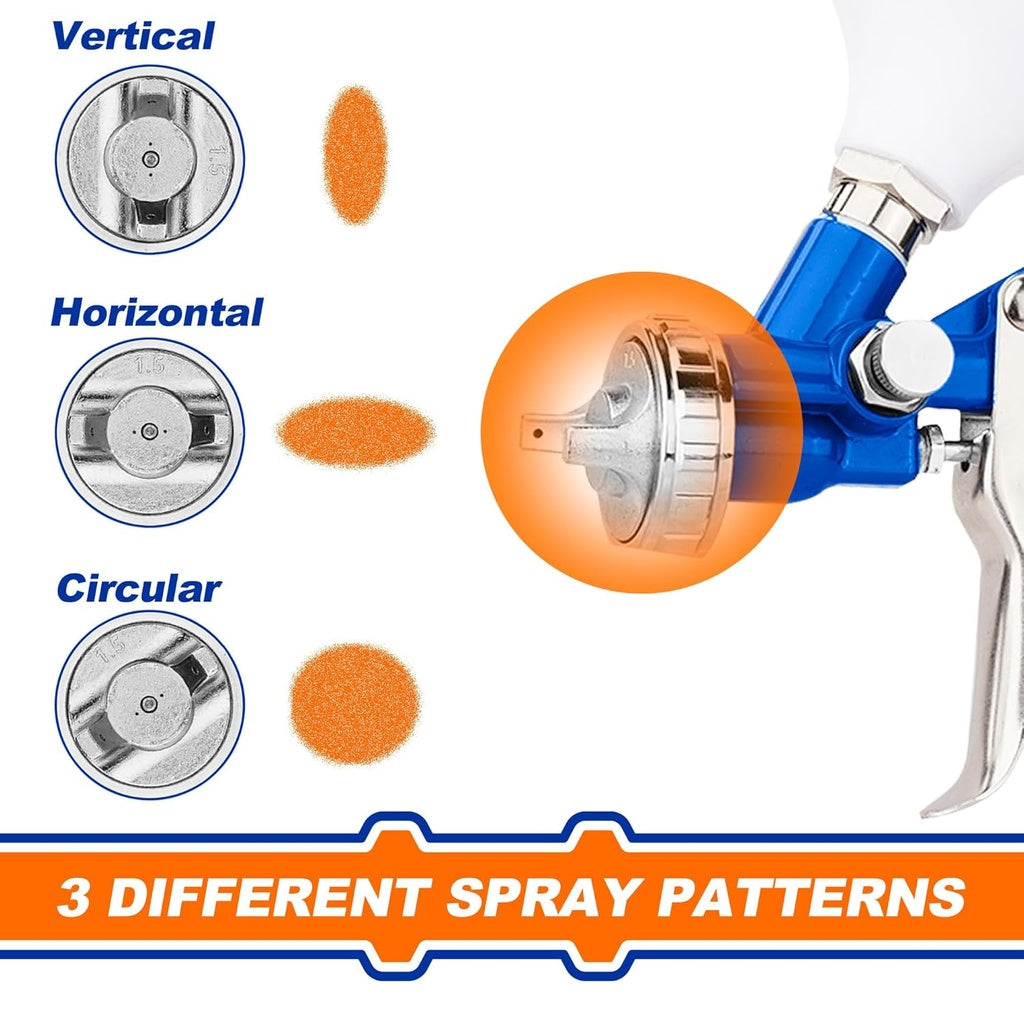

Spray Pattern: Provides a relatively broad 180–230mm pattern for efficient surface coverage.
Gravity-Fed Cup: The 600ml upper cup provides convenient material feeding and is suitable for extended painting sessions without very frequent refilling.
HVLP Design: Designed for high-volume, low-pressure spraying, helping provide controlled atomization with reduced overspray when correctly adjusted.

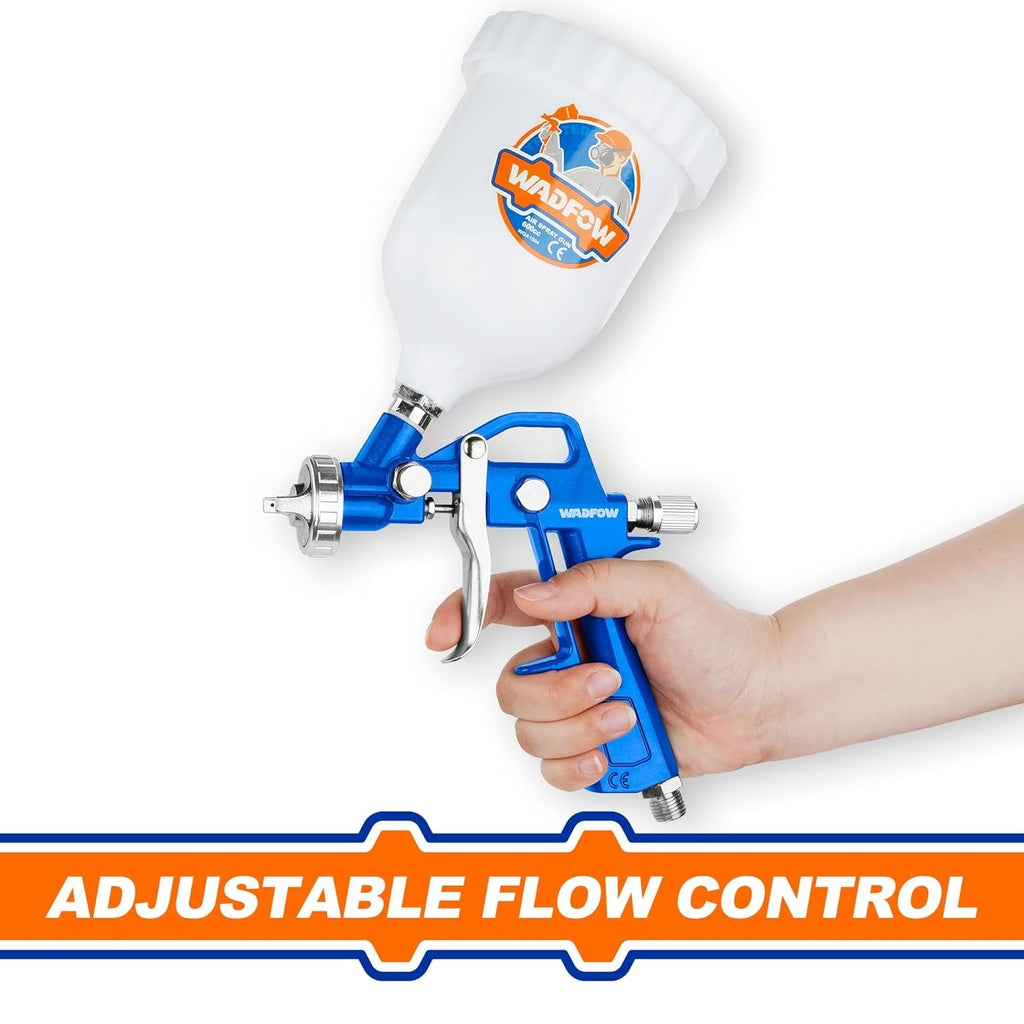

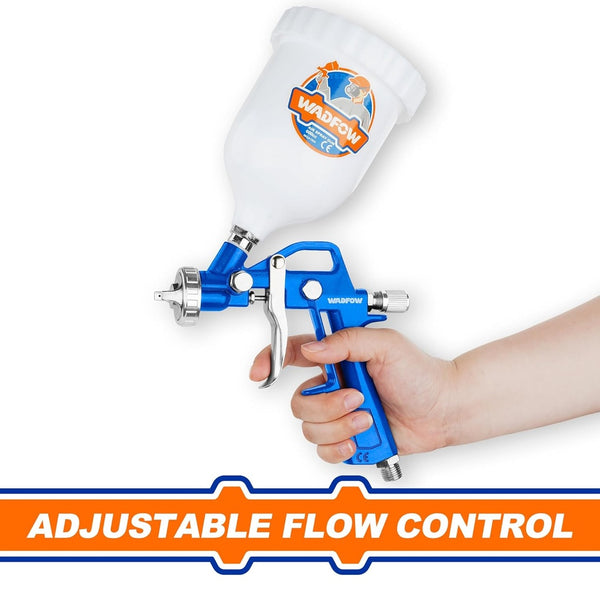

Adjustable Application: Spray settings can be adjusted according to the coating and desired finish.
Air-Powered Operation: Requires a suitable compressed-air source/air compressor.
Quick Plug: Supplied without a quick plug according to Wadfow's official specification.
Packaging:Colour box packaging.
Suitable for:Automotive panels, motorcycles, furniture, woodwork, metal fabrication, machinery, doors, gates, fixtures and general workshop painting.
Finishing Applications: Particularly suitable for top coats and finishing work where a smooth and consistent appearance is required.
Professional & DIY Use: Suitable for automotive workshops, furniture workshops, fabrication units, maintenance departments and experienced DIY users.
Compressor Requirement: The compressor should be capable of supplying the required pressure and air volume continuously for the selected coating and spray pattern.
Recommended Applications
Automotive Painting & Refinishing
Motorcycle & Scooter Parts
Furniture Painting
Woodworking & Wood Finishing
Metal Fabrication
Machinery & Equipment Painting
Doors, Gates & Window Frames
Architectural & Household Surfaces
Workshop Finishing
General Industrial Finishing
Key Benefits
1.4mm nozzle provides fine atomization for finishing applications.
600ml gravity-feed cup offers convenient paint capacity.
180–230mm pattern width helps cover panels and larger surfaces efficiently.
2–3.5 bar operating pressure supports controlled HVLP spraying.
Optional 1.3–2.5mm nozzles can provide greater application flexibility.
Suitable for professional finishing and workshop painting applications.
