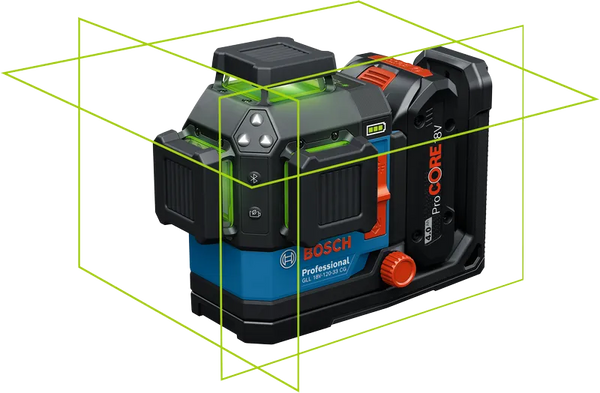

Bosch Line Laser GLL 18V-120-33 CG
Bosch Line Laser GLL 18V-120-33 CG
DESCRIPTION
-
Easily switch between 18V, 12V, and alkaline C-cell power sources to avoid downtime
-
Rubber-enforced housing and laser windows, and an IP65 rating for peace of mind on the toughest jobsites
-
Secure mounting and precise work are made easy thanks to the integrated mount with strong magnets and pivot fine adjustment
TECHNICAL DETAILS:
Tripos thread |
1/4", 5/8" |
Battery Voltage |
18.0 V, 12.0 V, 4 x 1.5 V LR14 (C) |
Laser diode |
500-540nm, <10mW |
Accuracy |
± 0.3 mm/m |
Colour of laser line |
Green |
Laser Class |
2 |
Operating Temperature |
-10 - 40°C |
Storage Temperature |
-20 - 70°C |
Weight, approx. |
1.3 Kg |
Projection |
3 x 360° line |
Working range, value |
35m |
Working range with receiver |
120m (radius) |
Power Supply |
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
Slef-levelling range |
±4° |
Levelling time |
3 s |
Dust and splash protection |
IP65 (except for the battery or battery adapter) |
Operating time (Max.) |
20 h (18V 4Ah Li-Ion), 8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode |
Compatible laser receivers |
LR 7 |
Weight with 4.0 Ah battery |
1.9 Kg |
Weight with alkaline batteries |
1.8 Kg |
