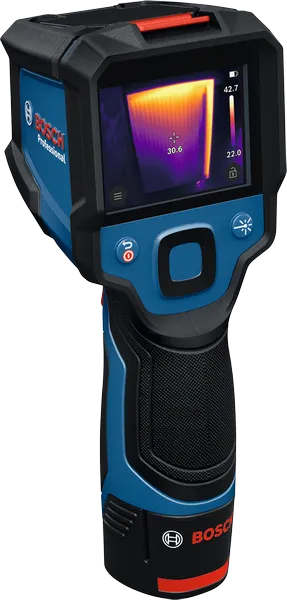

Bosch Thermal Imaging Camera GTC 450-13
Bosch Thermal Imaging Camera GTC 600C (Bare Tool)
DESCRIPTION
-
Visualise temperature differences in high image quality with just one click
-
Quick startup, integrated laser, worklight and visual camera to ensure easy use
-
Robust, compact design with IP54 rating and impact resistance from falls up to 2m
TECHNICAL DETAILS:
Battery voltage |
12.0V |
Measurement range |
-20 °C to +450 °C |
Measuring accuracy of IR |
± 2 °C (center point) |
Measuring application |
Thermal Image |
Data transfer |
USB-C® |
Thermal sensitivity (NETD) |
<=50 mK |
Size of IR sensor |
256 Pixel x 192 Pixel |
Net weight |
0.484 Kg |
Gross weight |
1.073 Kg |
Resolution |
0.1 °C |
Laser diode |
Laserclass 2, 645-660 nm |
Number of measuring points |
49,152 |
Field of view (FOV) |
56° x 42° |
Power supply and runtime |
4 x 1.5 V LR6 (AA) 4 hours, 1 x GBA 12V 8 hours |
Frame buffer (number of images) |
500 |
Memory type |
Internal memory |
Shock protection |
2m |
Dust and splash protection |
IP54 (except for the battery or battery adapter) |
Weight |
0.35Kg |
Size of display |
2.8" |
Operating temperature |
-10 - 50°C |
Storage temperature |
-20 – 50 °C
|
Focus distance, minimum |
0.5m |
Thermal image refresh rate |
9 Hz |
