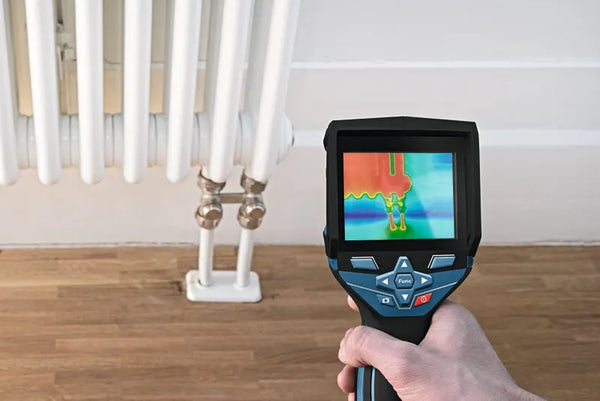

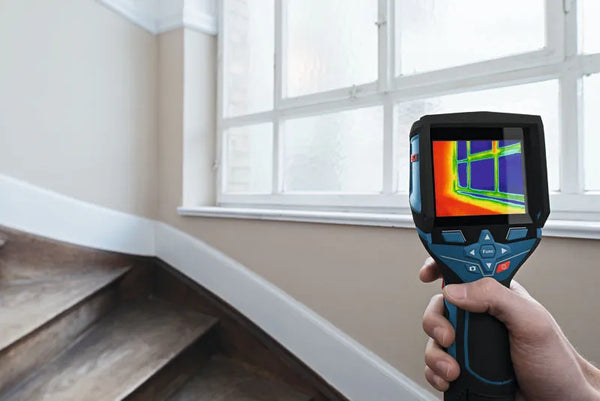

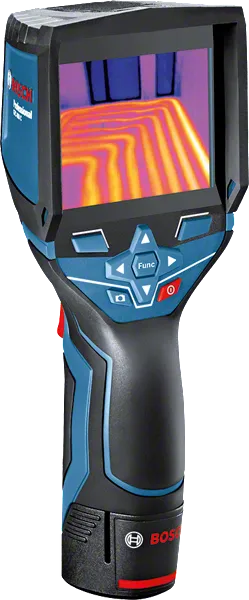

Bosch Thermal Imaging Camera GTC 400C
Bosch Thermal Imaging Camera GTC 600C (Bare Tool)
FEATURES:
-

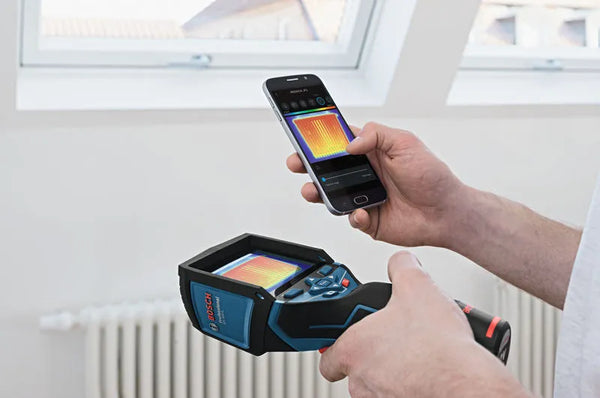

Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
-
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
-
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
TECHNICAL DETAILS:
Battery voltage |
12.0 V
|
|
Measurement range
|
-10 °C to +400 °C
|
|
Measuring accuracy of IR
|
±3.0 °C
|
|
Measuring application
|
Thermal image
|
|
Data transfer
|
MicroUSB, Wi-Fi
|
|
Thermal sensitivity (NETD)
|
<50 mK
|
|
Size of IR sensor
|
160 Pixel x 120 Pixel
|
|
Net weight
|
0.495 kg
|
|
Gross weight
|
1.177 Kg
|
|
Resolution
|
0.1°C
|
|
Number of measuring points
|
19,200
|
|
Field of view (FOV)
|
53° x 43°
|
|
Power supply and runtime
|
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
|
|
Frame buffer (number of images)
|
500
|
|
Memory type
|
Internal memory
|
|
Dust and splash protection
|
IP 53
|
|
Weight
|
0.54 Kg
|
|
Size of display
|
3.5"
|
|
Operating temperature
|
-10 – 45 °C
|
|
Storage temperature
|
-20 – 70 °C
|
|
Focus distance, minimum
|
0.3m |
