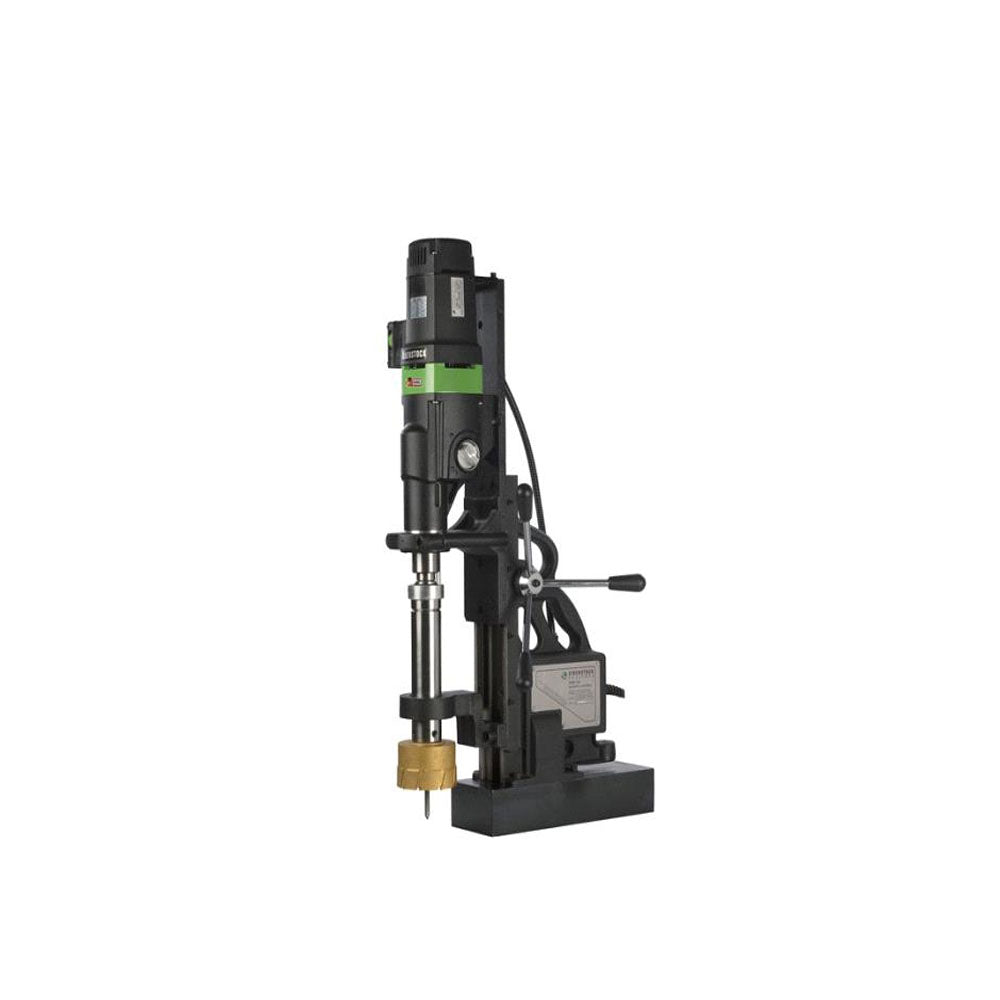

EIBEN STOCK KBM 130 MAGNETIC CORE DRILLING MACHINE
SPECIFICATIONS
MODEL
KBM 130
Rated Voltage (V)
220-240
Power Input (W)
2300
Core Drill Short Cutting Capacity 30 mm
12 to 130 mm
Core Drill Long Cutting Capacity 55 mm
12 to 100 mm
Core Drill Extra long Cutting Capacity 110 mm
20 to 120 mm
Max Core cutting Depth (mm)
110
Weight (kg)
50
Tapping Capacity
up to M42 mm
Electro Torque control
Yes
Thermal Overload Protection
Yes
Twist drilling : Capacity (Max)
O 45mm
Reaming (Max)
O 50mm
Morse taper
MT 4
Direct arbor
32 mm Weldon
DESCRIPTION
This Magnetic core drill machine remains one of the most powerful machines in the entire world for its unmatched capability to drill in steel from 12mm – 130 mm diameter in upto 110 mm steel. With MK4 spindle and 4 speed mechanical and electronic speed control motor (30-85/50-135/130-390/210-620 rpm) this machine can do extreme jobs look simple. The machine being reverse and forward, allows user to do tapping upto M42 which is truly exceptional performance.
