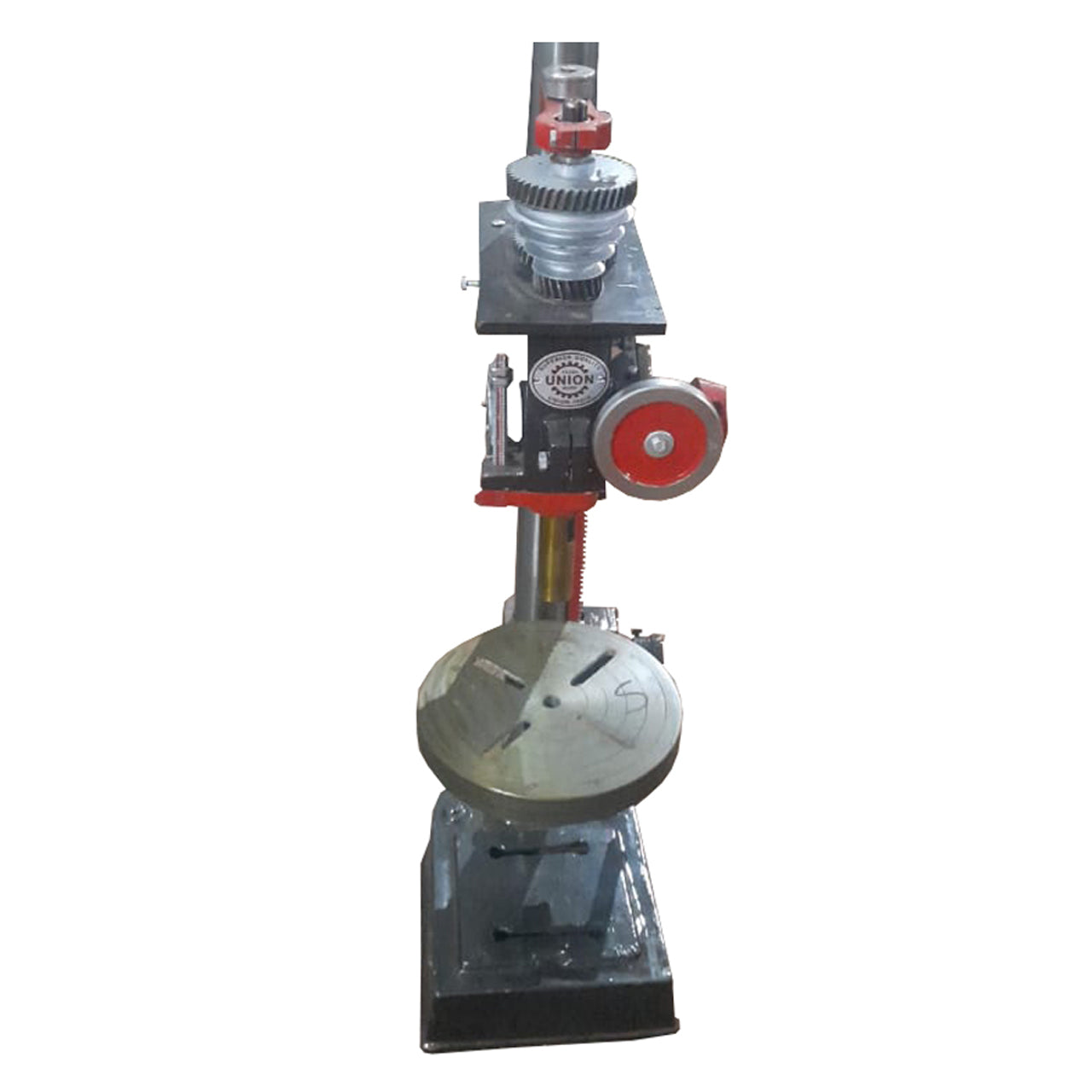

Union ITCO 3/4Inch Heavy Duty Gear Type Drilling Machine

The UNION ITCO Gear Type 3/4-inch Heavy Duty Drilling Machine is a precision-engineered industrial tool primarily used for metalworking operations such as drilling, reaming, boring, and tapping. Manufactured by the Indian Machine Tools Corporation (ITCO), these machines are known for their rigid construction and geared drive system, which provides the high torque necessary for heavy-duty tasks.

KEY FEATURES:

• Drilling Capacity: Up to 20mm in steel and 22mm in cast iron.

• Spindle Taper: Usually MT-2 (Morse Taper 2).

• Spindle Travel: Approximately 125mm.

• Speed Range: Offers 8 spindle speeds, typically ranging from 80 to 2850 RPM.

• Motor: We can use 1/2HP, 1-Phase or 1 HP, 3-phase motor.

• Column/Pillar: Heavy-section seamless steel tube, often with a 72mm diameter.
