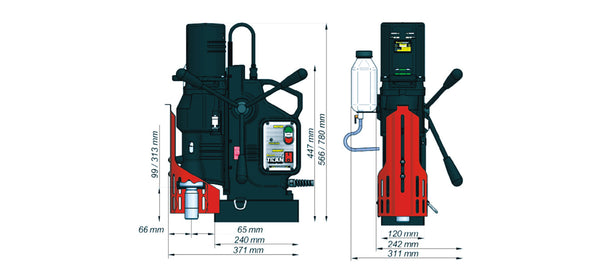

BUY MAGNETIC DRILLING MACHINE TITAN 110mm X 75mm - 85mmx100mm BEST PRICE IN INDIA

HSS Cutters
Standard Arbor with 19mm Weldon shank. Optional Arbor with 32mm Weldon shank for large Diameter Cutters

Effortless Drilling
Power Feed Mechanism minimizes efforts required in drilling large diameter holes in thick plates

Twist Drills
Quick Change Drilling Chuck with Morse Taper No. 4

Twist Drills
Morse Taper No. 4

TITAN  equipped with Morse Taper No. 4 is designed for cutting holes up to 110mm diameter using annular cutters and drilling holes up to 47mm diameter with twist drill.

Reduce manual labor through combination of hi-torque at low-speed gear setting with power-feed mechanism (Specially for large hole drilling).

Motor Power 1650W	Motor Speed (Under load) 85,135,160 or 250 rpm	Weight 31 Kg
Annular Cutter Max. Ø 111 mm	Twist Drill Max. Ø 47 mm	Countersinking Max. Ø 63 mm
Depth of Cut max. 76 mm 100 mm (up to Ø 85)	Stroke 230 mm	Magnetic Clamping 22000 N (25mm, ra=1,25)
Spindle MT4	Tapping Max. M30
