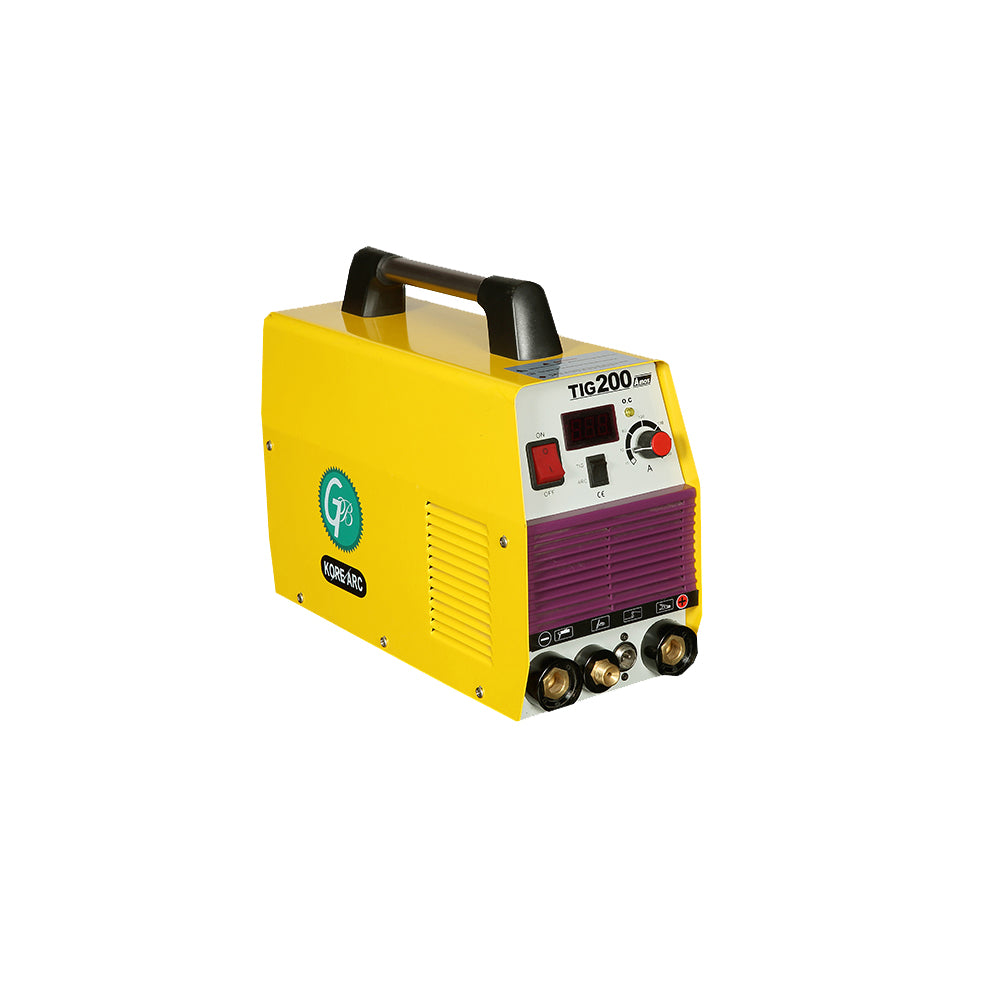

GB TIG 200 1 Phase Mosfet Welding Machine | Advanced Inverter Technology
GB TIG 200 1 Phase Mosfet Welding Machine | Advanced Inverter Technology
FEATURES:
-
Adopts “Advanced inverter technology” with high working Frequency
-
Performs dual functions I) DC MMA Arc Welding and II) TIG Welding
-
Has “Three-ply” board structure which is highly durable, reliable and easy for maintenance.
-
Provides stable welding current, can do fast TIG Spot Welding
-
Facilitates adjustment of MMA Welding Thrust
-
Has network voltage compensation, strong ability against network voltage fluctuation, Works normally at ± 15% fluctuation
-
Most efficient and “Energy Saving” – 40 to 60% over traditional welders
-
Adopts high frequency arc starting, heat arc starting and excellent arc starting.
-
Possesses good electric circuit for protection of over-voltage, over-current and over-heat.
-
Light and handy for easy portability User friendly and easy maintenance
________________________________________________________________________________________________
Applications:
-

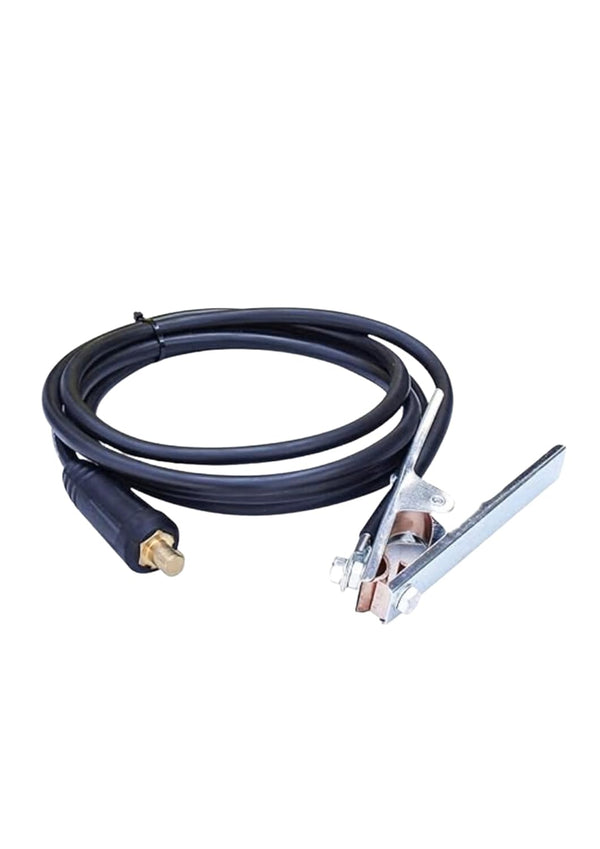

Earth Clamp with Cable
-

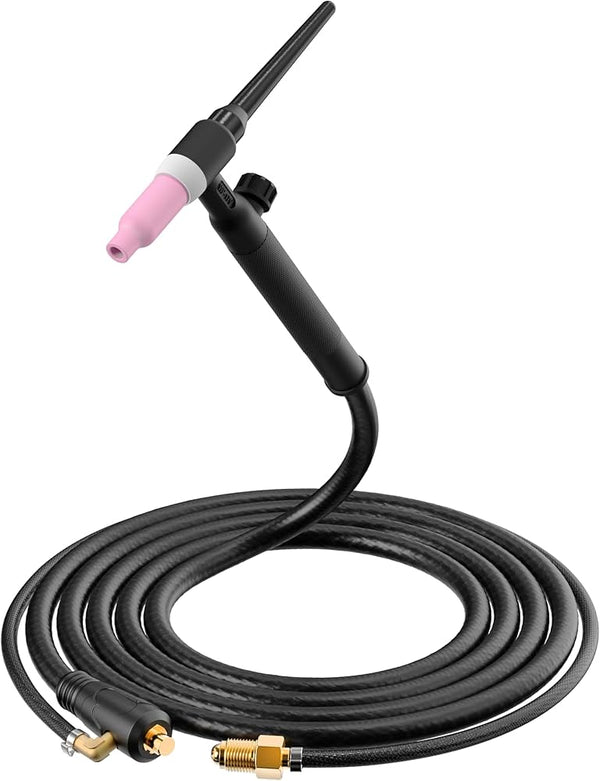

Tig Torch
________________________________________________________________________________________________
TECHNICAL SPECIFICATIONS:
Input Power Voltage (v) |
1P AC- 230 ± 15 % |
INPUT POWER CAPACITY (KVA) |
4 |
Frequency (Hz) |
50/60 |
RATED INPUT CURRENT MMA /TIG (A) |
43/28 |
No -Load Voltage (V) |
42 V |
Current Adjust Range (A) |
10 - 200 |
RATED INPUT VOLTAGE MMA /TIG (A) |
28/18 |
Duty Cycle (%) |
60 |
No -Load POWER (W) |
<100W |
ARC STARTING |
HF |
Efficiency (%) |
0.73 |
POWER FACTOR |
1P |
Insulation Class |
F |
Case Protection Degree |
Ip21 |
Weight (KG) |
10 |
Overall dimension (mm) |
375× 155× 232 |
Welding thickness (mm) MMA/TIG |
1.0-6.0/0.3-5.0 |
