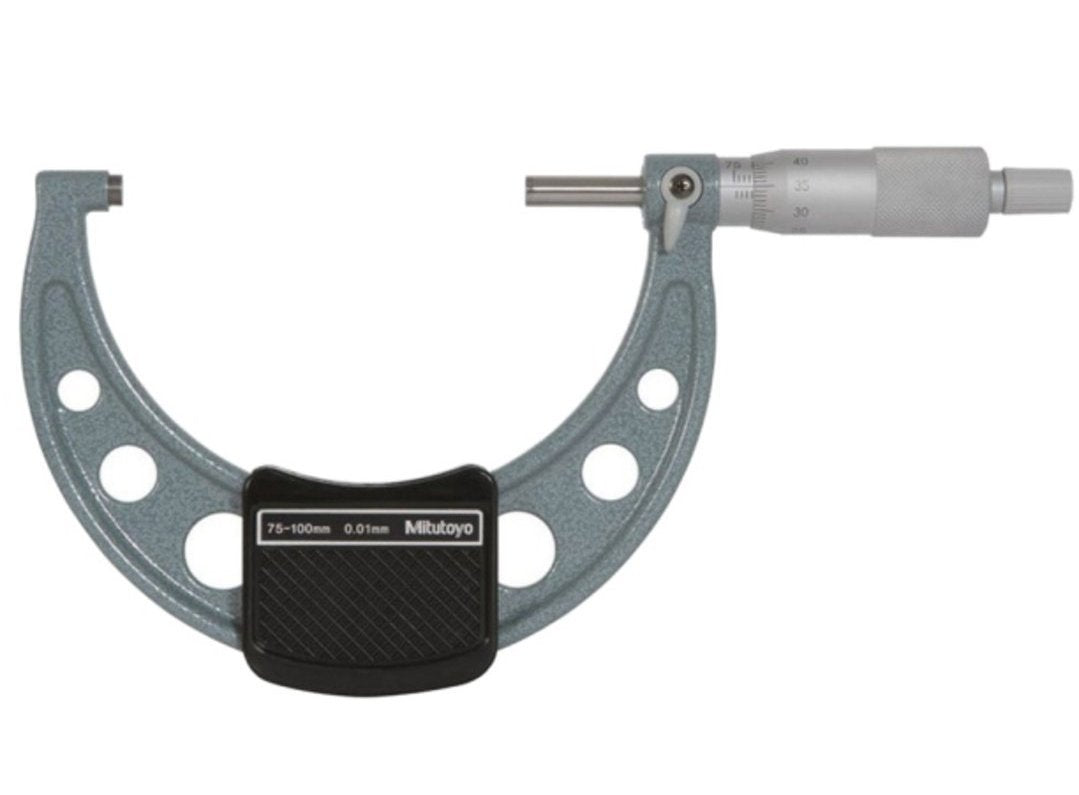

The MITUTOYO Outside Micrometer 75–100mm is a high-precision measuring instrument designed for accurate external measurement of larger components in machining, fabrication, and industrial applications. Built with Mitutoyo’s trusted engineering quality, it delivers consistent and reliable results even in demanding workshop environments.
This micrometer offers a measurement range of 75–100mm with 0.01mm graduation, making it ideal for measuring shafts, cylindrical parts, and thick materials where precision is critical. It features a ratchet stop mechanism, which ensures uniform measuring force and improves repeatability by reducing operator error.
Constructed with a hardened enamel-coated frame and carbide-tipped measuring faces, it provides excellent durability, wear resistance, and long-term accuracy. The satin chrome finish enhances readability, while the spindle lock allows secure measurement holding.
⚙️ Key Features
Range: 75–100mm
Resolution: 0.01mm
Accuracy: ±3µm (±0.003mm)
Ratchet Stop: Ensures constant measuring force
Measuring Faces: Carbide-tipped for durability
Frame: Baked enamel coated for strength
Spindle Lock: Holds measurement securely
Finish: Satin chrome for clear, glare-free reading
Weight: Approx. 375g
🛠️ Applications
Measuring external dimensions of large metal parts
