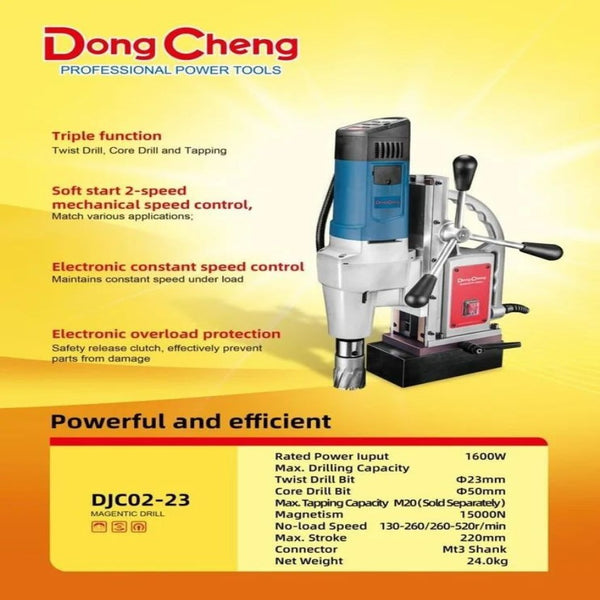

DONGCHENG 1600W Magnetic Drill Machine, 23 mm Twist Drill / 50 mm Core Drill, 15000N, MT3 (DJC02-23)-A 1600 W magnetic drill with a 15000 N magnetic base for twist drilling, core drilling, and tapping in steel.

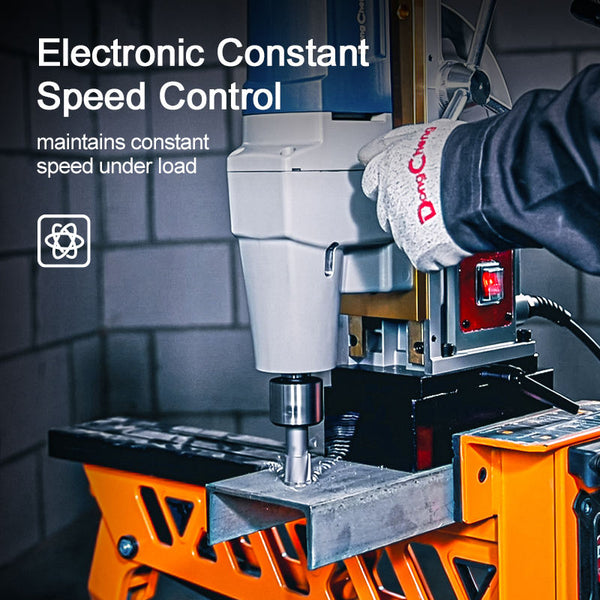

The DONGCHENG DJC02-23 Magnetic Drill clamps to steel with a 15000 N magnetic base, so you can drill accurate holes on beams, plates, pipes, and structures without a drill press. It drills up to 23 mm with a twist drill bit and up to 50 mm with a core (annular) cutter, and it also taps threads up to M20 (tapping tools sold separately). The 1600 W motor has a 2-speed mechanical gearbox (130-260 and 260-520/min) and a maximum stroke of 220 mm. Soft start, electronic constant speed control, and electronic overload protection with a safety release clutch help protect the operator and the machine. It is made for fabricators, structural steel erectors, maintenance teams, and workshops.
Key Features
1600 W motor: strong power for steel drilling
15000 N magnetic base: holds firmly on steel for safe, accurate drilling

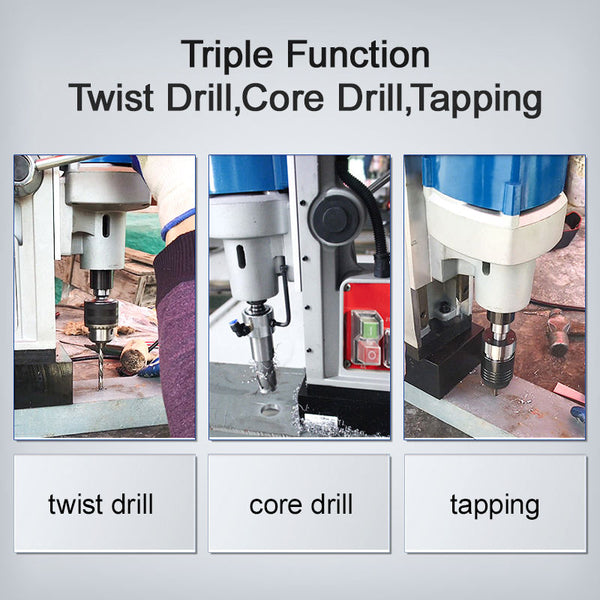

Triple function: twist drilling, core drilling, and tapping
23 mm twist drill and 50 mm core drill capacity
M20 tapping capacity: tapping tools sold separately
Safety Note: Use only on clean, flat, ferrous steel that is thick enough for the magnet to hold, and make sure the magnet is switched on before starting the motor. Always wear eye protection, ear protection, and gloves, and use the safety belt on vertical or overhead work. Keep long hair and loose clothing clear. Unplug before changing cutters or accessories, and do not use on thin or painted, rusty, or uneven surfaces without checking the hold.
