Precision Engineering for Heavy-Duty Industrial Drilling

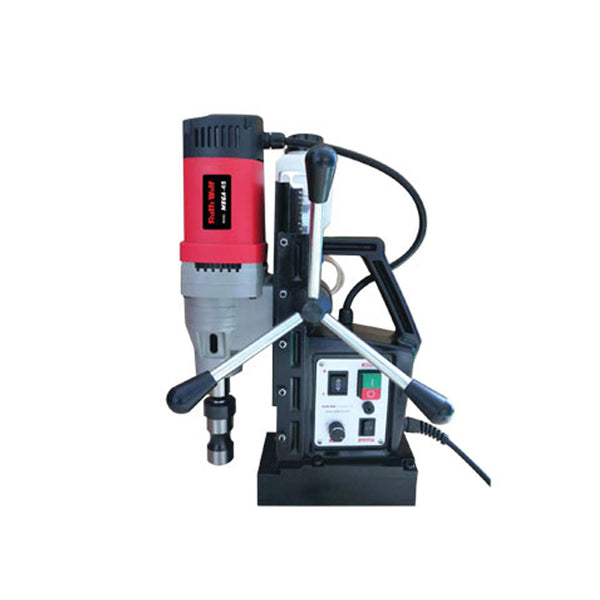

The Ralliwolf Mega 50 is a powerhouse designed for professionals who demand accuracy and durability without compromise. Featuring a robust 1400W motor, this magnetic core drill is engineered for high-performance fabrication, construction, and metalworking tasks. Whether you are core drilling, twist drilling, or tapping, the Mega 50 provides the stability and power needed for the toughest jobs.
Key Features & Benefits
-
Powerful 1400W Motor: Delivers consistent high-torque performance for smooth drilling through thick steel and alloys.
-
Variable Speed Control: Adjustable speeds from 100–470 RPM, allowing you to match the speed to the material and drill bit size for optimal results.
-
Versatile 3-in-1 Application: Supports Core Drilling (up to 50mm), Twist Drilling (up to 23mm), and Tapping (M3 to M12).
-
Superior Magnetic Adhesion: With a massive 16500N holding force, the machine remains rock-steady in horizontal, vertical, or overhead positions.
-
Reverse & Forward Operation: Built-in functionality specifically designed for efficient tapping and easy bit removal.
-
Compact & Portable: Weighing just 17kg, it’s easy to transport around the job site while maintaining industrial-grade strength.
Technical Specifications
| Feature | Specification |
| Model | MEGA 50 |
| Input Power | 1400W |
| Rated Voltage | 220V - 240V AC |
| Max Core Drilling Dia. | 50mm |
| Max Cutting Depth | 50mm |
| Max Twist Drill Dia. | 23mm |
| Tapping Capacity | M3 - M12 |
| No Load Speed | 100 - 470 RPM (Variable) |
| Magnetic Adhesion | 16500N |
| Spindle Taper | MT2 |
| Net Weight | 17 Kg |
