DONGCHENG 1520W Circular Saw, 235 mm, 84 mm Max Cutting Depth, 45° Bevel (DMY235)-A 1520 W circular saw with a 4100/min motor and an 84 mm cutting depth, for construction and woodworking.
The DONGCHENG DMY235 Circular Saw has a 1520 W motor with a no-load speed of 4100/min. The maximum cutting capacity is 84 mm, so it handles thick timber, beams, and boards in a single pass, and the base tilts to a maximum cutting angle of 45° for bevel cuts. The compact design and comfortable handle make it easy to hold and guide, and it gives accurate, efficient cuts in wood. With the right blade, it also cuts rigid plastic and thin boards. It is made for carpenters, builders, joiners, and workshops.
Key Features
1520 W motor: powerful, efficient cutting
4100/min no-load speed
84 mm max cutting capacity: cuts thick timber in one pass
45° max cutting angle: for bevel cuts

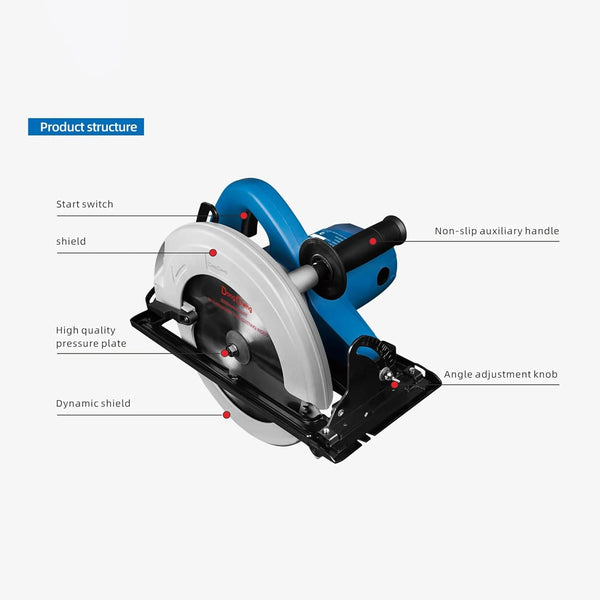

Compact design with comfortable handle
Accurate cutting: clean, straight cuts
Portable and easy to handle
7.5 kg net weight
Built for construction and woodwork
Application
Cutting timber, beams, and planks
Cutting plywood, MDF, and boards
Bevel cuts up to 45°
Cutting rigid plastic (with a suitable blade)
Construction, shuttering, and framing
Carpentry and woodworking workshops

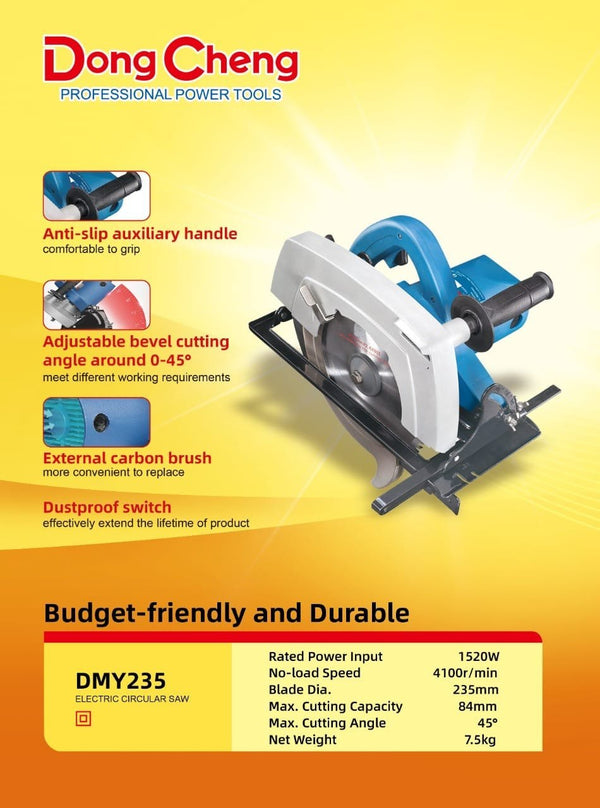

Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
DMY235
Product Type
Circular Saw
Rated Power Input
1520 W
No-load Speed
4100/min
Max Cutting Capacity
84 mm
Max Cutting Angle
45°
Net Weight
7.5 kg
Safety Note:
Wear safety glasses, ear protection, and a dust mask. Hold the saw with both hands and clamp the workpiece firmly. Keep hands clear of the blade path, and let the blade stop fully before setting the saw down. Use only blades with the right diameter, bore, and a speed rating of at least 4100/min. Unplug before changing the blade. Do not use it to cut curves, and do not cut metal or masonry without a blade made for it.
