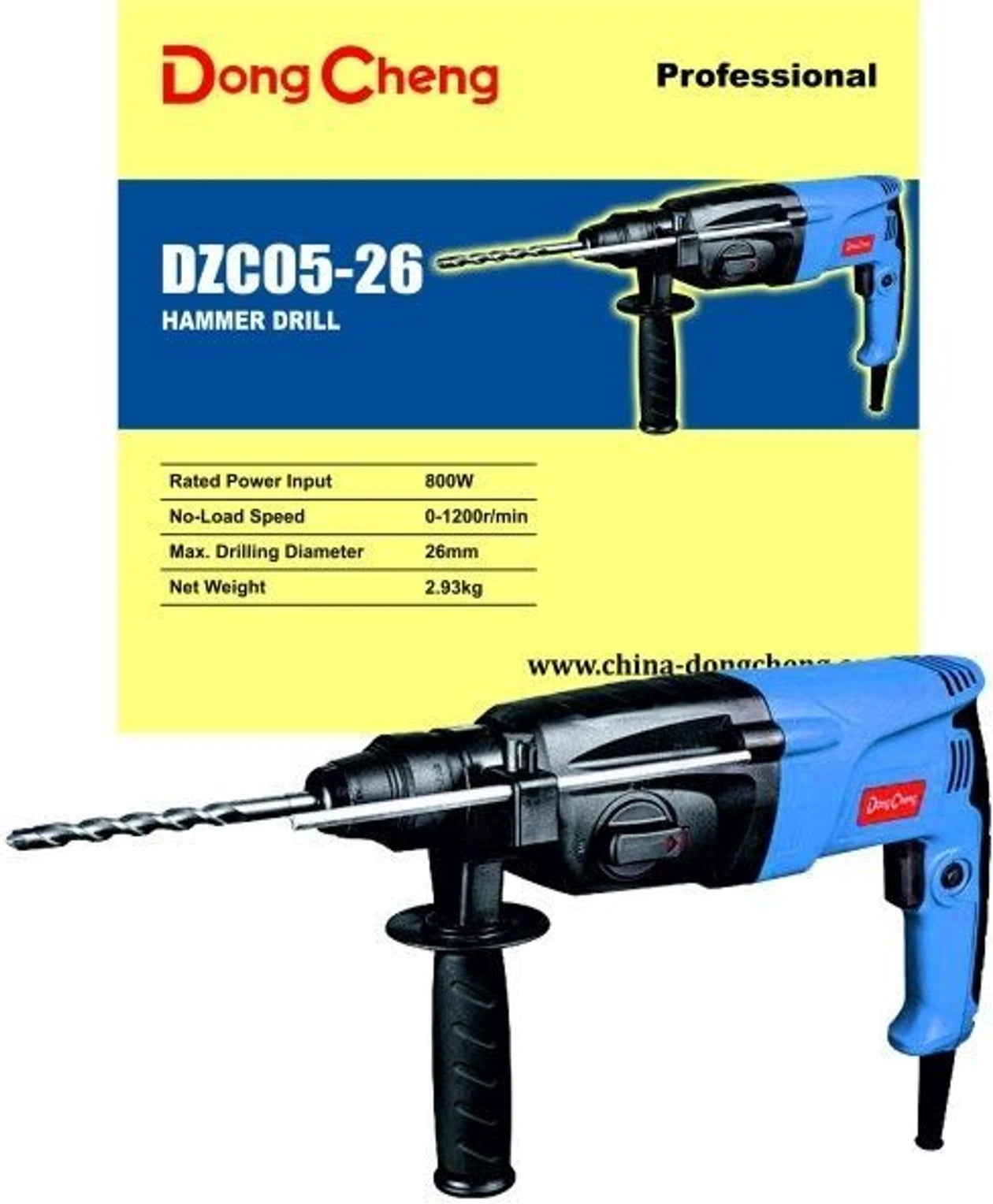

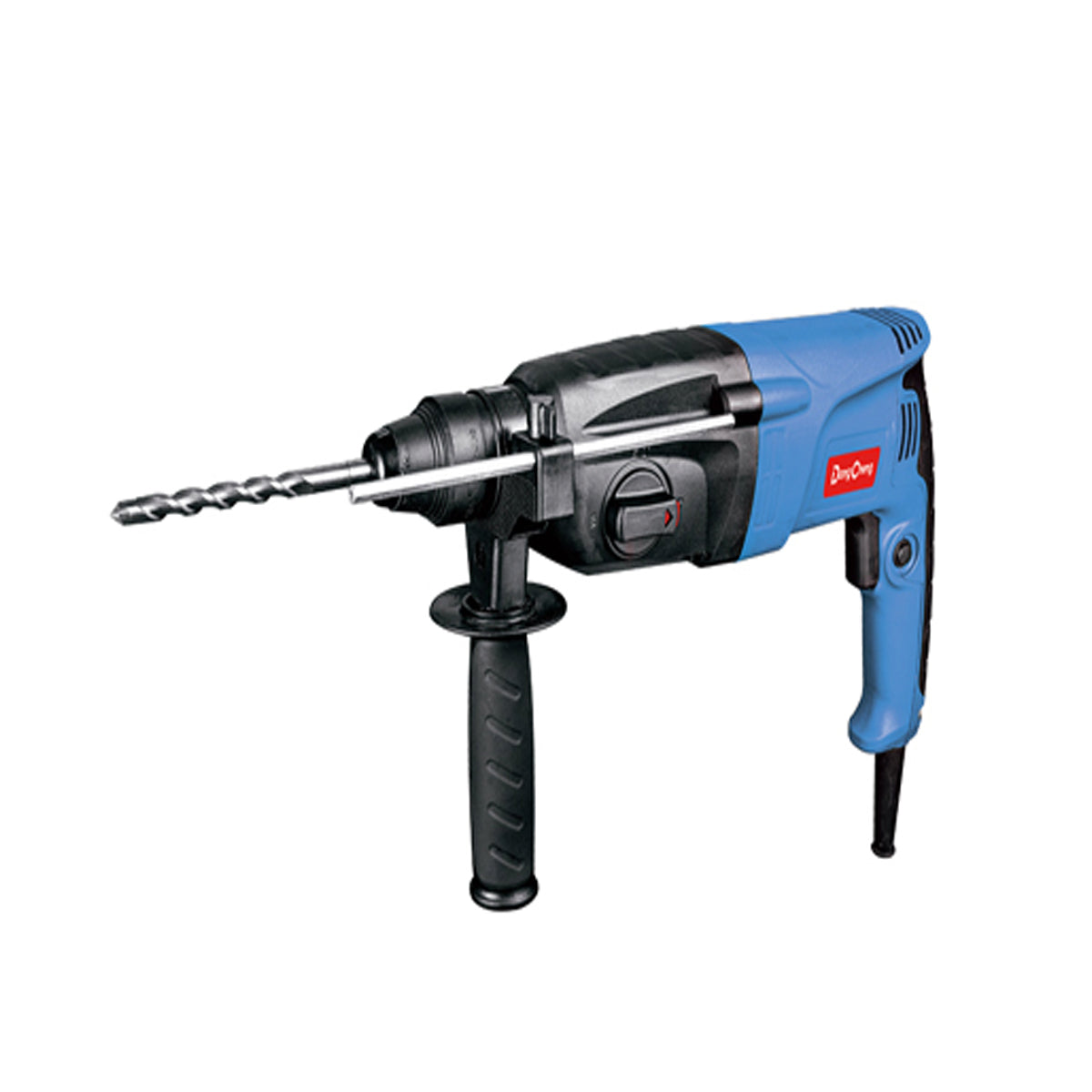

The DONGCHENG DZC05-26B Rotary Hammer has an 800 W motor and delivers 2.8 J of impact energy. It drills concrete up to 26 mm in diameter. Three modes in one tool let you switch between drilling, rotary hammer, and demolition (chiselling), so one machine covers many jobs. The adjustable speed gives you control when you start a hole, and forward/reverse rotation helps free a stuck bit. The SDS-PLUS chuck makes bit changes fast and tool-free. At 2.93 kg, it is light enough to use overhead and for long jobs. It is made for electricians, plumbers, builders, and renovators.
Key Features
800 W motor: strong power for concrete and masonry

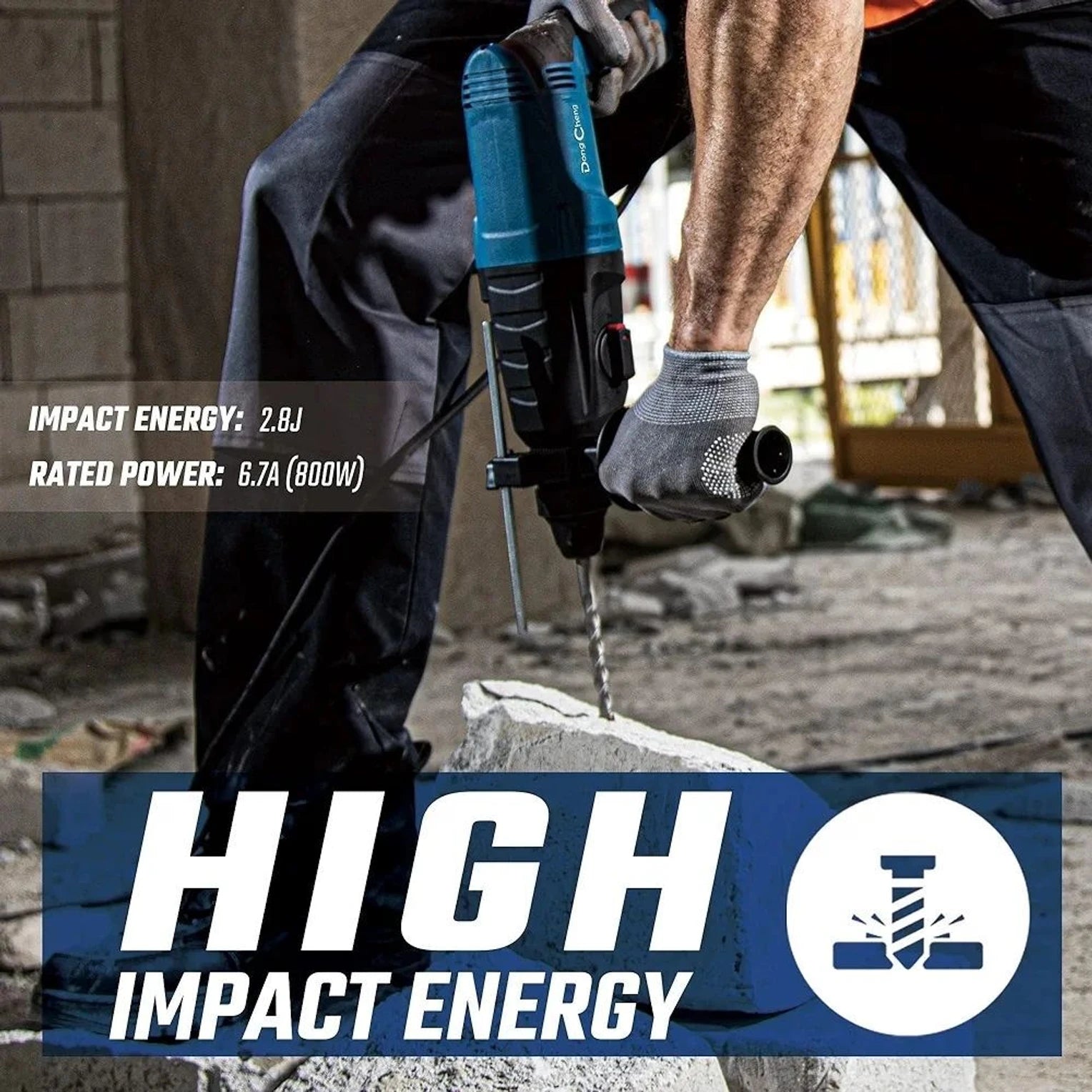

2.8 J impact energy: efficient hammering action
3-mode operation: drill, rotary hammer, and demolition
SDS-PLUS chuck: fast, tool-free bit changes
26 mm max drilling capacity in concrete
Adjustable speed: 0-1200/min no-load speed, for control when starting holes
Forward and reverse rotation
0-4000/min impact frequency
2.93 kg net weight: easy to handle for overhead and long jobs
Plastic case packing: protects the tool and keeps accessories together

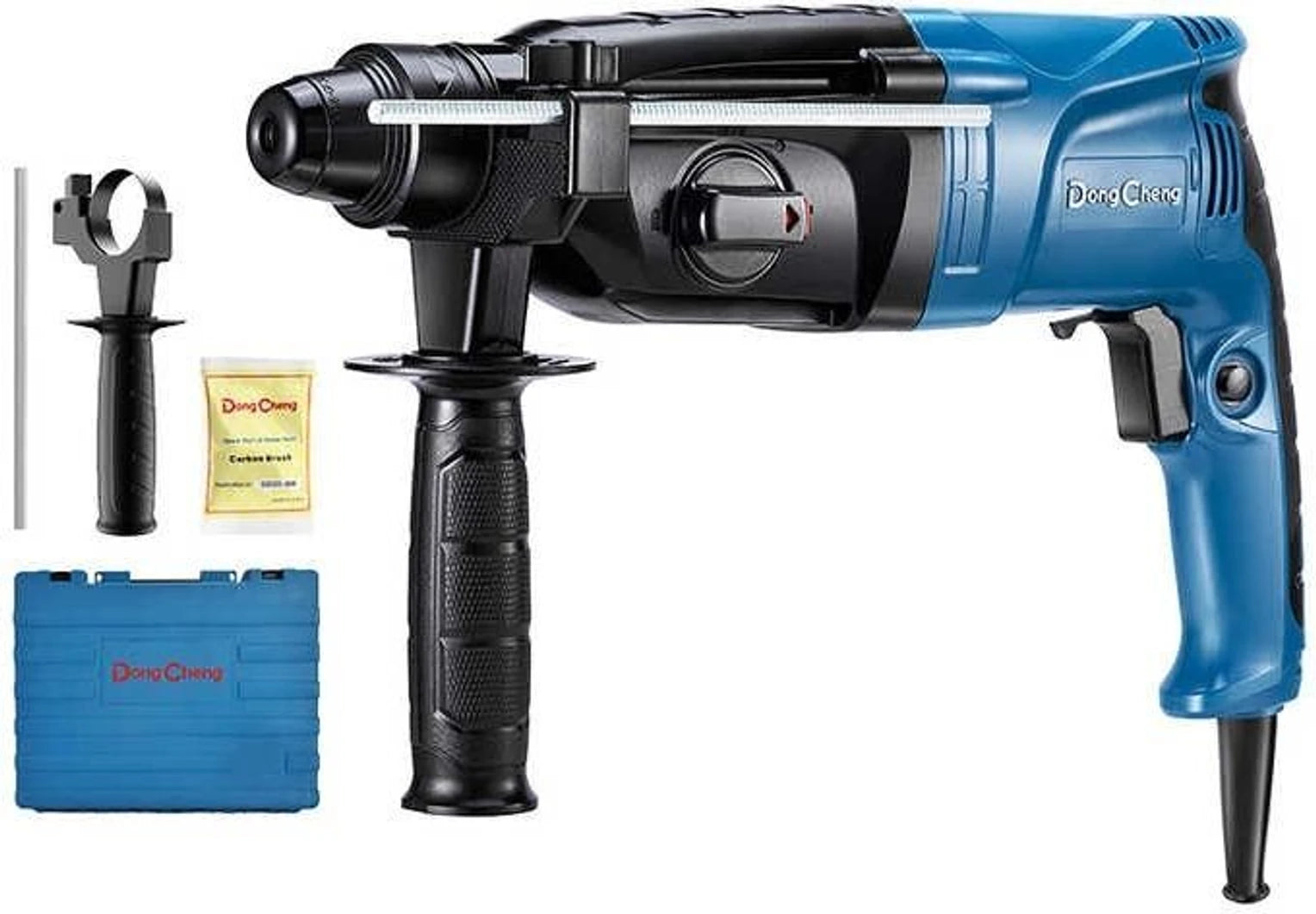

What’s in the Box
Item
Quantity
Rotary hammer
1
Auxiliary handle
1
Depth gauge
1
Carbon brush
1 set
Plastic case
1
Application
Drilling holes in concrete, brick, and masonry
Fixing anchors, bolts, and expansion plugs
Installing conduit, pipes, and cable trays
Light chiselling and demolition of plaster, tiles, and concrete
Drilling in wood and metal (with a suitable chuck adaptor and bits)
Construction, renovation, and electrical installation work

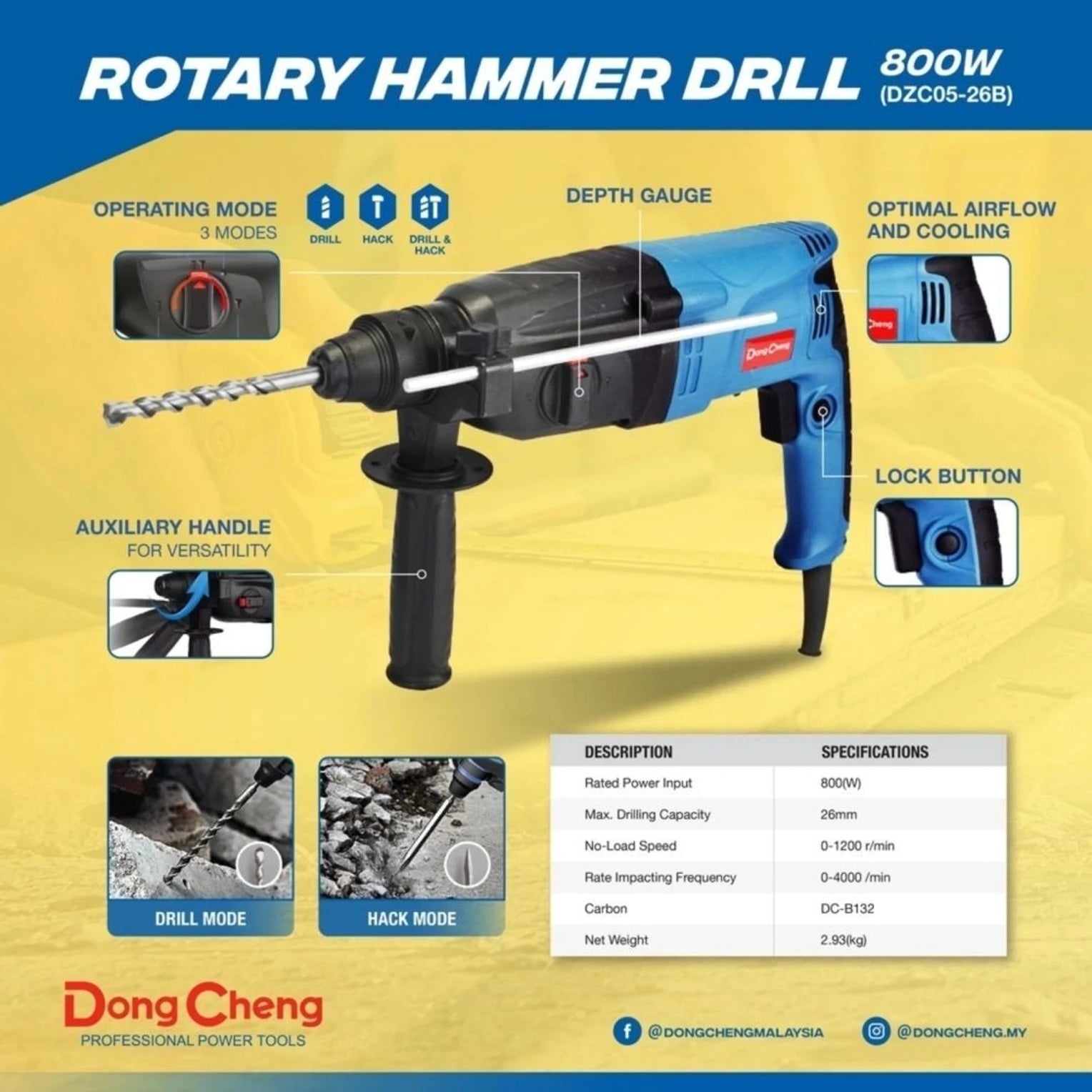

Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
DZC05-26B
Product Type
SDS-PLUS Rotary Hammer
Rated Power Input
800 W
Impact Energy
2.8 J
No-load Speed
0-1200/min
Rated Impact Frequency
0-4000/min
Max. Drilling Capacity (Concrete)
Φ26 mm
Chuck
SDS-PLUS
Modes
Drill, rotary hammer, demolition
Speed Control
Adjustable
Rotation
Forward and reverse
Net Weight
2.93 kg
Packaging
Plastic case
Safety Note: Wear safety glasses, ear protection, and a dust mask. Use the auxiliary handle for a firm two-hand grip. Check for hidden pipes and cables before drilling into walls. Select the mode with the tool switched off and the bit stopped, and unplug before changing accessories.
