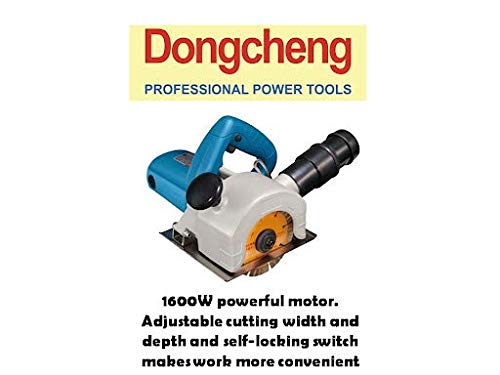

DONGCHENG 1600W Wall Chaser (Groove Cutting Machine), 110 mm Blade, 32 mm Depth, 50 mm Width (DZR110)-A 1600 W wall chaser with two 110 mm diamond discs and a dust port, for cutting clean channels in walls for cables and pipes.
The DONGCHENG DZR110 Wall Chaser has a 1600 W motor running at 10800/min and takes 110 mm diamond cutting discs. It cuts grooves up to 32 mm deep and up to 50 mm wide in brick, concrete, and masonry, which is enough for conduit, cables, and small pipes. Two dry-cut diamond discs are included. The dust collecting mouth lets you connect an external vacuum cleaner, which helps keep the work area cleaner. At 4.1 kg, it is solid and steady in use. It is made for electricians, plumbers, builders, and renovators.
Key Features
1600 W high-power motor: cuts through masonry and concrete
10800/min no-load speed
110 mm blade diameter
32 mm max cutting depth, 50 mm max cutting width: suits conduit and cable channels
Dust collecting mouth: connect an external vacuum cleaner
2 diamond cutting discs included (dry cut)
4.1 kg net weight
Colour box packing

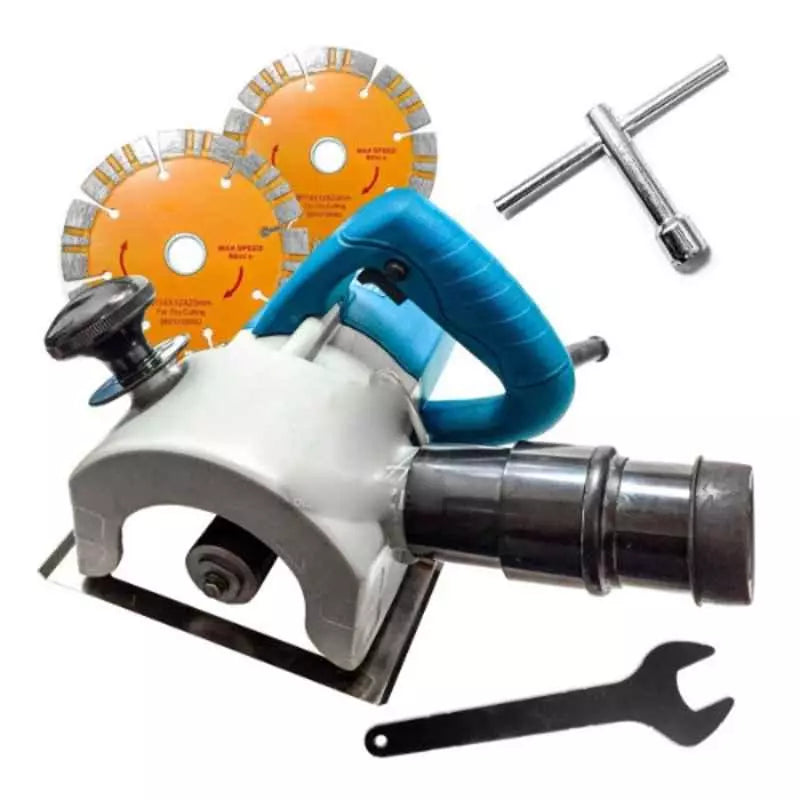

What’s in the Box
Item
Quantity
Wall chaser
1
Diamond cutting disc (dry cut)
2
Socket wrench
1
Open-end wrench
1
Carbon brush
1 set
Colour box
1
Application
Cutting channels in walls for electrical conduit and cables
Grooves for water and small pipes
Brick, block, concrete, and plaster surfaces
Electrical and plumbing installation
Renovation and construction work

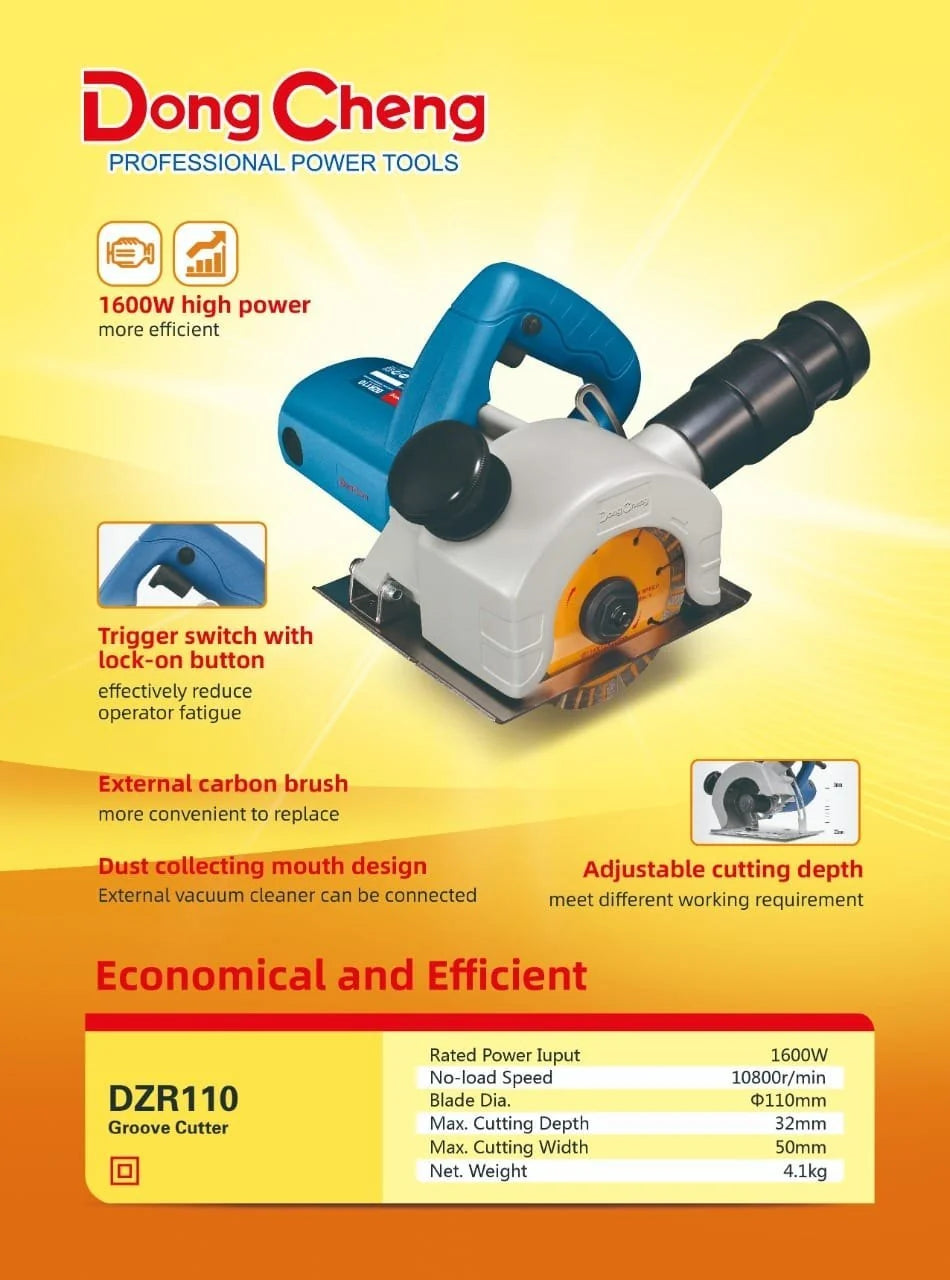

Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
DZR110
Product Type
Wall Chaser (Groove Cutting Machine)
Rated Power Input
1600 W
No-load Speed
10800/min
Blade Diameter
Φ110 mm
Max Cutting Depth
32 mm
Max Cutting Width
50 mm
Dust Port
Yes, for external vacuum cleaner
Net Weight
4.1 kg
Packaging
Colour box
Safety Note: Wear safety glasses, ear protection, and a dust mask, since cutting masonry makes harmful silica dust. Connect a vacuum cleaner where possible. Check for hidden pipes and cables before cutting. Use both hands, keep the guard in place, and unplug before changing the discs. Use only discs rated for 10800/min or higher.
