A continuity test is a fundamental procedure in electrical work to verify if a circuit or connection is complete. Using a digital multimeter for this test ensures accuracy and reliability. This guide walks you through the process, explaining its importance and how to get started.

What is a Continuity Test?

A continuity test checks if an electrical path exists between two points in a circuit. If the path is unbroken, the circuit has "continuity." This test helps identify open circuits, broken wires, or faulty components.

Why Perform a Continuity Test?

  • Troubleshooting: Detect issues in wires, fuses, and connections.
  • Safety Assurance: Ensure circuits are properly connected before powering them.
  • Component Validation: Verify the functionality of switches and other elements.

Tools Needed for the Test

  1. Digital Multimeter: Select one with a dedicated continuity mode.
  2. Test Leads: Ensure they are in good condition for accurate results.
  3. Circuit or Component: The item you wish to test must be disconnected from any power source.

Steps for Conducting a Continuity Test

  1. Set the Multimeter:

    • Turn the dial to the continuity mode (often symbolized by a sound wave or diode icon).
    • If your multimeter lacks this mode, set it to the lowest resistance setting.
  2. Check the Multimeter:

    • Touch the test leads together.
    • You should hear a beep (if your multimeter has an audible indicator) or see a reading close to zero on the display.
  3. Prepare the Circuit/Component:

    • Ensure the item is powered off and isolated from the circuit.
    • For safety, discharge any capacitors.

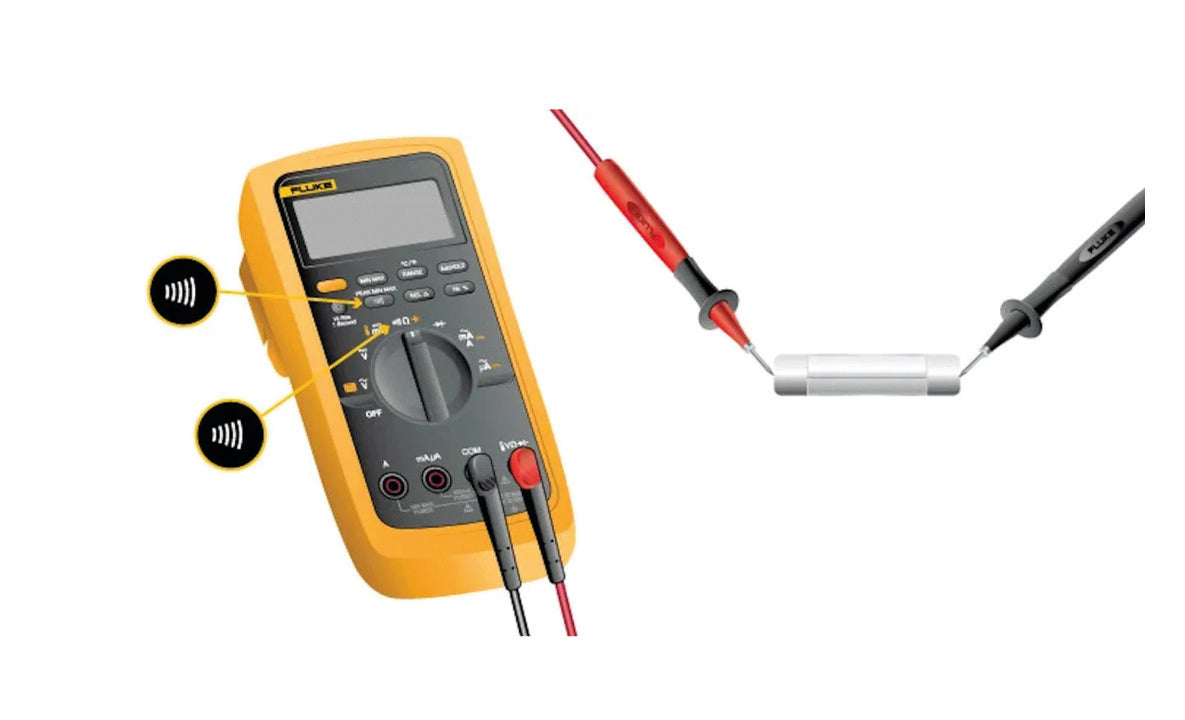

  4. Test for Continuity:

    • Place one test lead on each end of the circuit or component.
    • Listen for a beep or observe the display.
      • Beep or Zero Reading: Indicates continuity.
      • No Beep or High Reading: Indicates an open circuit.

Tips for Accurate Testing

  • Inspect Test Leads: Damaged leads can give false results.
  • Avoid Contact with Bare Hands: It can interfere with the readings.
  • Test in a Safe Environment: Ensure the workspace is free from live wires.

Applications of Continuity Testing

  1. Checking Wires and Cables: Identify breaks or damage.
  2. Testing Switches: Ensure the switch opens and closes circuits properly.
  3. Diagnosing Appliances: Spot faulty internal connections.

Common Mistakes to Avoid

  • Testing a live circuit (can damage the multimeter or harm the user).
  • Using the wrong multimeter setting.
  • Overlooking component isolation, which may result in inaccurate readings.

Conclusion

A digital multimeter is an invaluable tool for continuity testing. By following the proper steps and safety precautions, you can easily identify circuit issues and maintain electrical systems efficiently. With regular practice, you'll build confidence in diagnosing and repairing electrical components effectively.
