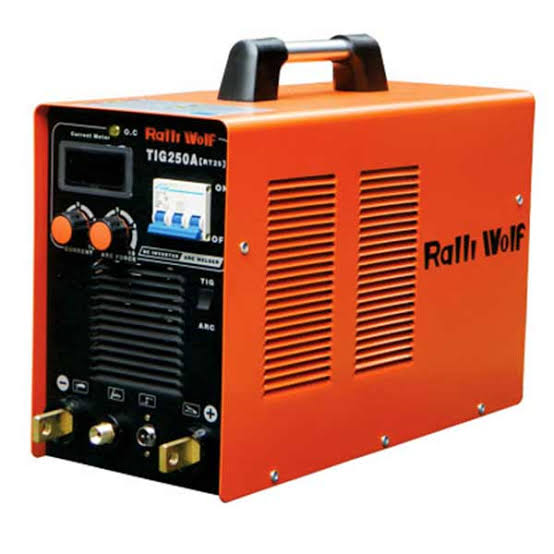

The Ralli Wolf RT25 TIG 250A is a compact, three-phase DC inverter welding machine designed for light and medium fabrication applications. It combines TIG and MMA welding functions in a single unit, providing flexibility for precision welding and general metalworking tasks.
Featuring MOSFET inverter technology and high-frequency ignition, the RT25 supports reliable arc starting and stable welding performance. Its gas post-flow function helps protect the tungsten electrode and weld area after welding, while the arc-force facility supports MMA welding performance.
Operating on a 415V three-phase power supply, this machine is suitable for fabrication workshops, pipe welding, pressure vessel work, construction and industrial maintenance.
Key Features
250A DC TIG inverter welding machine
TIG and MMA dual welding functions
MOSFET inverter technology
High-frequency ignition for reliable arc starting
Adjustable output current from 10A to 250A
Gas post-flow function
Arc-force facility for MMA welding
Stable DC welding output
60% duty cycle
Compact design weighing approximately 17.5 kg
415V three-phase power supply
Suitable for light and medium fabrication work
Applications
Light and medium metal fabrication
Stainless steel and mild steel welding
Pipe and pressure vessel welding
Construction and structural metalwork
Engineering workshops
Industrial maintenance and repair
Automobile and railway component fabrication
General TIG and MMA welding tasks
Technical Specifications
Specification
Details
Brand
Ralli Wolf
Model
RT25
Product Type
TIG 250A
Welding Type
DC TIG / MMA
Input Voltage
AC 415V ±15%
Phase
Three Phase
Frequency
50/60 Hz
Rated Input Current
9.0 / 13.0 A
Rated Input Power
9.5 kVA
No-Load Voltage
70 V
Output Current Range
10–250 A
Rated Output Voltage
30 V
Duty Cycle
60%
No-Load Loss
40 W
Efficiency
85%
Power Factor
0.93
Gas Pre-Flow
0 seconds
Gas Post-Flow
2.5 seconds
Arc Starting Method
High Frequency
MMA Function
Available
Inverter Technology
MOSFET
Approximate Net Weight
17.5 kg
Package Details
Ralli Wolf RT25 TIG 250A welding machine
TIG torch cable
MMA electrode holder cable
Earthing clamp and cable, subject to the supplied package
