Ralli Wolf RW-CV35-3M 35mm Concrete Vibration Rod | 1100W Motor | 3 Metre Heavy-Duty Concrete Vibrator Shaft | 4400 RPM
Availability:Out of stock
Have a question?

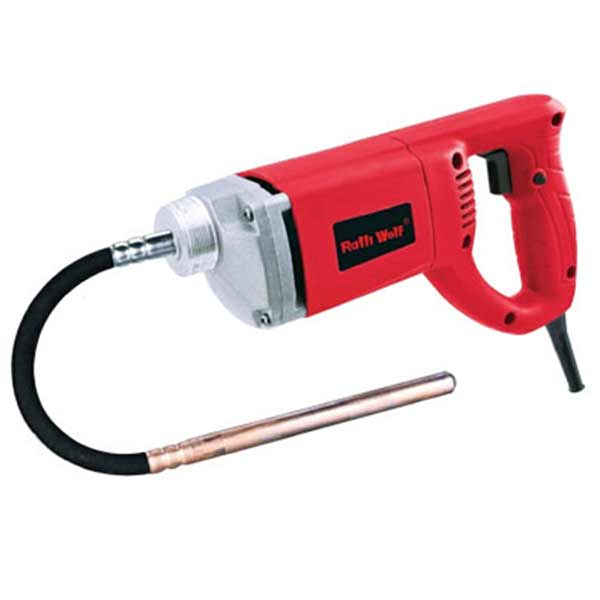

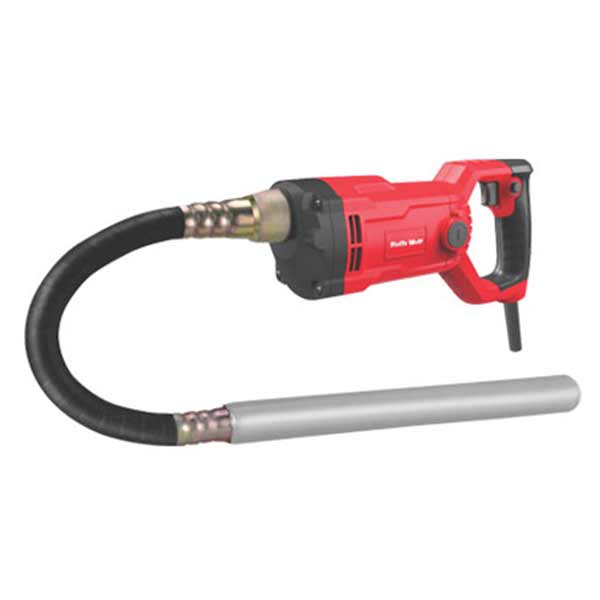

The Ralli Wolf RW-CV35-3M 35mm Vibration Rod is designed for efficient concrete compaction and consolidation at construction sites. Powered by a 1100W, 100% copper motor, it delivers a high operating speed of 4400 RPM to help remove trapped air pockets from freshly poured concrete and achieve a dense, strong concrete structure.
Featuring a 35mm diameter vibrating rod with a 3-metre length, this machine provides extended working reach for concrete slabs, beams, columns, foundations and other reinforced concrete applications.
The unit features an aluminium gearbox for durability, a long-life output shaft and double-insulated construction. Its ergonomic soft-grip design and rear D-handle provide improved handling and operating stability.
Key Features
-
1100W powerful motor for efficient concrete compaction.
-
100% copper motor for reliable performance and durability.
-
35mm vibration rod diameter for effective concrete consolidation.
-
3-metre vibration rod length for extended working reach.
-
4400 RPM no-load speed for high-speed vibration.
-
Aluminium gearbox for long service life.
-
Long-life output shaft for dependable operation.
-
Quick-change carbon brush system for convenient maintenance.
-
Ergonomic soft-grip design for comfortable operation.
-
Rear D-handle for improved stability and safety.
-
Double-insulated construction for electrical protection.
-
Efficient motor ventilation system for reliable operation.
Applications
-
Concrete compaction and consolidation.
-
Removing trapped air pockets from freshly poured concrete.
-
Foundation and footing concreting.
-
Concrete slab and floor construction.
-
Beam and column concreting.
-
Reinforced concrete construction.
-
Building and infrastructure projects.
-
Civil engineering and construction applications.

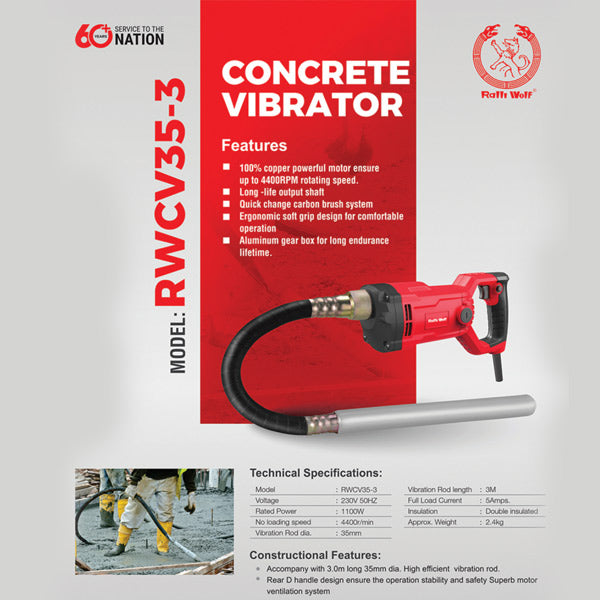

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ralli Wolf |
| Model | RW-CV35-3M |
| Product Type | Concrete Vibration Rod |
| Rated Power | 1100W |
| Voltage | 230V AC |
| Frequency | 50Hz |
| No-Load Speed | 4400 RPM |
| Vibration Rod Diameter | 35mm |
| Vibration Rod Length | 3 Metres |
| Full Load Current | 5A |
| Motor Type | 100% Copper Motor |
| Gearbox | Aluminium |
| Insulation | Double Insulated |
| Approx. Weight | 2.4 kg |
Size/Model-wise Table
| Model | Power | Rod Diameter | Rod Length |
|---|---|---|---|
| RW-CV35-3M | 1100W | 35mm | 3M |
