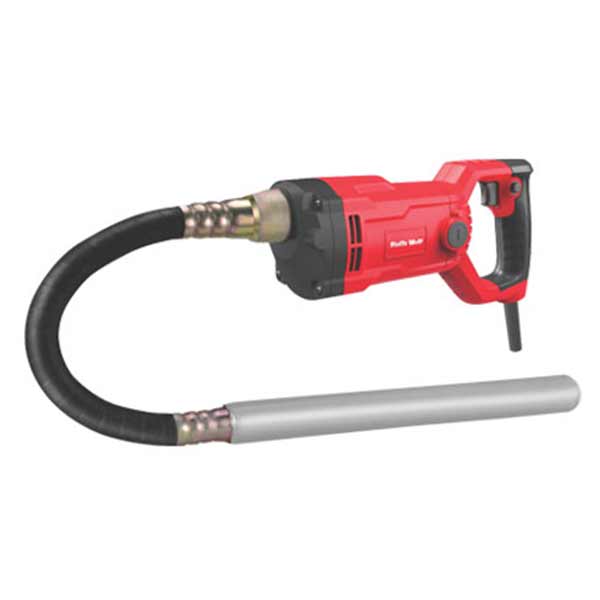

The Ralli Wolf RWCV35-3 Concrete Vibrator is a powerful construction tool designed for efficient concrete compaction and consolidation. Equipped with a 1100W, 100% copper motor, it delivers a no-load speed of 4400 RPM to help remove trapped air pockets from freshly poured concrete and achieve a dense, strong concrete structure.
The machine comes with a 35mm diameter and 3-metre-long vibration rod, providing extended reach for concrete slabs, beams, columns, foundations and other construction applications.
Its aluminium gearbox, long-life output shaft and quick-change carbon brush system are designed for durability and convenient maintenance. The ergonomic soft-grip handle and rear D-handle provide improved handling and operating stability. Double-insulated construction adds electrical protection.
Key Features
-
1100W powerful motor for efficient concrete compaction.
-
100% copper motor designed for reliable performance.
-
4400 RPM no-load speed for effective vibration.
-
35mm vibration rod diameter for concrete consolidation.
-
3-metre rod length for extended working reach.
-
Aluminium gearbox for long service life.
-
Long-life output shaft for dependable operation.
-
Quick-change carbon brush system for easier maintenance.
-
Ergonomic soft-grip design for comfortable handling.
-
Rear D-handle for improved stability and operating control.
-
Double-insulated construction for electrical protection.
Applications
-
Compacting freshly poured concrete.
-
Removing trapped air pockets from concrete.
-
Concrete slab and floor construction.
-
Foundation and footing concreting.
-
Beam and column concreting.
-
Reinforced concrete construction.
-
Building and infrastructure projects.
-
Civil engineering and construction work.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ralli Wolf |
| Model | RWCV35-3 |
| Product Type | Concrete Vibrator |
| Rated Power Input | 1100W |
| Voltage | 230V AC |
| Frequency | 50Hz |
| No-Load Speed | 4400 RPM |
| Vibration Rod Diameter | 35mm |
| Vibration Rod Length | 3 Metres |
| Full Load Current | 5A |
| Motor Type | 100% Copper Motor |
| Gearbox | Aluminium |
| Insulation | Double Insulated |
| Approx. Net Weight | 2.4 kg |
Size/Model-wise Table
| Model | Motor Power | Rod Diameter | Rod Length |
|---|---|---|---|
| RWCV35-3 | 1100W | 35mm | 3M |
