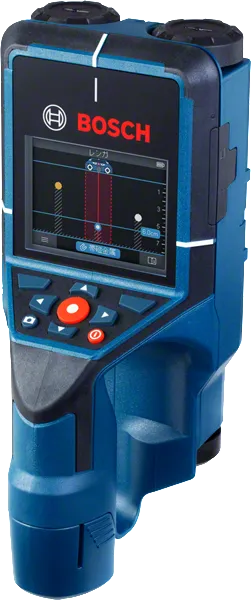

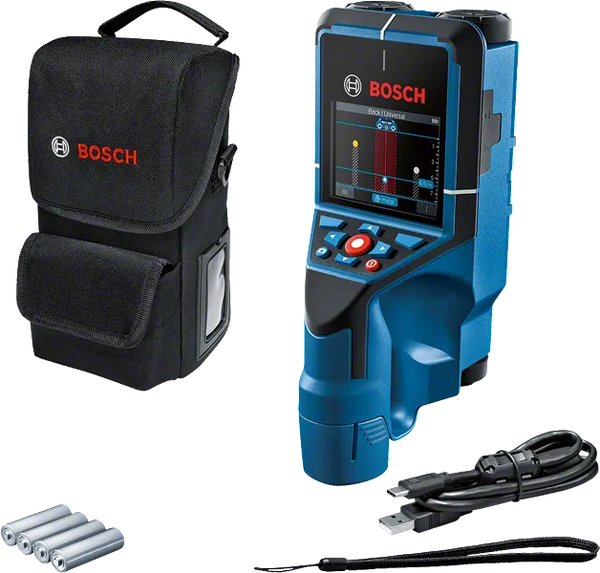

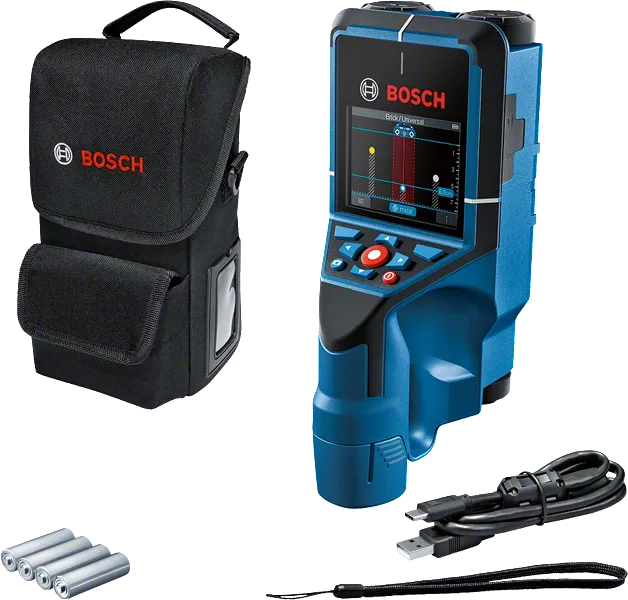

Bosch Detector D-Tect 200 C
Bosch Detector D-Tect 200 C
DESCRIPTION
-
More depth for better safety - Increased maximum detection depth to 200mm with object depth indication
-
All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode
-
See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI
TECHNICAL DETAILS:
Dust and splash protection |
IP 5X |
Bosch Radar Technology |
Yes |
Max. detection depth |
200 mm |
Data Transfer |
Micro-SD Card, USB-C® |

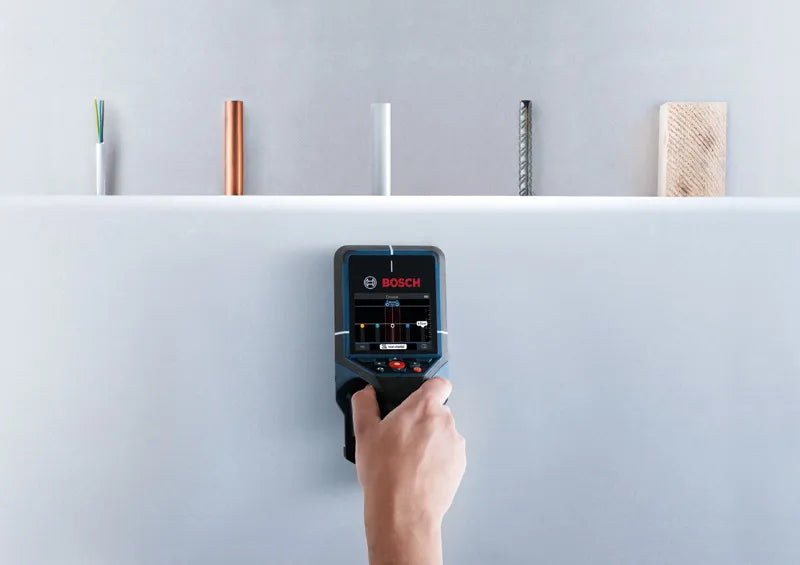

Detectable objects |
Magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes |
Detection depth, dry concrete, max. |
200 mm |
Detection depth, early age concrete, max. |
60mm |
Detection depth, other wall types, max. |
80 mm |
Detection depth, magnetic metal, max. |
200 mm |
Detection depth, non-magnetic metal, max. |
80 mm |
Detection depth, live cables, max. |
80 mm |
Detection depth, wooden substructures, max. |
38 mm |
Accuracy |
±5 mm
|
Views |
Object view, Spot view, Signal View, Signal View 2D
|
|
Wall types
|
Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating |
|
Documentation via
|
USB-C, SD-Card
|
Updatable |
Yes |
|
Material identification
|
Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
|
Power Supply |
12 V Li-Ion battery, 10.8 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
Weight, approx. |
0.64 Kg |
Additional function |
Leakage detection, distance measurement |
