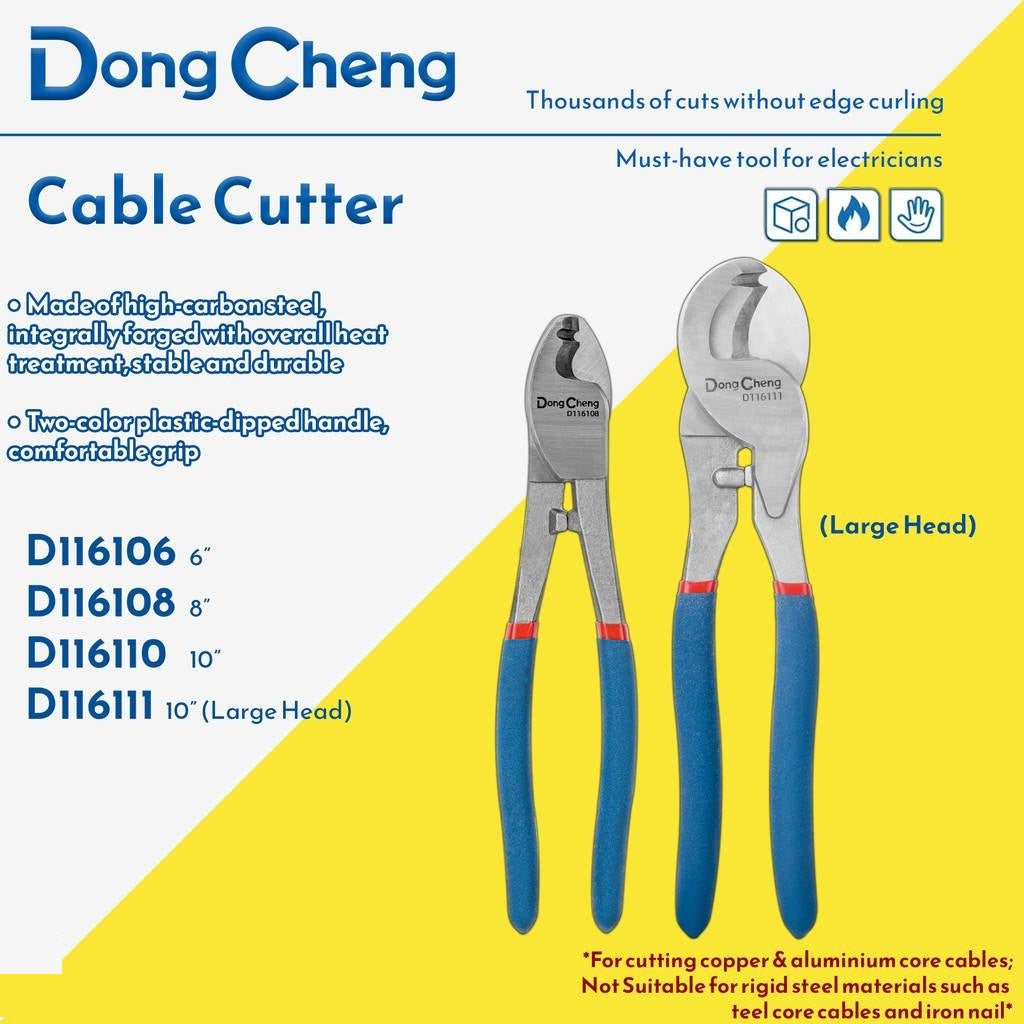

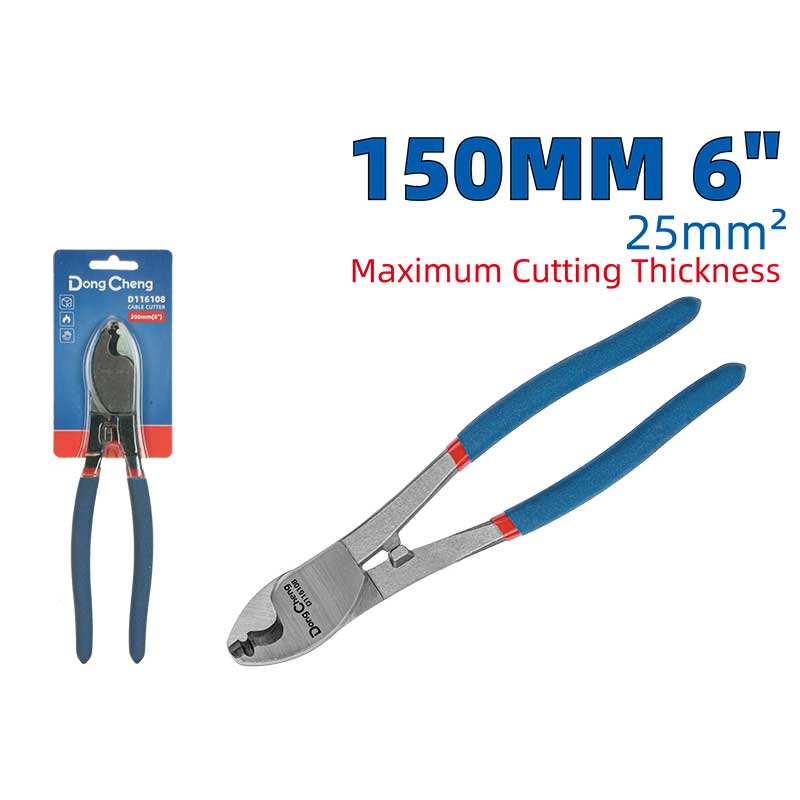

DongCheng 6" Cable Cutter 25mm² (HD116106)

Product Code:

Availability:Out of stock

The DongCheng HD116106 6" (150mm) Cable Cutter is designed for electricians, utility contractors, and maintenance technicians requiring clean cuts on electrical cables. Forged from premium 55# high-carbon steel and heat-treated, its precision-machined shearing blades resist edge deformation under heavy use.

Featuring curved shear-action jaws, it cups the cable during the cut to prevent core fraying, flattening, or jagged strands. With a cutting capacity of up to 25mm², it cleanly slices through copper and aluminum conductors. The ergonomic two-color handles provide comfortable, non-slip grip traction. Supplied in a protective half double blister pack.

Key Features

  • Drop-Forged 55# Carbon Steel: High-carbon alloy steel ensures edge hardness and long cutting life.
  • 25mm² Shearing Capacity: Slices through single-core and multi-strand copper and aluminum cables up to 25mm².
  • Curved Shear Jaws: Scissor-action design prevents cable deformation, providing clean, square ends ready for terminals.
  • Compact 150mm (6") Frame: Fits comfortably in technician pouches and operates easily in crowded junction boxes.
  • Two-Color Ergonomic Grips: Cushioned sleeves reduce hand strain and prevent slipping.
  • Half Double Blister Pack: Protective packaging keeps cutting jaws secure during transit.

Applications

  • Cutting residential and commercial copper and aluminum wiring
  • Distribution board wiring, panel building, and conduit pull trimming
  • Automotive battery cables, grounding wires, and marine electrical repairs
  • Telecom, network trunking, and electrical construction work

Technical Specifications

Parameter Specification
Brand DongCheng
Model Number HD116106
Tool Type Manual Shear-Action Cable Cutter
Overall Length 6 Inch / 150 mm
Blade Material 55# Carbon Steel
Max Cutting Area 25 mm²
Applicable Conductors Copper and Aluminum Electrical Cables
Packaging Type Packed by half double blister

Size/Model-wise Table

Model Size / Length Material Max Cutting Area Conductor Compatibility Packaging
HD116106 6" / 150 mm 55# Carbon Steel 25 mm² Copper & Aluminum Half Double Blister
