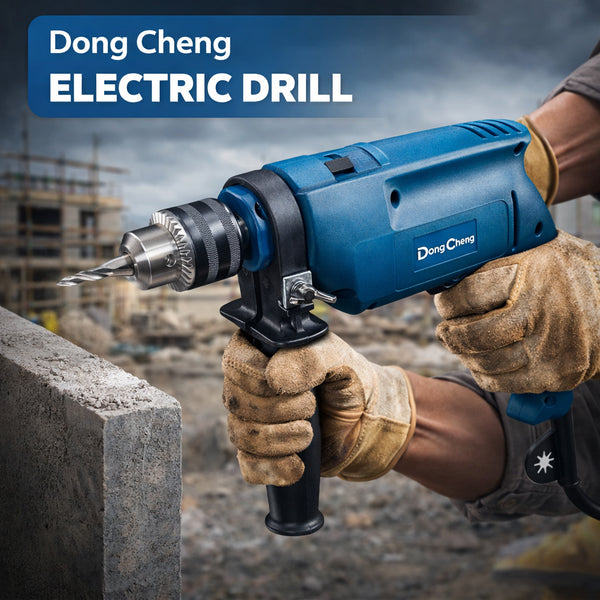

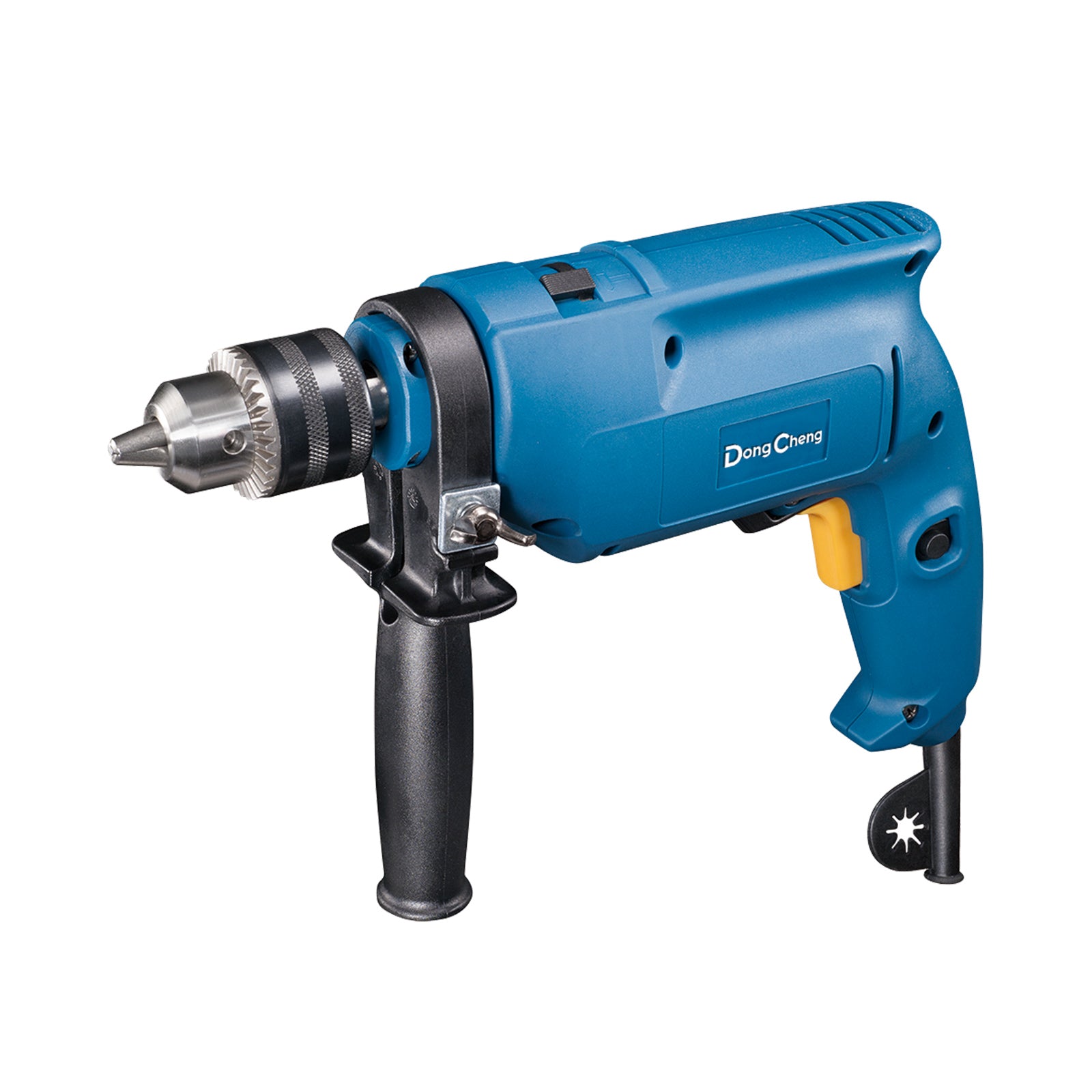

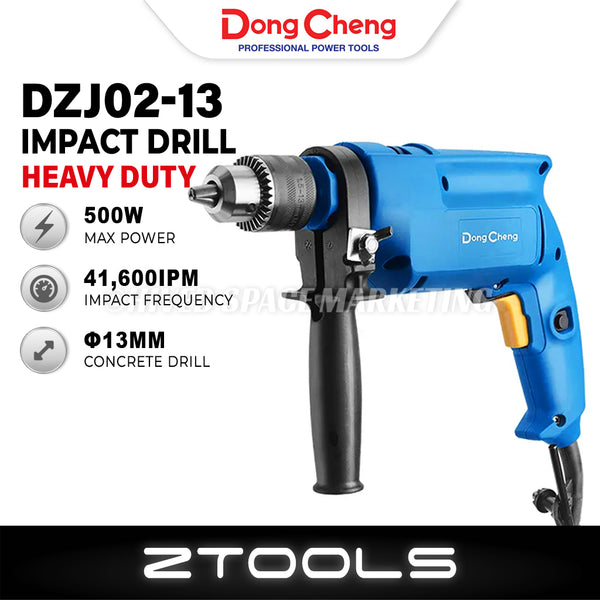

The Dongcheng DZJ02-13 Electric Impact Drill is a versatile 500W power tool designed for drilling applications in steel, concrete and wood. Featuring two operating functions—standard drilling and impact drilling—it offers flexibility for different materials and job requirements.
With an adjustable no-load speed of 0–2600 RPM and an impact frequency of up to 41,600 impacts per minute, the DZJ02-13 supports controlled drilling for professional and general-purpose tasks. Its forward and reverse rotation functions provide additional convenience, while its lightweight 2.0 kg design makes it suitable for workshops, construction sites and maintenance work.
The drill includes an auxiliary handle and depth gauge to support handling and drilling-depth control.
Key Features
-
500W Motor: Suitable for everyday drilling applications.
-
Two Operating Functions: Supports standard drilling and impact drilling.
-
13mm Concrete Drilling Capacity: Designed for drilling concrete with compatible bits.
-
Variable Speed Control: Adjustable no-load speed from 0 to 2600 RPM.
-
High Impact Frequency: Up to 41,600 impacts per minute.
-

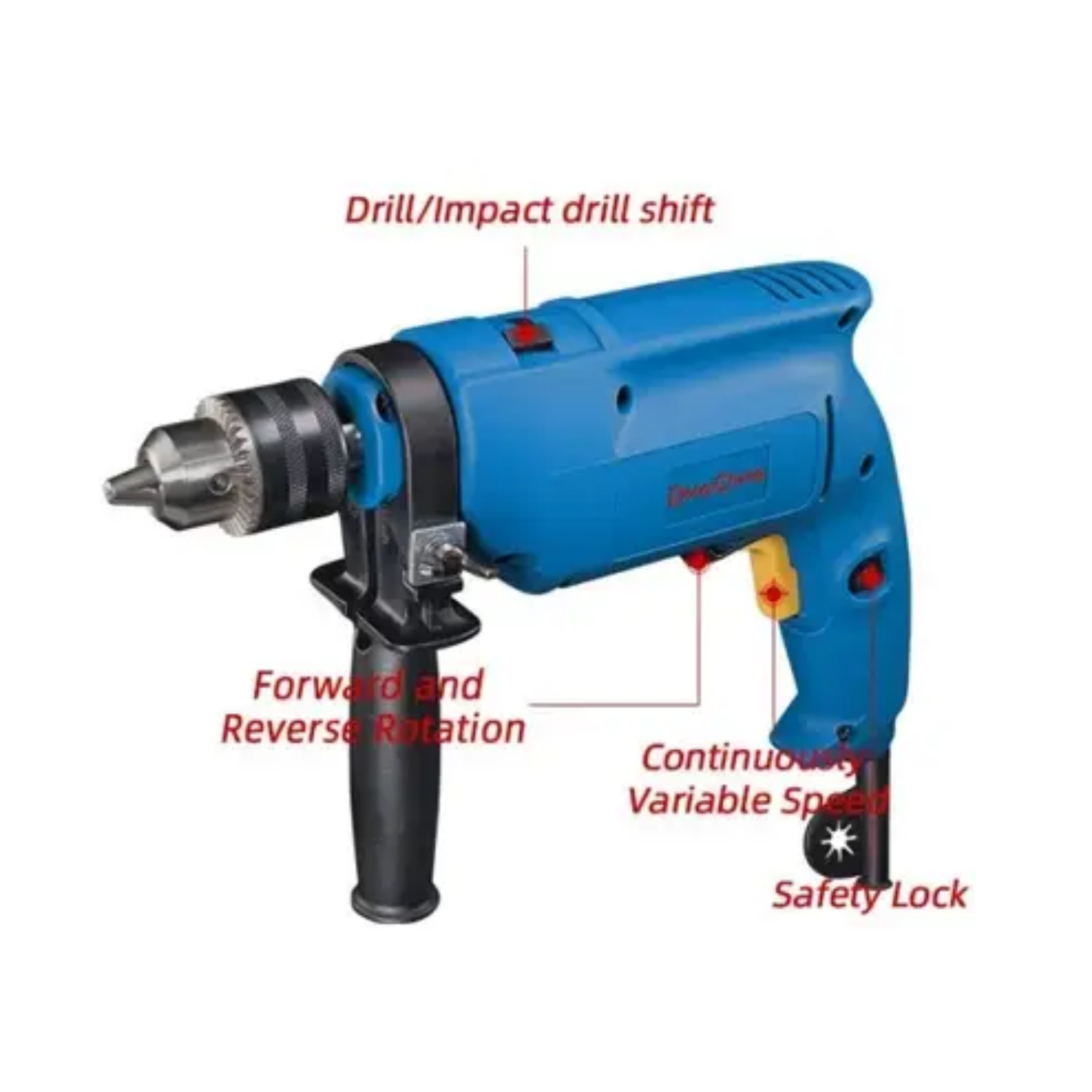

Forward and Reverse Rotation: Supports versatile drilling operations.
-
Multi-Material Drilling: Maximum capacities of 10mm in steel, 13mm in concrete and 25mm in wood.
-
Lightweight Design: Approximate net weight of 2.0 kg.
-
Auxiliary Handle and Depth Gauge: Help improve control and drilling consistency.
Applications
-
Drilling holes in wood and timber.
-
Drilling steel and metal components.
-
Impact drilling in suitable concrete and masonry.
-
Electrical installation and maintenance.
-
Furniture assembly and carpentry.
-
Construction and renovation projects.
-
Workshop and general repair work.

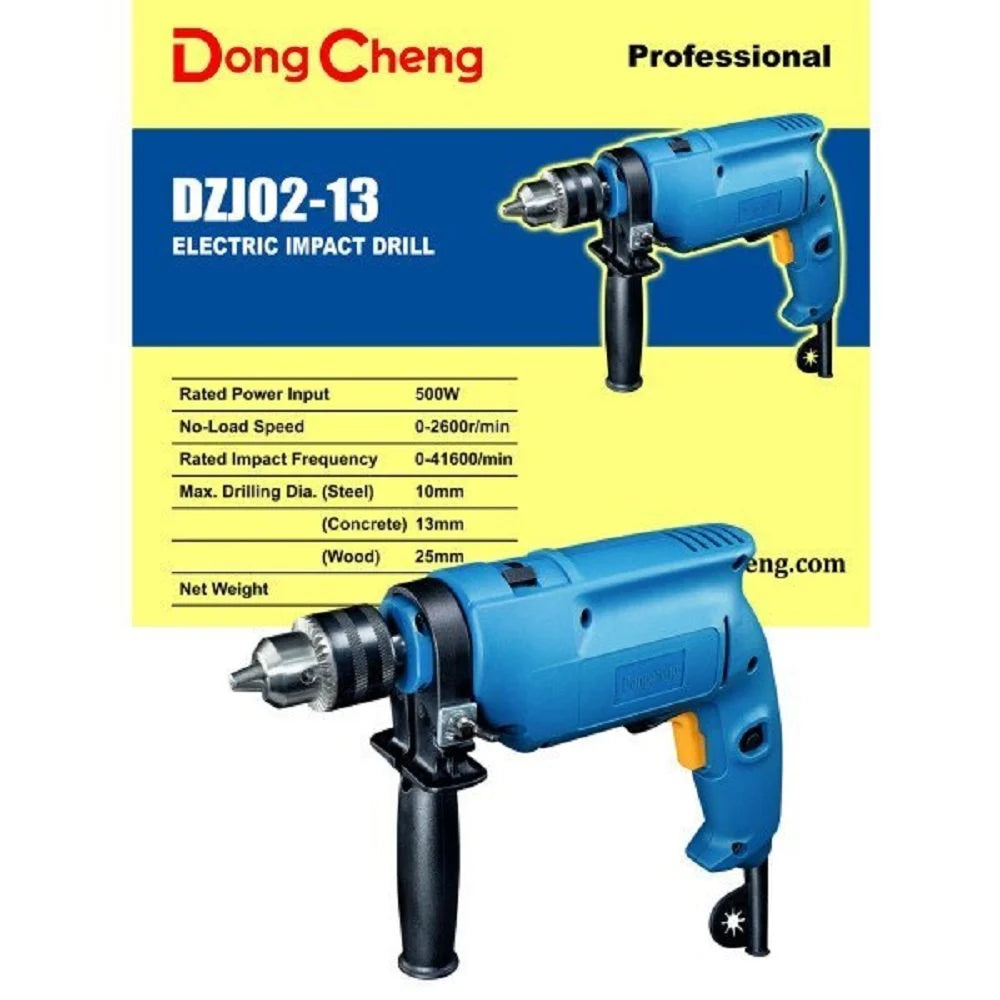

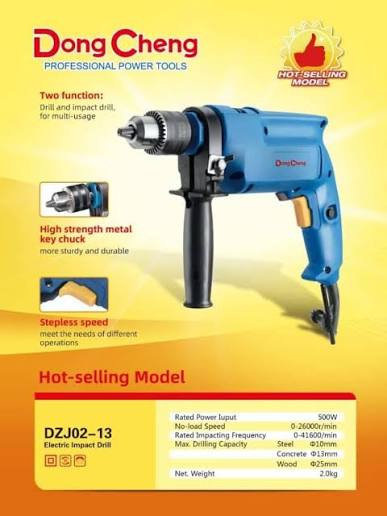

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Dongcheng |
| Model | DZJ02-13 |
| Product Type | Electric Impact Drill |
| Rated Power Input | 500 W |
| No-Load Speed | 0–2600 RPM |
| Rated Impact Frequency | 0–41,600 impacts/min |
| Maximum Drilling Capacity in Steel | 10 mm |
| Maximum Drilling Capacity in Concrete | 13 mm |
| Maximum Drilling Capacity in Wood | 25 mm |
| Net Weight | 2.0 kg |
| Operating Functions | Drilling and Impact Drilling |
| Speed Control | Adjustable |
| Rotation | Forward and Reverse |
| Power Source | Corded Electric |
Model-Wise Specification Table
| Model | Power | Steel | Concrete | Wood | Speed |
|---|---|---|---|---|---|
| DZJ02-13 | 500 W | 10 mm | 13 mm | 25 mm | 0–2600 RPM |
Package Contents
-
Dongcheng DZJ02-13 Impact Drill – 1 unit
-
Auxiliary Handle – 1 piece
-
Depth Gauge – 1 piece
-
Chuck Wrench – 1 piece
-
Carbon Brush – Included
-
Colour Box Packaging – 1
