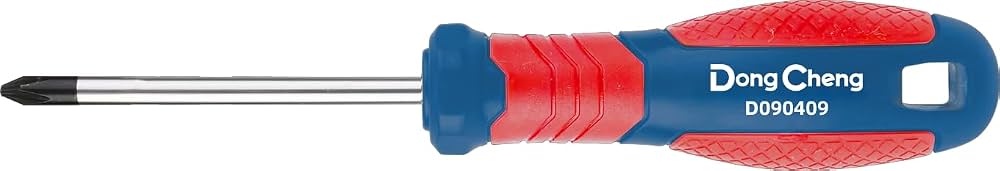

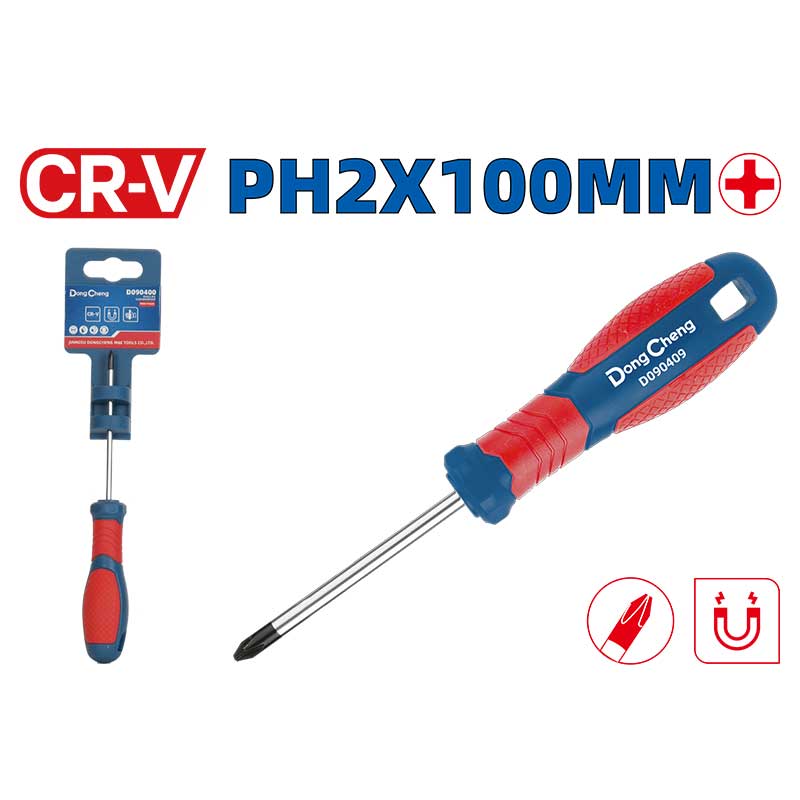

The DongCheng HD090409 PH2 x 100mm Phillips Screwdriver is the most widely used driver size, engineered for high-torque industrial fastening, heavy construction, automotive assembly, and general maintenance. Forged from high-grade Chrome Vanadium (CR-V) alloy steel, the heavy 6.0mm round shank provides maximum structural rigidity and resists twisting under high turning forces.
Equipped with a precision-machined PH2 cross-head tip, it fits securely into standard #2 Phillips screw recesses to prevent cam-out and head stripping. The tip features strong magnetic retention to hold heavy screws firmly during vertical or awkward installations. Designed with an ergonomic dual-color soft-grip handle, it delivers maximum manual torque and user comfort. Includes an individual plastic display hanger.
Key Features
- Heavy-Duty 6.0mm CR-V Shank: Thick round alloy steel blade delivers exceptional torsional strength and high torque tolerance.
- Precision PH2 Cross Tip: Accurately ground #2 tip seats fully in screw slots to eliminate cam-out and stripping.
- Strong Magnetic Retention: Magnetized head keeps fasteners securely aligned on the tip during alignment and driving.
- Balanced 100mm Utility Length: The essential workhorse size for general mechanical maintenance and construction.
- Ergonomic High-Torque Handle: Dual-color molded grip provides positive traction, slip resistance, and comfort.
- Pegboard Plastic Hanger: Supplied with a dedicated hanging fixture for workshop pegboards.
Applications
- Heavy mechanical assembly, machine guard fastening, and equipment overhauls
- Automotive repairs, engine bay brackets, interior trim, and body panel fastening
- Construction framing, drywall installation, and architectural hardware fixing
- General industrial maintenance and household toolkits
Technical Specifications
| Parameter | Specification |
| Brand | DongCheng |
| Model Number | HD090409 |
| Tool Type | Heavy-Duty Phillips (Cross-Head) Screwdriver |
| Blade Material | Chrome Vanadium (CR-V) Steel |
| Tip Type / Size | Phillips PH2 |
| Tip Characteristic | Strong Magnetic Tip |
| Blade Length | 100 mm |
| Blade / Shank Diameter | 6.0 mm |
| Shank Type | Round Shank |
| Handle Type | Two-color ergonomic handle |
| Packaging Type | 1 PCS screwdriver with 1 PCS plastic hanger |
Size/Model-wise Table
| Model | Tip Size | Blade Length | Shank Diameter | Material | Magnetic | Handle Type | Packaging |
| HD090409 | PH2 | 100 mm | 6.0 mm | Chrome Vanadium (CR-V) | Yes (Strong Magnetic) | Two-Color Ergonomic | Plastic Hanger |
