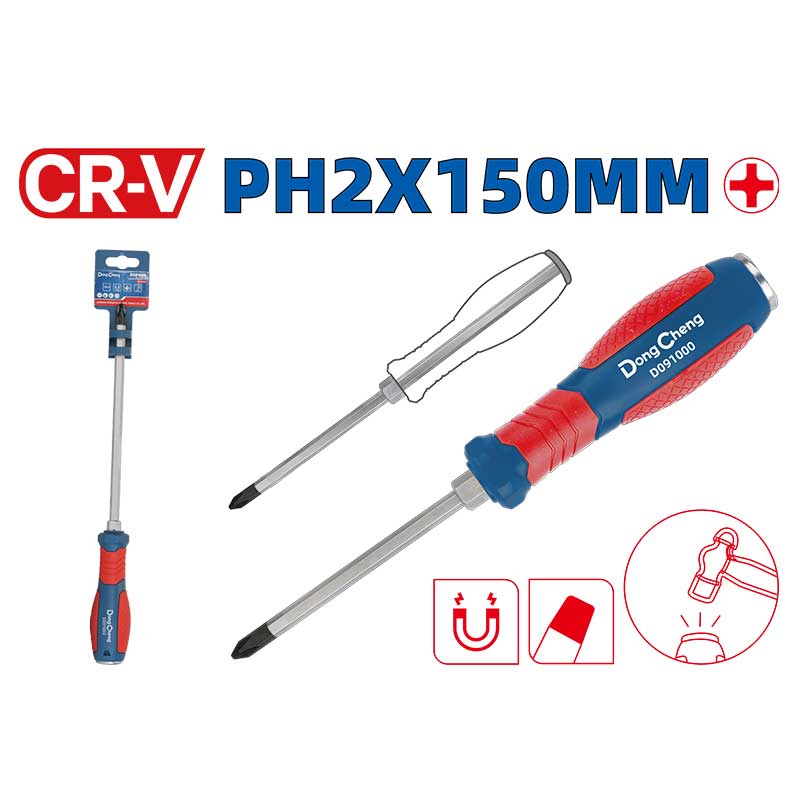

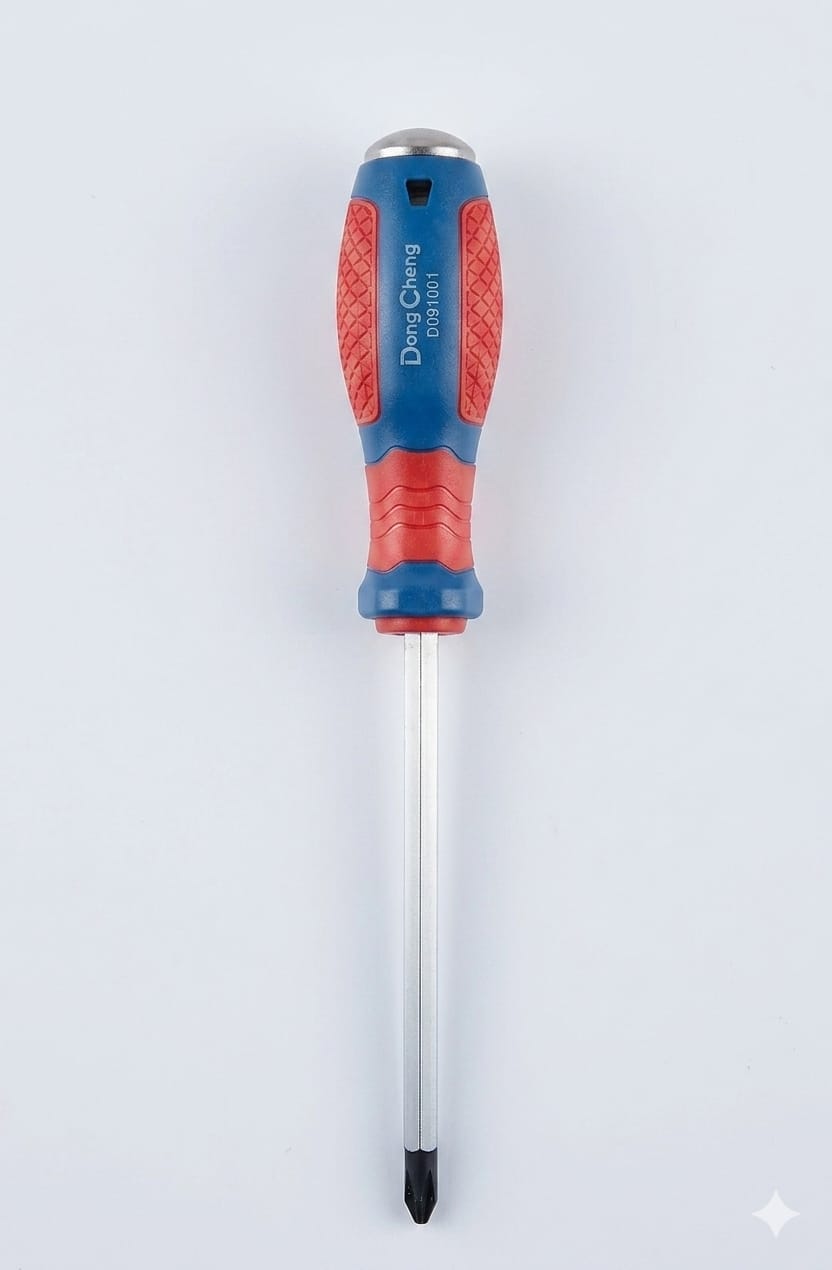

DongCheng PH2 x 150mm Go-Through Phillips Screwdriver (HD091001)
Availability:Out of stock
Have a question?
The DongCheng HD091001 PH2 x 150mm Go-Through Phillips Screwdriver is engineered to break loose seized, stripped, and overtightened cross-head fasteners. Designed with a solid steel rod extending from the precision #2 Phillips tip through the handle to a reinforced metal striking cap, this tool transmits hammer blows directly to fastener heads to break rust bonds without damaging the handle.
Drop-forged from high-grade Chrome Vanadium (CR-V) alloy steel, the 150mm blade features a 6.0mm hex shank that allows wrench engagement for high breakaway leverage. The precision-machined PH2 cross tip seats firmly into screw recesses to minimize cam-out and slipping. Equipped with an ergonomic two-color soft-grip handle, it dampens impact shock and delivers non-slip comfort during intensive use. Includes an individual plastic hanger for pegboard mounting.
Key Features
- Go-Through Steel Core & End Cap: Allows direct hammer blows to loosen stubborn, rusted, or frozen #2 Phillips screws.
- 6.0mm Hex Shank Bolster: Hexagonal shank accepts an open-end or adjustable wrench to multiply manual turning torque.
- Chrome Vanadium (CR-V) Construction: Hardened alloy steel resists edge chipping, tip deformation, and shank flex.
- Precision PH2 Cross-Head Tip: Accurately ground profile seats fully in screw recesses to prevent cam-out.
- Shock-Dampening Ergonomic Handle: Dual-color molded grip absorbs striking vibration while providing a comfortable hold.
- Display Hanger Included: Supplied with a dedicated plastic hanging bracket for neat workshop storage.
Applications
- Loosening frozen or corroded Phillips screws in automotive brake discs, rotors, and chassis fixtures
- Heavy industrial machinery maintenance, conveyor systems, and motor mounts
- Commercial HVAC equipment, compressor units, and metal enclosure servicing
- General mechanical repair requiring hammer strikes and wrench torque assist
Technical Specifications
| Parameter | Specification |
| Brand | DongCheng |
| Model Number | HD091001 |
| Tool Type | Go-Through (Impact / Striking) Phillips Screwdriver |
| Blade Material | Chrome Vanadium (CR-V) Steel |
| Shank Type | Hex Shank (Wrench Assist) |
| Tip Type / Size | Phillips PH2 |
| Shank Diameter | 6.0 mm |
| Blade Length | 150 mm |
| Handle Features | Steel striking cap with go-through steel core |
| Packaging Type | Packed by plastic hanger |
Size/Model-wise Table
| Model | Tip Size | Blade Length | Shank Type | Shank Diameter | Material | Strike Cap | Packaging |
| HD091001 | PH2 | 150 mm | Hex Shank | 6.0 mm | Chrome Vanadium (CR-V) | Yes (Go-Through) | Plastic Hanger |
