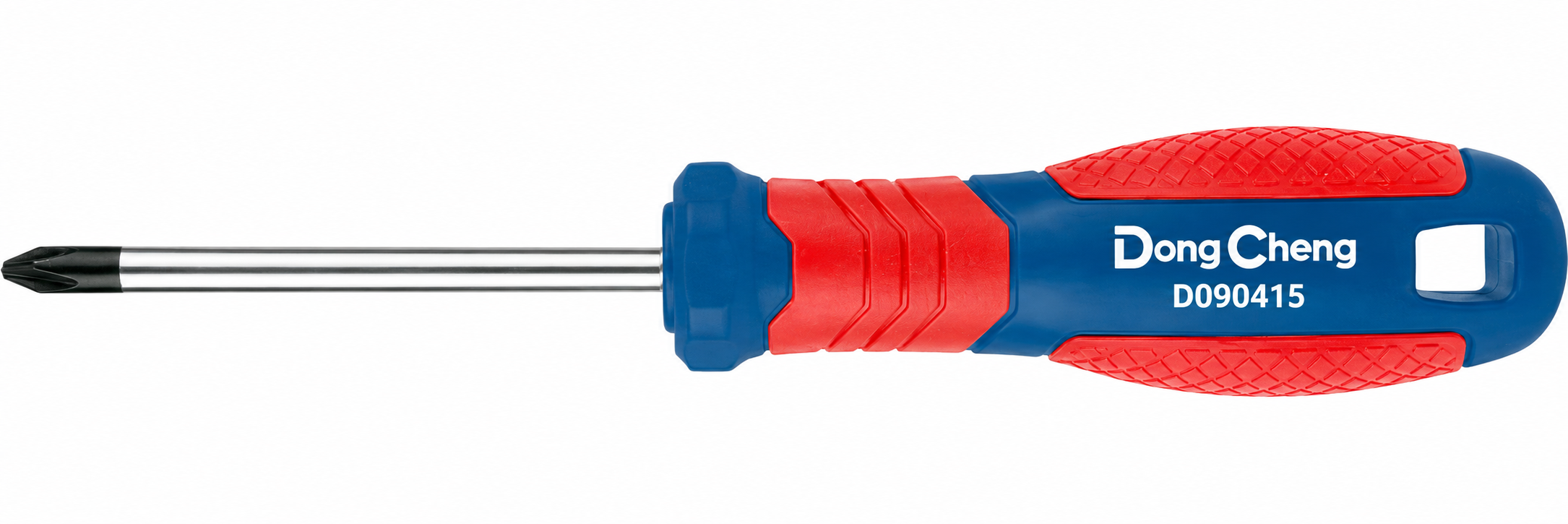

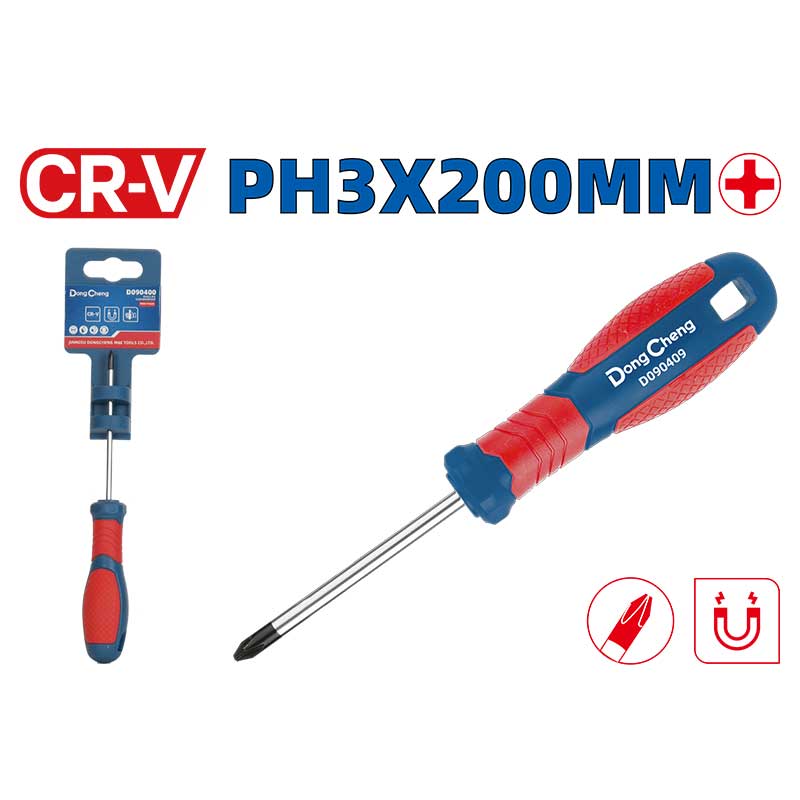

The DongCheng HD090415 PH3 x 200mm Phillips Screwdriver is built for heavy-duty industrial fastening, structural assembly, commercial vehicle servicing, and machinery maintenance. Manufactured with a thick 8.0mm diameter round shank drop-forged from premium Chrome Vanadium (CR-V) steel, this driver delivers extreme torsional resistance without flexing under maximum torque loads.
Featuring a large, precision-machined PH3 cross-head tip, it ensures deep engagement with large #3 cross-recess screws, minimizing cam-out and preserving fastener integrity. The tip features strong magnetic retention to hold heavy screws securely during overhead or vertical fastening. Equipped with an ergonomic dual-color soft-grip handle, it provides positive hand traction and high rotational leverage. Complete with an individual plastic hanger for pegboard organization.
Key Features
- Heavy-Duty 8.0mm CR-V Shank: Extra-thick alloy steel blade provides maximum structural strength and torque tolerance.
- Large PH3 Cross Tip: Precision-ground tip seats snugly into large industrial Phillips screws to eliminate slippage.
- Extended 200mm Reach: Allows powerful torque application in deep machine compartments and recessed assemblies.
- Strong Magnetic Retention: Powerful magnetic tip holds large screws firmly to prevent dropped fasteners.
- High-Torque Ergonomic Handle: Dual-color molded grip maximizes manual turning leverage while reducing fatigue.
- Display Storage Hanger: Supplied with a dedicated plastic hanging fixture for wall racks and workshop displays.
Applications
- Heavy industrial machinery assembly, motor base mounting, and machine guard fixing
- Commercial vehicle, trailer maintenance, suspension bracket work, and body building
- High-voltage electrical switchboards, industrial busbars, and heavy junction boxes
- Construction framing, timber structural fasteners, and heavy hardware installation
Technical Specifications
| Parameter | Specification |
| Brand | DongCheng |
| Model Number | HD090415 |
| Tool Type | Heavy-Duty Phillips (Cross-Head) Screwdriver |
| Blade Material | Chrome Vanadium (CR-V) Steel |
| Tip Type / Size | Phillips PH3 |
| Tip Characteristic | Strong Magnetic Tip |
| Blade Length | 200 mm |
| Blade / Shank Diameter | 8.0 mm |
| Shank Type | Round Shank |
| Handle Type | Two-color ergonomic handle |
| Packaging Type | 1 PCS screwdriver with 1 PCS plastic hanger |
Size/Model-wise Table
| Model | Tip Size | Blade Length | Shank Diameter | Material | Magnetic | Handle Type | Packaging |
| HD090415 | PH3 | 200 mm | 8.0 mm | Chrome Vanadium (CR-V) | Yes (Strong Magnetic) | Two-Color Ergonomic | Plastic Hanger |
