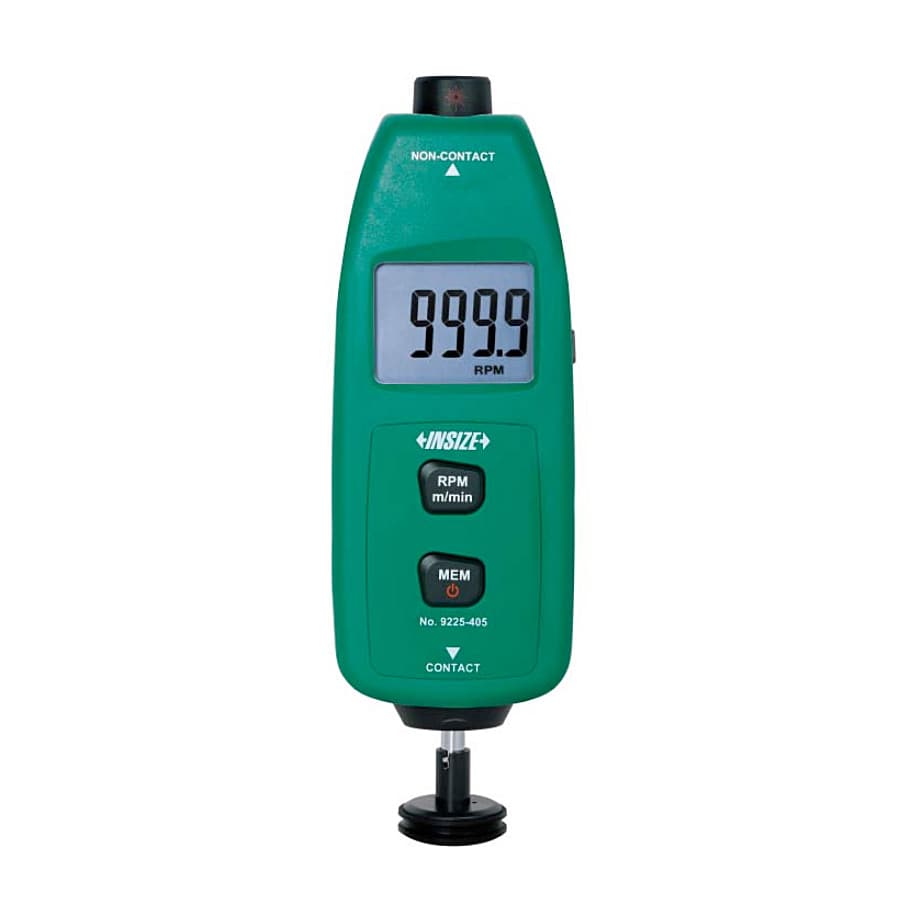

Insize Contact/Non-Contact Tachometer 9225-405 | Digital RPM Meter
The Contact/Non-Contact Tachometer 9225-405 is a professional digital RPM meter designed for precise rotational and linear speed measurement. It supports both contact and non-contact measurement methods, making it suitable for industrial machinery, motor inspection, conveyor systems, and maintenance applications. The device features fast response, high accuracy, data storage capability, and ergonomic handheld operation.
Features:
- Dual measuring modes: Contact and Non-Contact
- Measures rotary speed and line speed
- High accuracy laser measurement system
- Stores maximum, minimum, and last measured values
- Memory storage up to 500 readings
- Automatic power off function
- Portable ergonomic handheld design
- Suitable for industrial maintenance and inspection

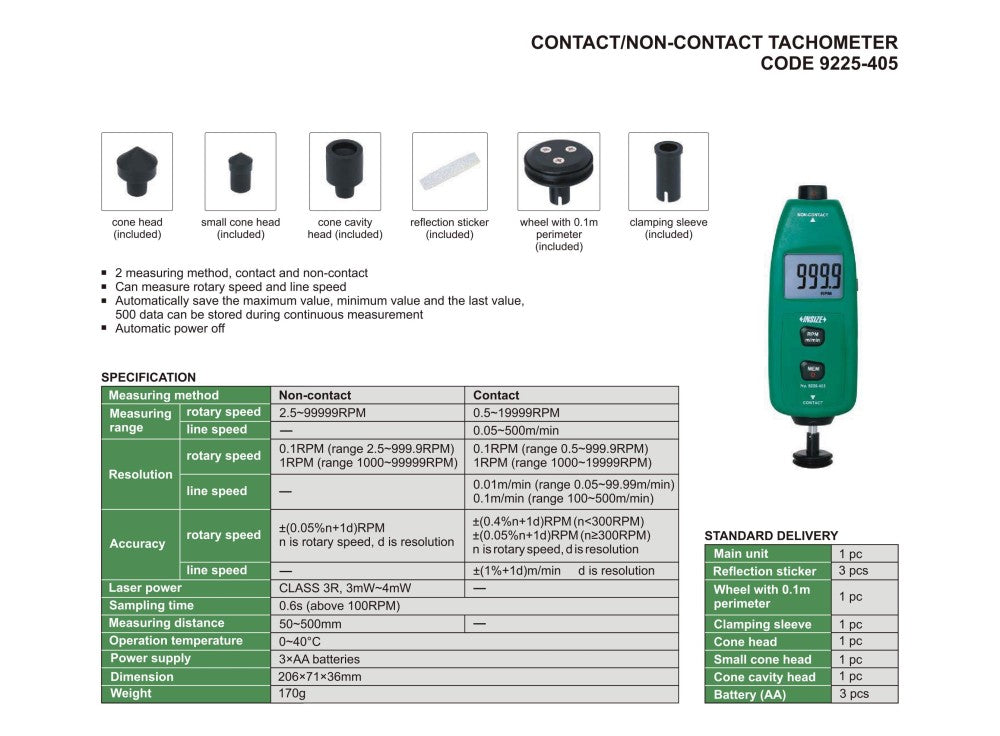

Specifications:
- Model: 9225-405
- Non-Contact Measuring Range: 2.5~99999 RPM
- Contact Measuring Range: 0.5~19999 RPM
- Line Speed Range: 0.05~500 m/min
- Resolution: 0.1 RPM / 1 RPM
- Accuracy: ±(0.05%n+1d) RPM
- Laser Power: Class 3R, 3mW~4mW
- Measuring Distance: 50~500 mm
- Sampling Time: 0.6s
- Power Supply: 3×AA Batteries
- Dimensions: 206×71×36 mm
- Weight: 170 g
