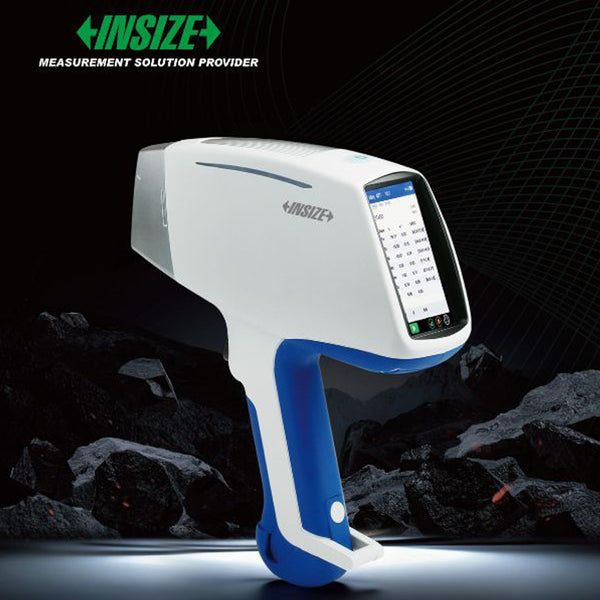

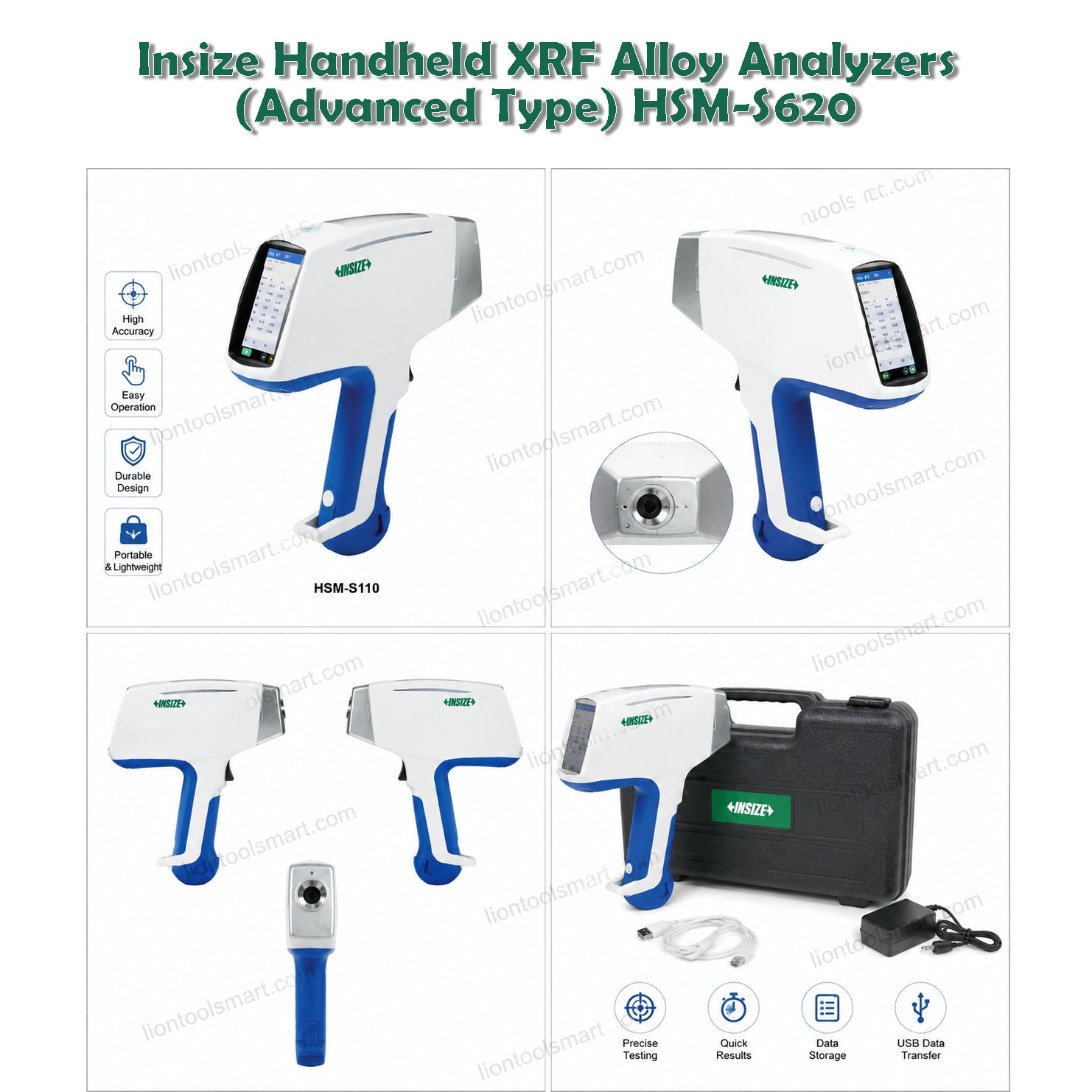

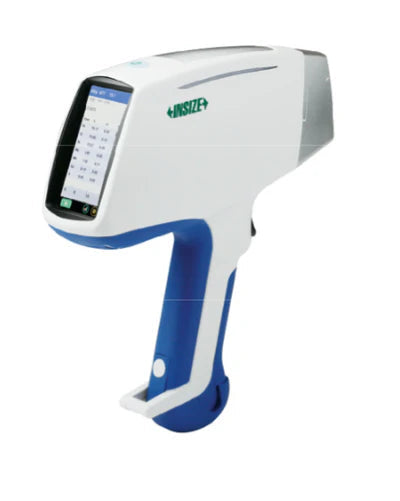

The Handheld XRF Alloy Analyzer (Advanced Type) HSM-S620 is a professional portable elemental analysis instrument designed for rapid and non-destructive alloy identification. Equipped with advanced SDD detector technology, it provides high-precision elemental analysis for stainless steel, aluminum alloys, copper alloys, nickel alloys, titanium alloys, and other industrial metals.
The analyzer is widely used in metal manufacturing, scrap recycling, petrochemical inspection, aerospace industries, and Positive Material Identification (PMI) applications. Its rugged handheld design, Android operating system, and high-resolution touchscreen ensure reliable field performance and easy operation.
Features:**
Advanced handheld XRF alloy analyzer
Fast non-destructive metal analysis
High-performance SDD detector technology
Detects light and heavy elements from Mg to U
One-touch rapid alloy identification
High-resolution industrial touchscreen display
Android operating system
Built-in alloy grade database with customizable libraries
Generates Excel and PDF reports
Rugged portable industrial construction
Suitable for PMI inspection and scrap metal sorting
No sample preparation required
Specifications:**
Model: HSM-S620
Analysis Mode: Alloy Analysis
Detector Type: SDD Detector
Elemental Analysis Range: Mg~U
Target Material: Rh Target
Excitation Source: 50kV / 200μA Max.
Display: 4.3-inch Industrial Touchscreen
Operating System: Android
Memory: 32GB
Data Interface: Mini-USB
Data Output: Excel & PDF Reports
Battery Capacity: 6600mAh Rechargeable Battery
Working Temperature: -35°C~60°C
Dimensions: 254×79×280 mm
Weight: 1.6 kg
Application: Alloy identification and elemental composition analysis
