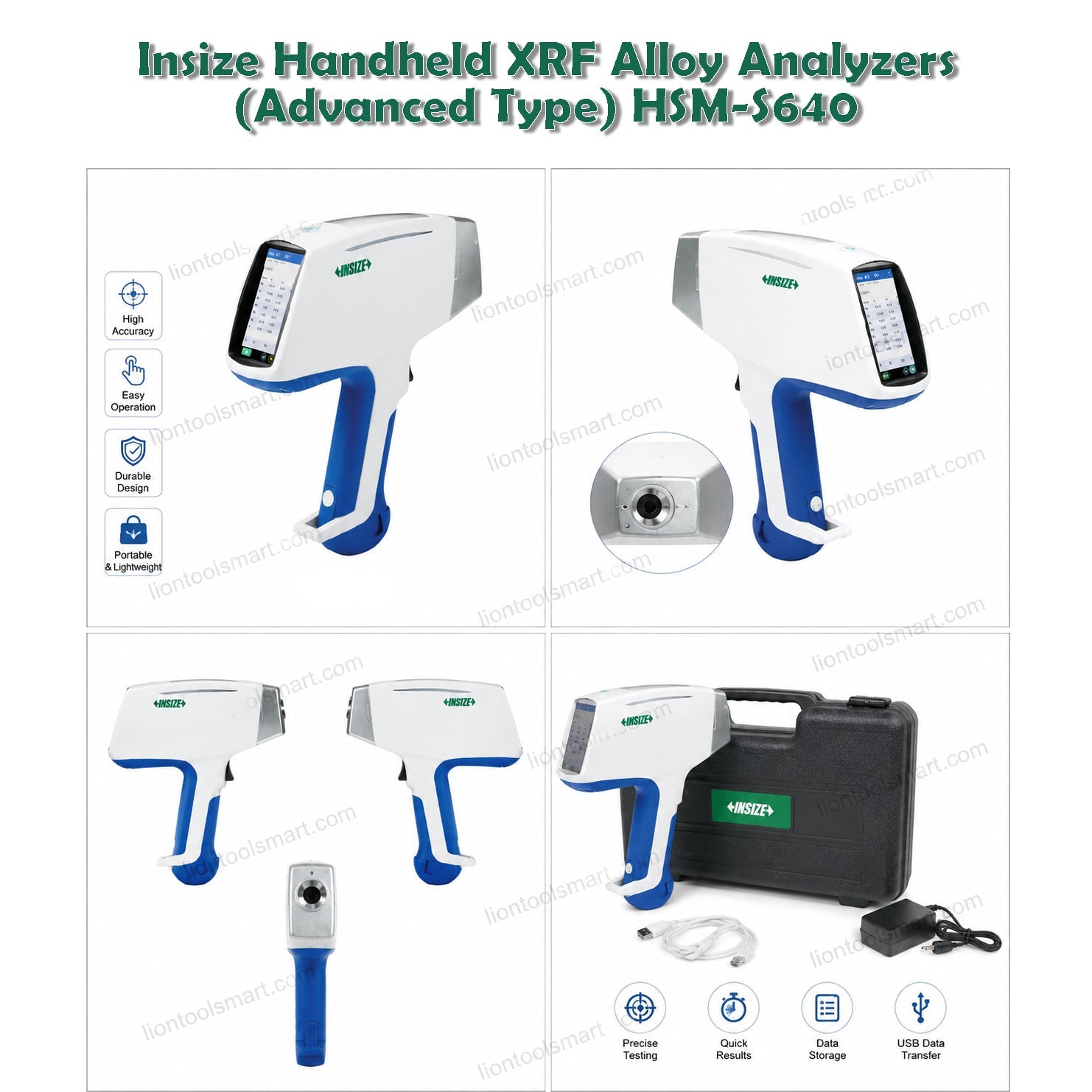

Buy Insize Handheld XRF Alloy Analyzers (Advanced Type) HSM-S640 Online

The Handheld XRF Alloy Analyzer (Advanced Type) HSM-S640 is a premium portable elemental analysis instrument engineered for fast, non-destructive alloy identification and plating analysis. Equipped with advanced SDD detector technology, the analyzer delivers laboratory-level precision for detecting both light and heavy elements from magnesium to uranium.

Designed for industrial metal testing, Positive Material Identification (PMI), scrap metal recycling, aerospace inspection, electroplating analysis, and manufacturing quality control, the HSM-S640 provides rapid results within seconds through a rugged handheld platform with Android operating system and touchscreen interface.

Features:

• Advanced handheld XRF alloy analyzer
• Fast non-destructive elemental analysis
• Supports alloy analysis and plating thickness analysis
• High-performance SDD detector technology
• Detects elements from Mg to U
• One-touch rapid analysis within seconds
• High-resolution industrial touchscreen display
• Android operating system for smooth operation
• Built-in alloy grade database with expandable libraries
• Generates Excel and PDF reports
• Rugged ergonomic handheld industrial design
• Ideal for PMI inspection and scrap sorting
• No sample preparation required

Specifications:

• Model: HSM-S640
• Analysis Mode: Alloy Analysis & Plating Analysis
• Detector Type: SDD (Silicon Drift Detector)
• Elemental Analysis Range: Mg~U
• Target Material: Rh Target
• Excitation Source: 50kV / 200μA Max.
• Display: 4.3-inch Industrial Resistive Touchscreen
• Operating System: Android
• Memory: 32GB
• Data Interface: Mini-USB
• Data Output: Excel & PDF Report Generation
• Battery Capacity: 6600mAh Rechargeable Battery
• Working Temperature: -35°C~60°C
• Dimensions: 254×79×280 mm
• Weight: 1.6 kg
• Application: Alloy identification, plating thickness measurement, and elemental composition analysis
