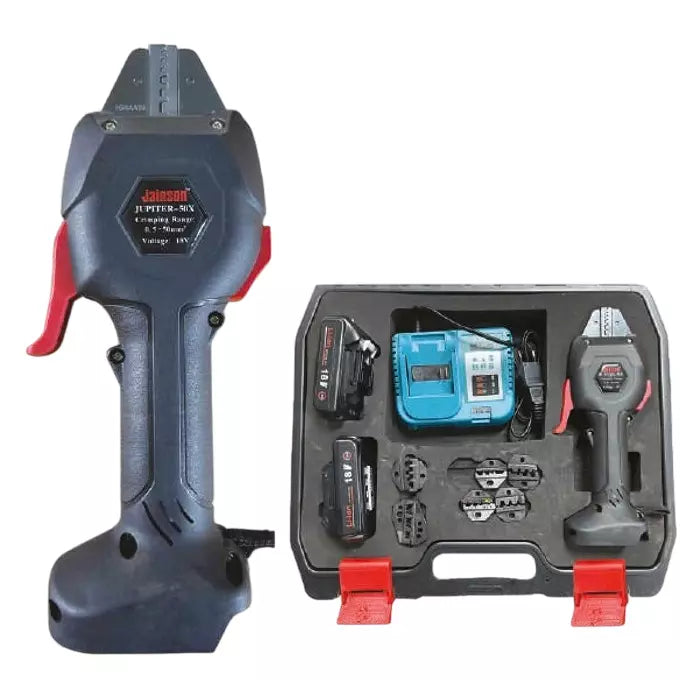

Jupiter-50X Battery Powered Crimping Tool is vertical cold press clamping tool. It is a speedy, simple-to-use, safe crimping tool that can be adjusted for a veriety of applications. Due to its highly controlled action, the tool also produces more accurate and consistent results than are possible using a hand-operated tool. We provide all-copper motor strong power, which can let you easily handle high-intensity work. A variety of replaceable dies can be selected and used according to the needs. Jupiter-50X gives excellent crimping results with minimum effort for cable lugs and connectors upto 50sqmm. This tool combines the benefits of manual crimping tools with the convenience of battery powered hydraulic crimping tools.
Simple and Safe: One-button operating concept for controlling all tool functions.
Electronic control with locking function monitors full closing of the dies.
Very low weight and high speed for maximum efficiency.
Simple and safe: automatic retraction when operation is complete.
Manual retract as required.
Powerful drive technology for fatigue proof operations.
Powerful 18V Li-Ion battery with charge status display.
LED for work area illumination.
SPECIFICATIONS:
Max. Output force: 16kN.

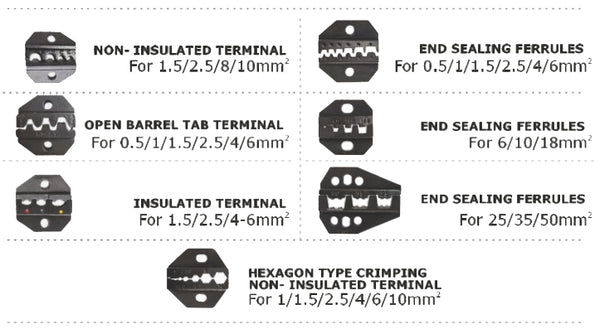

Crimping Range: 0.5-50mm² End Sealing Ferrules, 0.5-10mm²Non-Insulated Terminal, 0.5-6mm² Open Barrel Tab Terminal, 0.5-6mm² Insulated Terminal.
