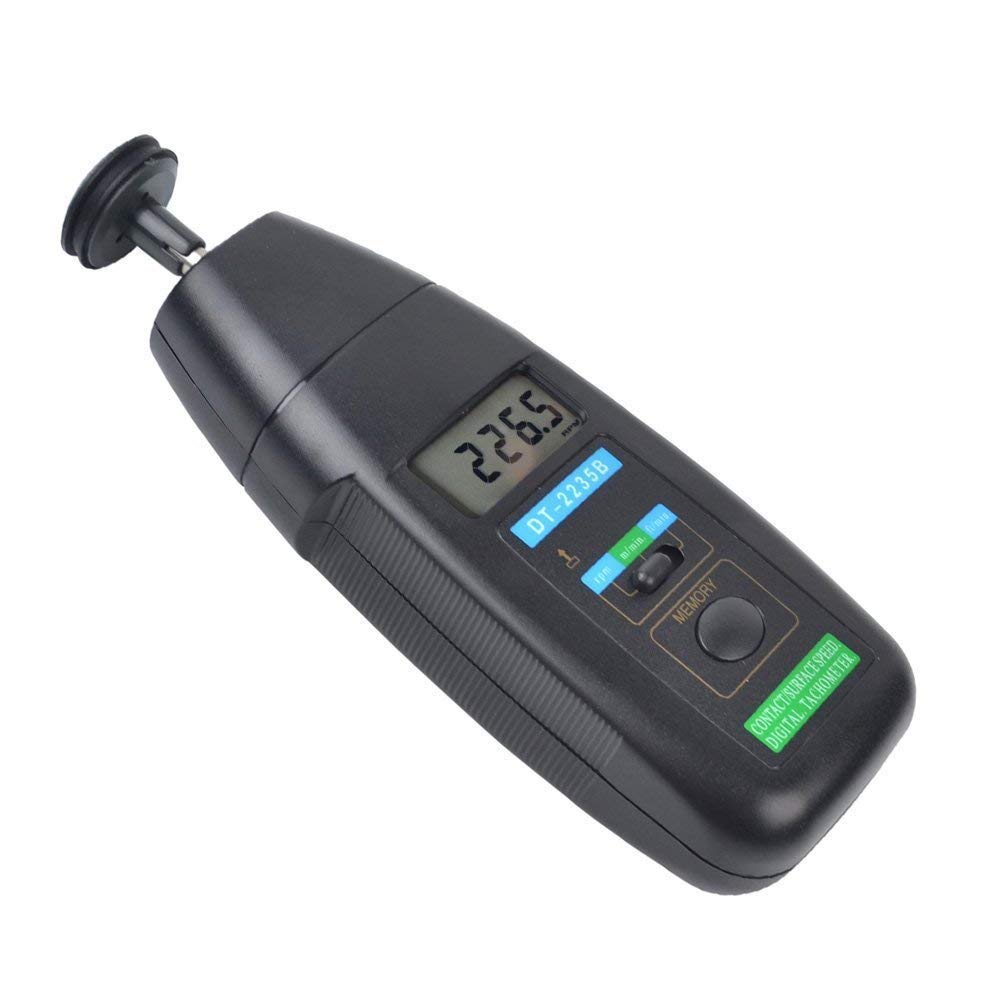

The Lutron DT-2235B Electronic Contact Tachometer is a professional digital measuring instrument designed to accurately measure the rotational speed of motors, shafts, machinery and other rotating components. It provides direct-contact RPM measurement along with surface-speed measurement in both m/min and ft/min.
The tachometer features a clear 5-digit LCD display, high measurement accuracy of ±(0.05% + 1 digit) and a wide measurement range of 0.5 to 19,999 RPM. It also stores the last, maximum and minimum readings, making it useful for inspection, maintenance and troubleshooting applications.
Features & Specifications
Brand: Lutron
Product Type: Electronic Contact Tachometer
Model: DT-2235B
Measurement Range:0.5 to 19,999 RPM
Surface Speed Range:0.05 to 1,999.9 m/min
Surface Speed:0.2 to 6,560 ft/min
RPM Resolution: 0.1 RPM below 1,000 RPM; 1 RPM at 1,000 RPM and above
Accuracy:±(0.05% + 1 digit)
Display: 5-digit, 10 mm LCD
Sampling Time: 1 second
Time Base: Quartz crystal
Memory: Last, maximum and minimum values
Power Supply: 4 × 1.5V AA (UM-3) batteries
Operating Temperature: 0°C to 50°C
Dimensions: 208 × 72 × 37 mm
Accessories: Carrying case, cone RPM adapter, funnel RPM adapter, surface-speed test wheel and operation manual
Applications: Motor testing, machinery maintenance, shaft-speed measurement, automotive servicing, pumps, fans and industrial equipment inspection
