-5%

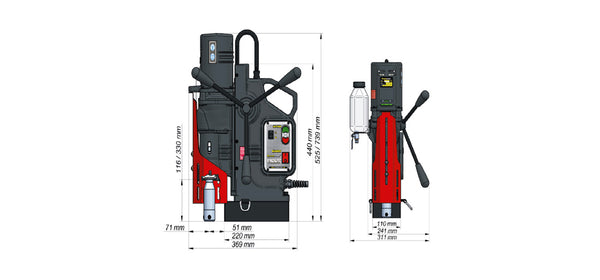

MAGNETIC DRILLING MACHINE TRIDENT 75mm X 75mm - 60mmx100mm

Product Code:

Availability:In stock

Rs. 125,000.00 Rs. 119,000.00 119,000.00

HSS Cutters
Standard Arbor with 19mm Weldon shank

Large HSS & TCT Cutters
Optional Arbor with 31.75mm Weldon shank

Twist Drills
Morse Taper No. 3

Thread Cutter
Tapping Attachment with Morse Taper No. 3

TRIDENT from Broachcutter® is a newest Multi Function Magnetic Drilling Machine with Reversible motor for tapping. A workhorse of a machine, with Electronic Speed Stabilization System which maintains set rpm under varying loads.

Offers reliability through a combination of continuously variable speed with 2-set gearbox and speed stabilizer.

Motor Power
Motor Power
1650W
Motor Speed
Motor Speed
(Under load) 80-160/210-420 rpm
Weight
Weight
27 Kg
Annular Cutter
Annular Cutter
Max. Ø 76 mm
Twist Drill
Twist Drill
Max. Ø 32 mm
Countersinking
Countersinking
Max. Ø 63 mm
Depth of Cut
Depth of Cut
max. 76 mm 100 mm (up to Ø60)
Stroke
Stroke
225 mm
Magnetic Clamping
Magnetic Clamping
19500 N (25mm, ra=1,25)
Spindle
Spindle
MT3
Tapping
Tapping
Max. M24
