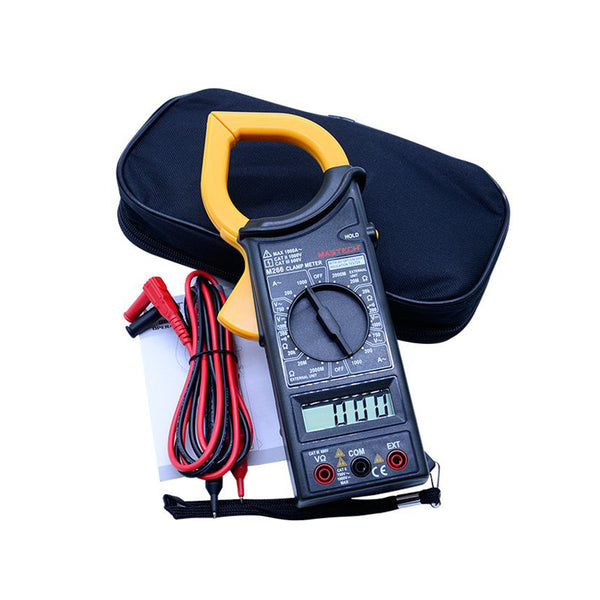

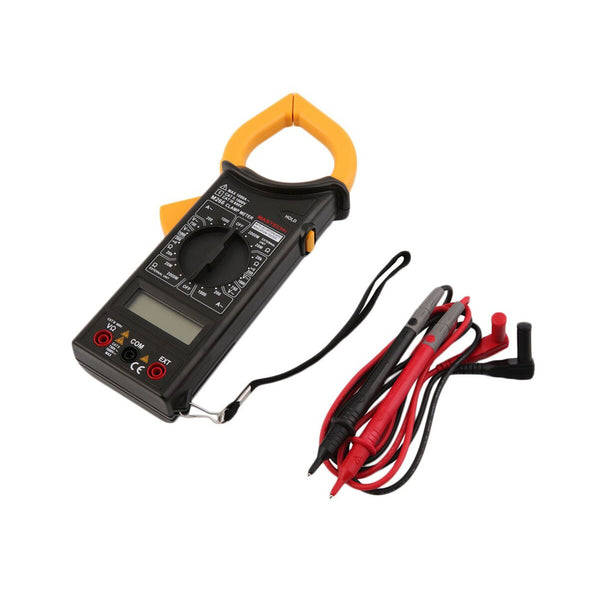

MASTECH AC DIGITAL CLAMP METER M266 SERIES

Product Code: #ITM001720

Availability:In stock

Rs. 1,500.00 Rs. 1,250.00 1,250.00

Qty

Ask about this product

● Display 2000 counts
● Jaw Opening Ф50mm/2.0"
● Continuity Buzzer <100Ω
● Data Hold
● Low Battery Display

● Power Supply :  1×9V 6F22 Battery
● Product Size :  235mm×96mm×46mm/9.25"×3.8"×1.8"
● Product Weight :  268g/0.59lb
● Certification :  CE / ETL / RoHS
● Safety Rating :  CAT II 1000V/ CAT III 600V

1
Specifications Range Resolution Accuracy
2
DC Voltage 1000V 1V ±(0.8%+3)
3
AC Voltage 750V 1V ±(1.2%+5)
4
AC Current 200A 0.1A ±(2.5%+5)
5
1000A 1A
±(3.0%+10)
6
Resistance 200Ω 0.1Ω ±(1.0%+5)
7
20kΩ 10Ω ±(1.0%+8)
8
Insulation Test 20MΩ 10kΩ ±(2.0%+2)
9
2000MΩ (Note<500MΩ)
1MΩ ±(4.0%+2)
10
2000MΩ (Note>500MΩ)
1MΩ ±(5.0%+2)
