The MECO 4050 Digital Solar Clamp Meter is a professional DC/AC TRMS clamp meter designed for high-current and high-voltage electrical measurement, with particular suitability for solar photovoltaic (PV) system installation, testing and maintenance.

The meter provides 1500A DC/AC TRMS current measurement and 2000V DC/AC TRMS voltage measurement, making it suitable for demanding electrical and solar applications. Its True RMS technology helps provide accurate measurements on both sinusoidal and non-linear electrical signals.

The MECO 4050 also supports resistance, capacitance, frequency, temperature, duty cycle, diode testing, audible continuity, MIN/MAX, ΔREL and data hold functions. Its non-contact clamp design allows current measurement without disconnecting the conductor from the circuit.

Features & Specifications

• Brand: Meco

• Model: 4050

• Product Type: Digital Solar Clamp Meter

• Display: 3¾ Digit / 4200 Counts

• Measurement Technology: TRMS / True RMS

• DC Current: Up to 1500A

• AC Current: Up to 1500A

• DC Voltage: Up to 2000V

• AC Voltage: Up to 2000V

• Resistance: Up to 40MΩ

• Capacitance: Up to 99.99µF

• Frequency: Up to 9.999MHz

• Temperature: -20°C to 750°C

• Duty Cycle: 10%–90%

• Special Functions: Audible Continuity, Diode Test, ΔREL

• Measurement Functions: MIN/MAX and Data Hold

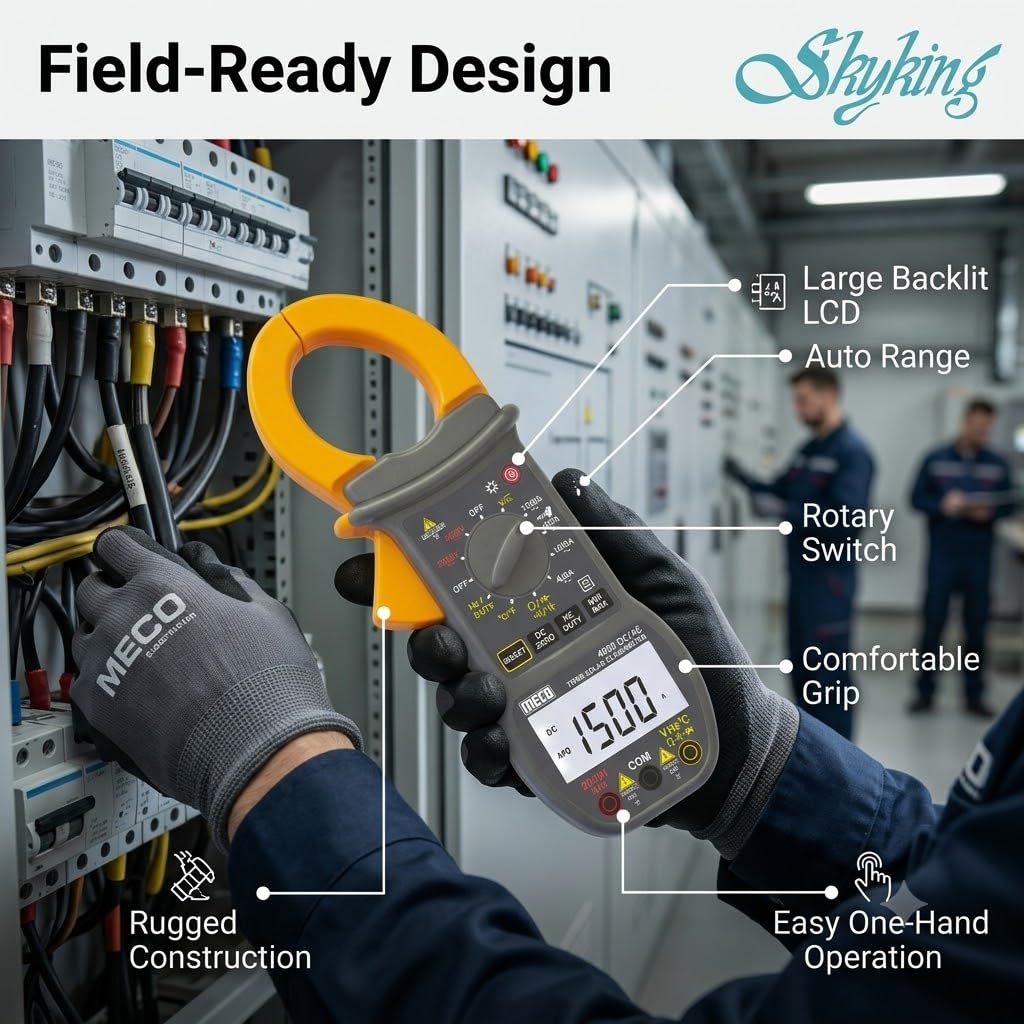

• Display: Large LCD with Backlight

• Clamp Type: Non-Contact Current Measurement

• Maximum Jaw Opening: Approximately 55mm cable diameter

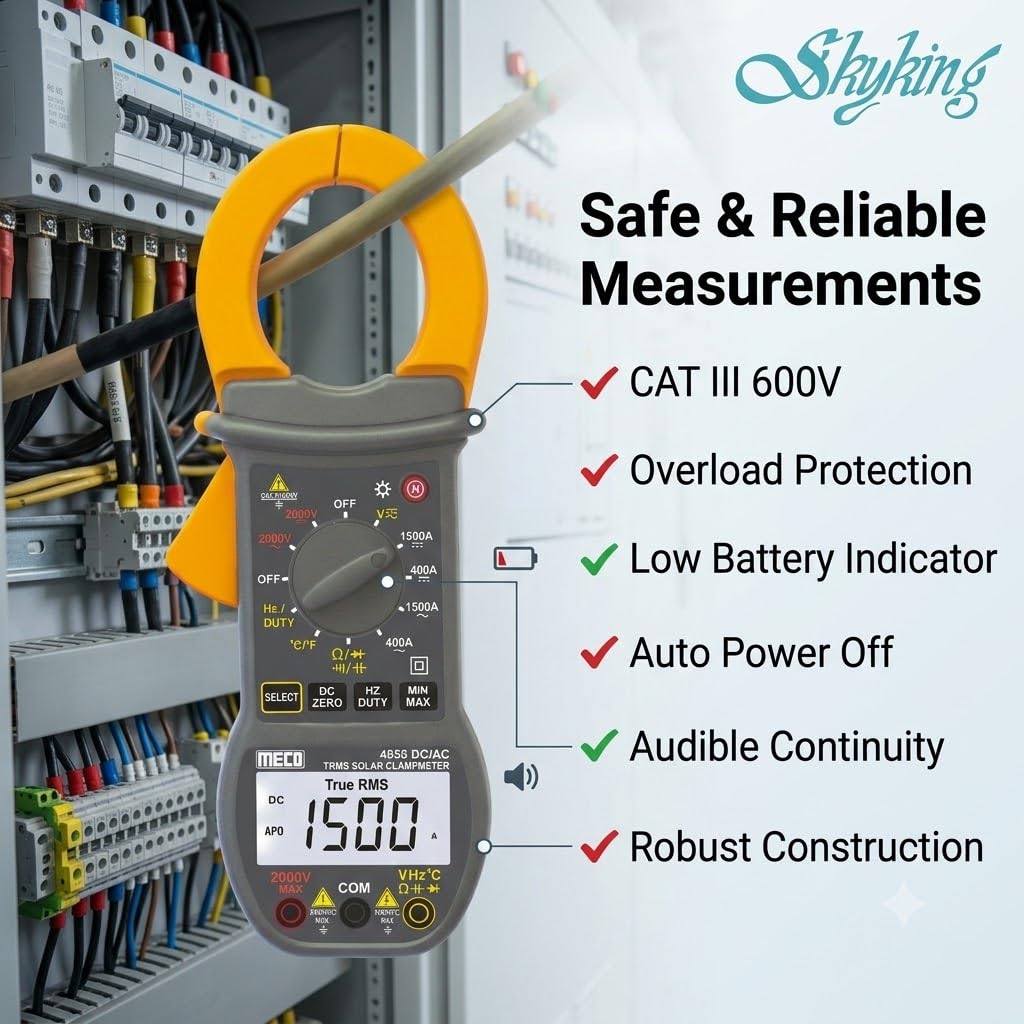

• Safety Category: CAT III 600V

• Battery: 1 × Battery

• Application: Solar PV, Electrical Maintenance, Industrial Testing

• Weight: Approximately 386g including battery

Key Features

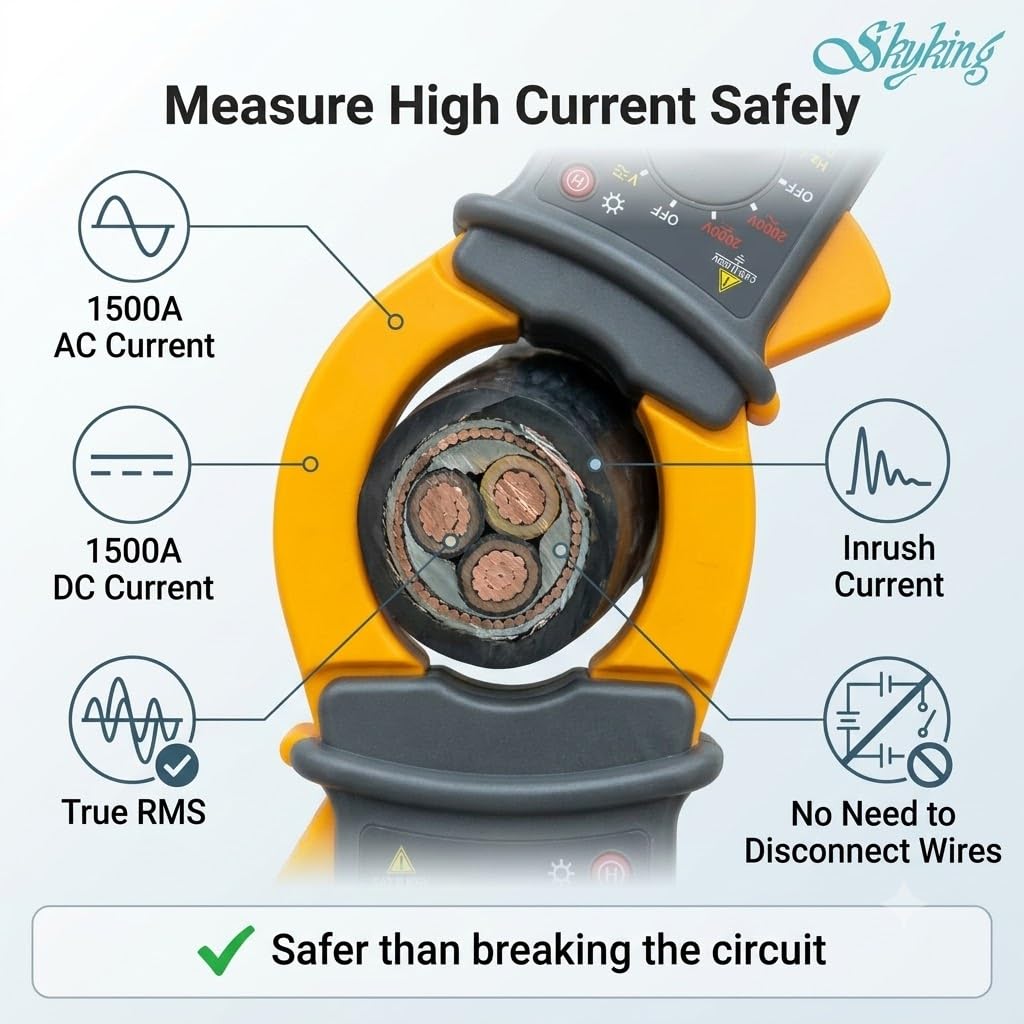

• 1500A DC/AC Current Measurement – Suitable for high-current electrical and solar applications.

• 2000V DC/AC Voltage Measurement – Designed for high-voltage testing requirements.

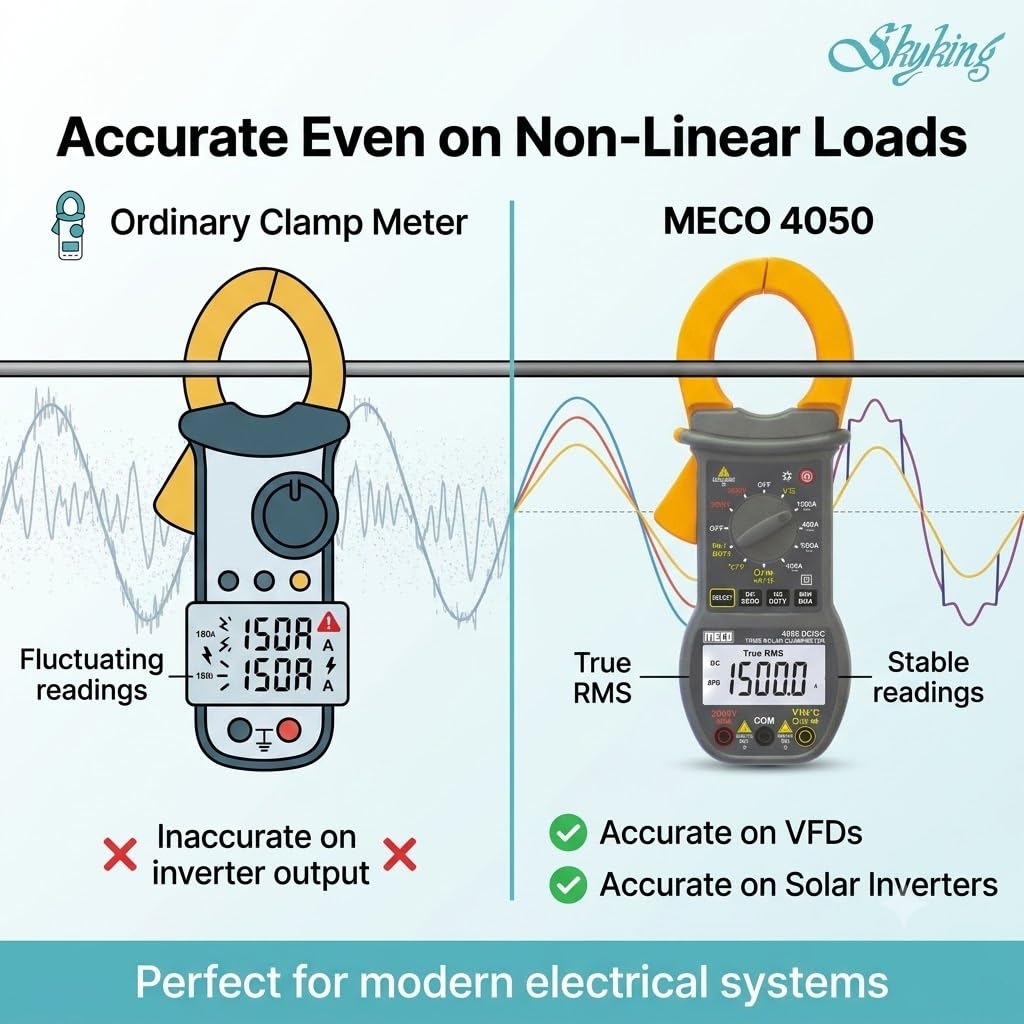

• True RMS Technology – Provides reliable readings for sinusoidal and non-linear waveforms.

• Solar PV Testing – Designed with photovoltaic system installation and maintenance applications in mind.

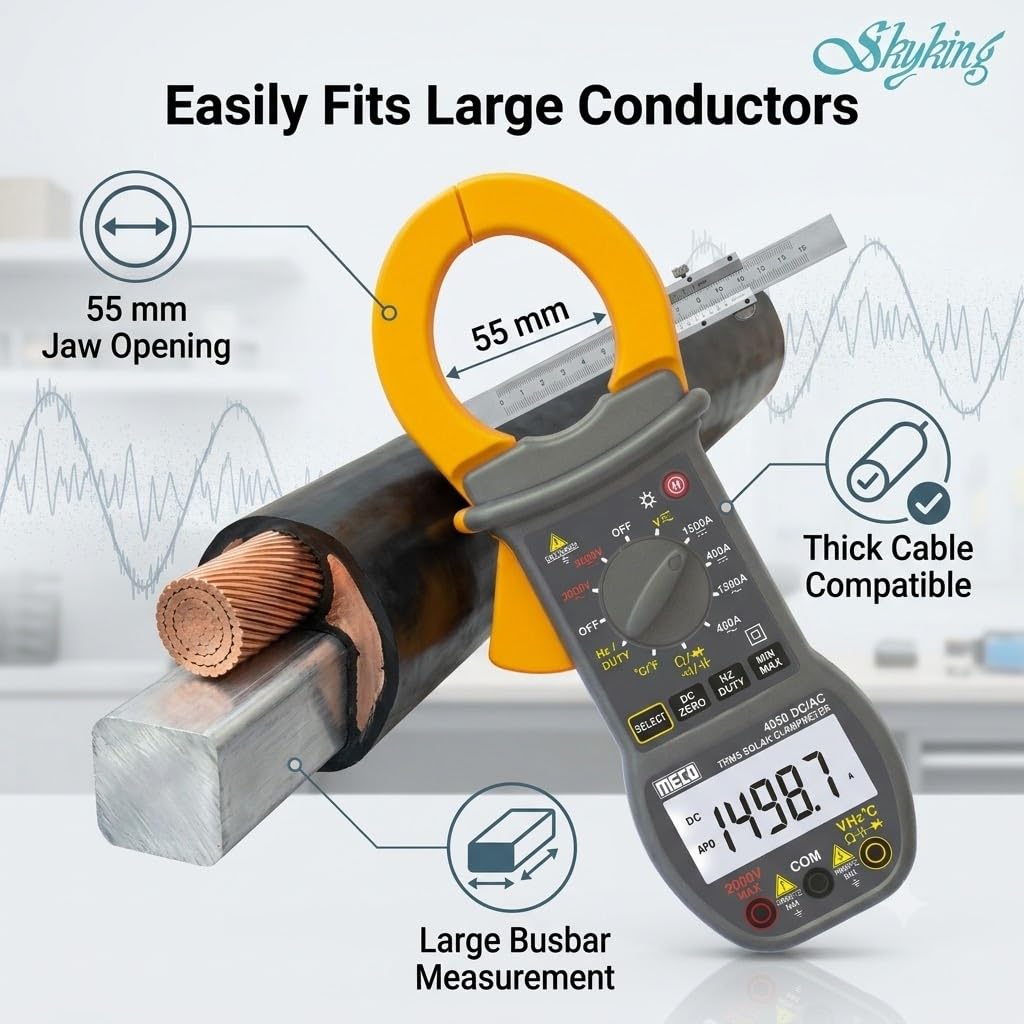

• Wide 55mm Jaw Opening – Allows clamping around larger cables and conductors.

• Multiple Measurement Functions – Measures current, voltage, resistance, capacitance, frequency and temperature.

• MIN/MAX & Data Hold – Helps capture changing readings during electrical troubleshooting.

• Diode & Continuity Testing – Useful for circuit diagnostics and component testing.

• Backlit LCD Display – Provides clearer readings in different working conditions.

• Compact Professional Design – Suitable for electricians, solar technicians and maintenance professionals.

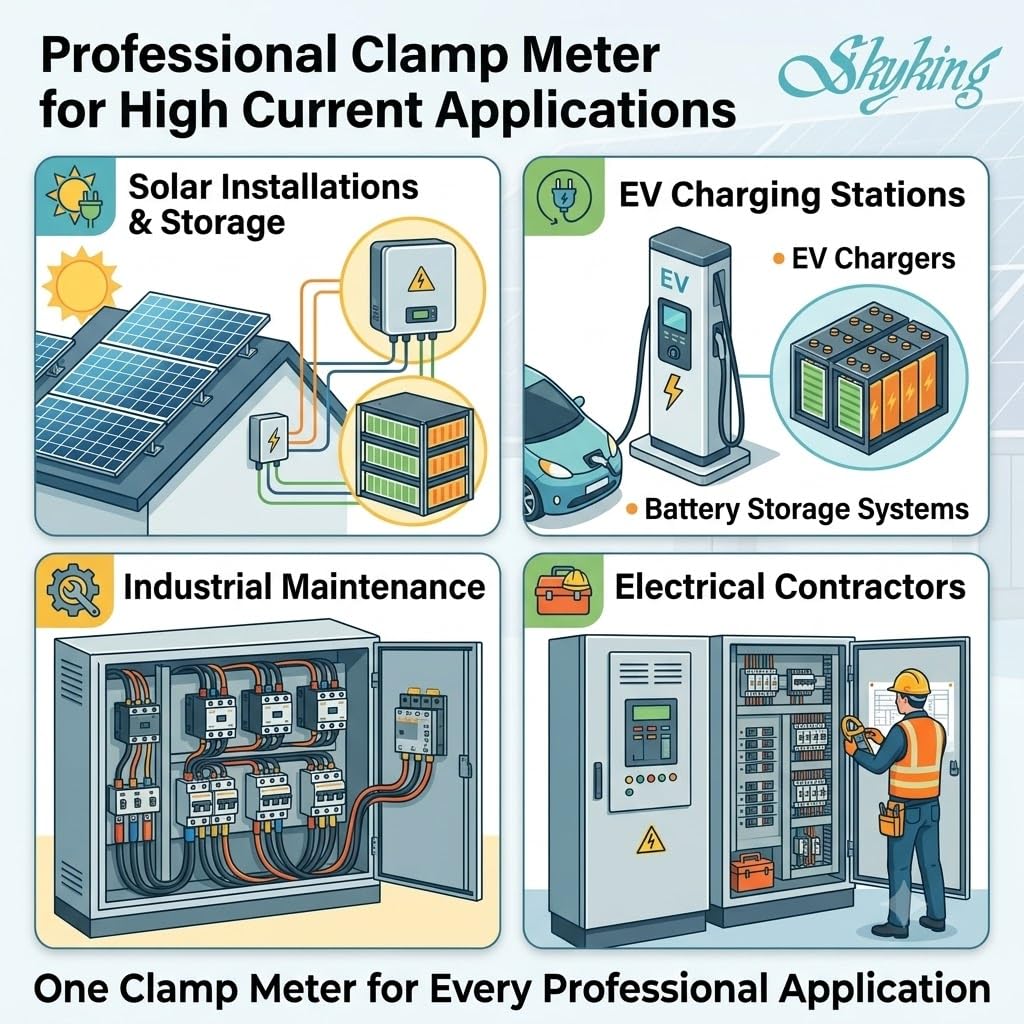

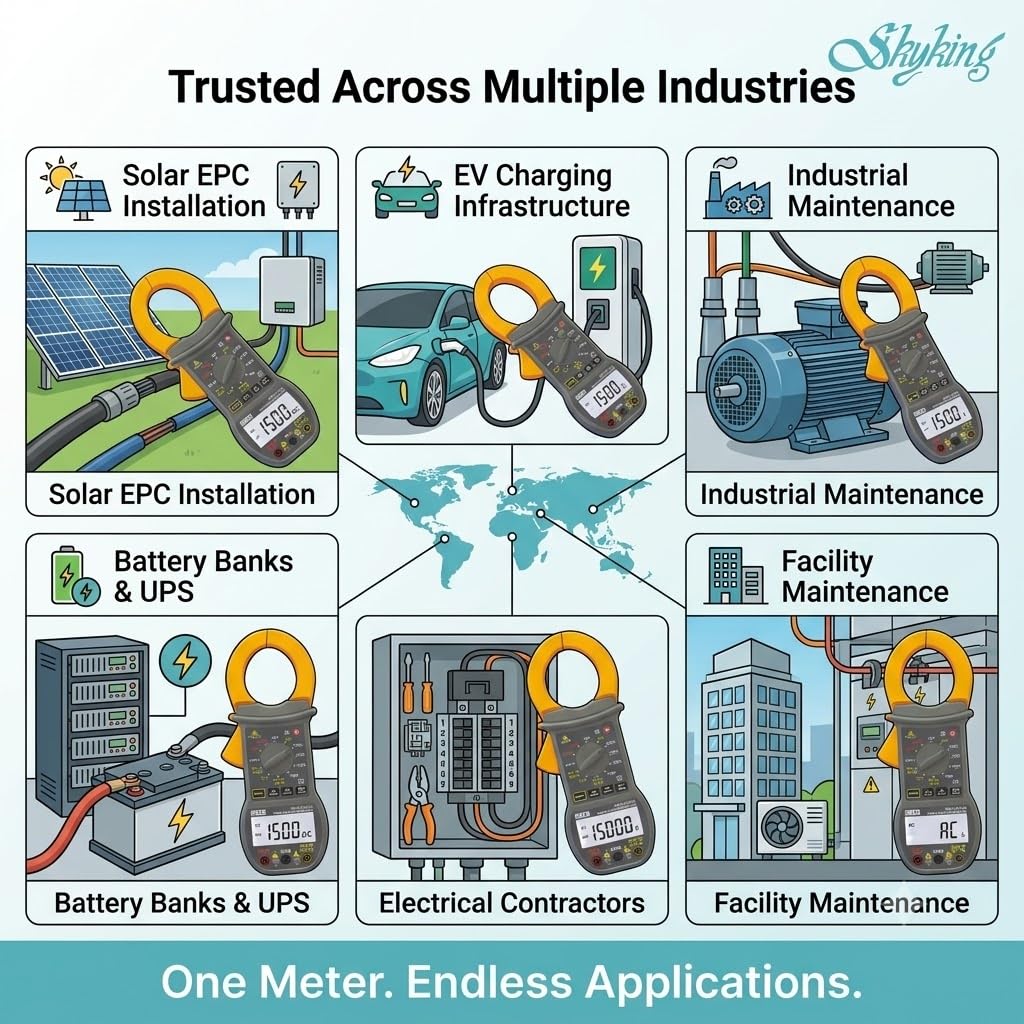

Applications

• Solar Panel Installation & Maintenance

• Solar PV System Testing

• DC Electrical System Testing

• Industrial Electrical Diagnostics

• Electrical Maintenance

• Residential Electrical Testing

• Commercial Electrical Testing

• HVAC System Testing

• Automotive Electrical Troubleshooting

• Electrical Workshop Applications

• High-Current Cable Testing

• High-Voltage Electrical Measurement

Measurement Functions

The MECO 4050 provides a broad range of measurement capabilities, including:

• DC Current

• AC Current

• DC Voltage

• AC Voltage

• Resistance

• Capacitance

• Frequency

• Temperature

• Duty Cycle

• Diode Test

• Audible Continuity

• MIN/MAX

• ΔREL

• Data Hold

Solar Application

The MECO 4050 Solar Clamp Meter is designed for technicians working with photovoltaic installations and high-voltage DC systems. Its high current and voltage measurement capability makes it suitable for checking electrical parameters during solar panel installation, commissioning, troubleshooting and maintenance.
