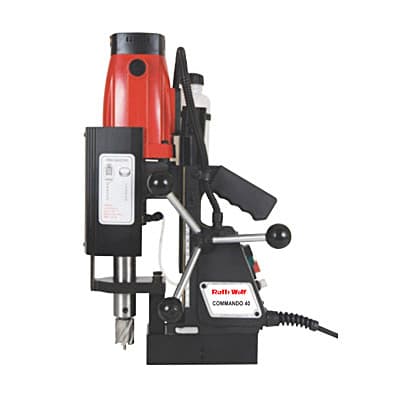

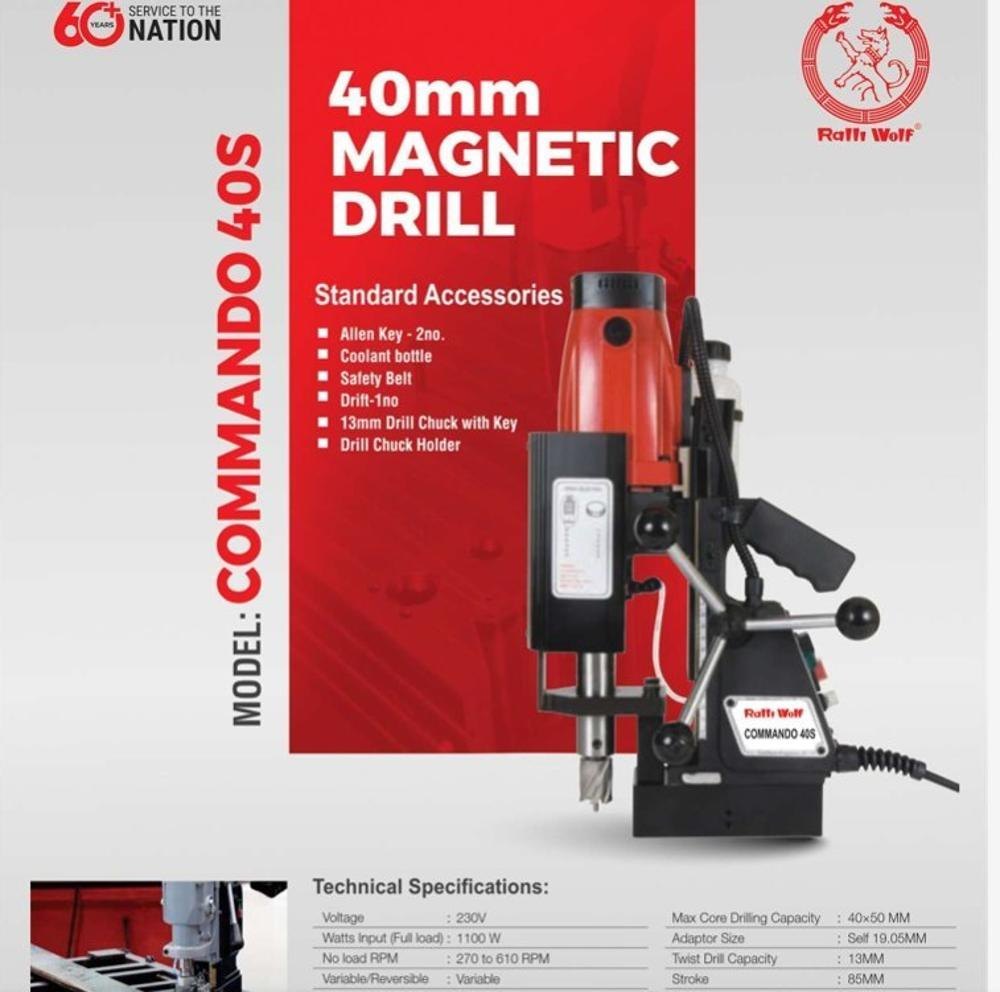

The Ralli Wolf COMMANDO 40S Magnetic Drill Machineis designed for accurate and efficient drilling in steel plates, structural steel and metal fabrication applications. With a full-load power input of 1100W and a variable six-speed system, this machine supports core drilling up to 40mm diameter and 50mm depth.
Its magnetic base provides strong holding force on suitable ferrous metal surfaces, while the 85mm stroke supports controlled drilling operations. The machine also accommodates twist drilling up to 13mm and features a 19.05mm self-adaptor. It is suitable for industrial workshops, fabrication units and on-site metalworking.
Key Features
1100W full-load power input
Maximum core drilling capacity of 40mm diameter × 50mm depth
Six-speed variable operation
No-load speed range of 270–610 RPM
Magnetic adhesion force of 8000N
Maximum twist drill capacity of 13mm
19.05mm self-adaptor
85mm spindle stroke
Compact magnetic base for positioning on suitable steel surfaces
Includes a drill chuck and key for compatible twist-drilling applications
Applications
Structural steel drilling
Steel plate and metal fabrication
Industrial maintenance and repair
Engineering and manufacturing workshops
Construction and infrastructure projects
Drilling holes in steel beams and metal sections
On-site metalworking applications
Technical Specifications
Specification
Details
Brand
Ralli Wolf
Model
COMMANDO 40S
Product Type
Magnetic Core Drilling Machine
Rated Voltage
230V AC
Full-Load Power Input
1100W
Maximum Core Drilling Capacity
40mm diameter × 50mm depth
No-Load Speed
270–610 RPM
Speed Selection
6-speed
Operation
Variable speed
Magnetic Adhesion
8000N
Adaptor Size
Self-adaptor, 19.05mm
Maximum Twist Drill Capacity
13mm
Stroke
85mm
Magnet Dimensions
165 × 80 × 45mm
Net Weight (without accessories)
Approximately 13.7kg
Package Details
Standard accessories listed for the Ralli Wolf COMMANDO 40S include:
