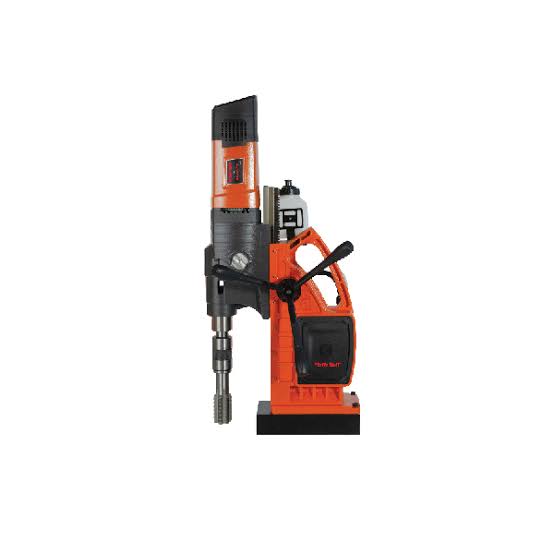

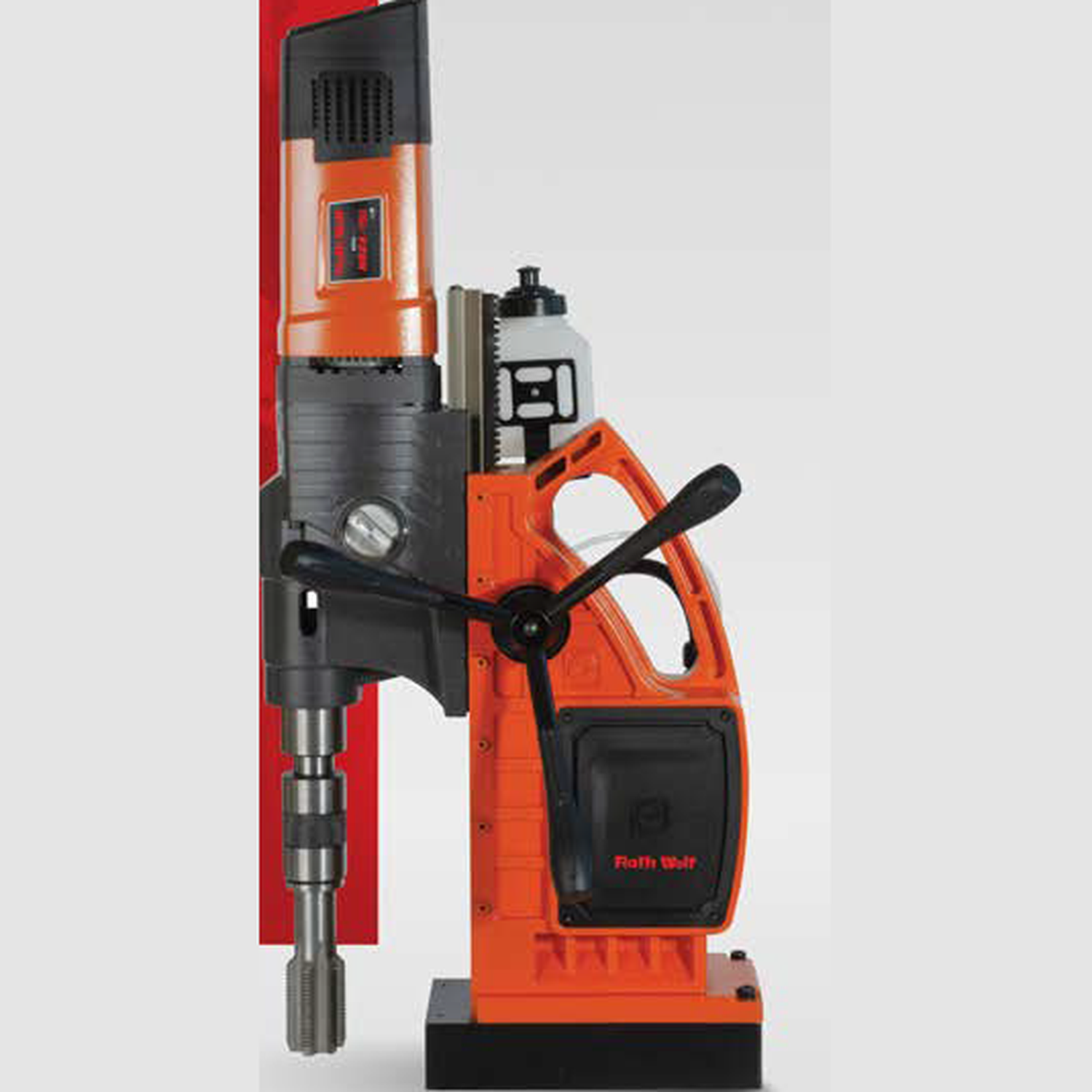

Ralli Wolf MEGA 150 3080W Magnetic Core Drill Machine with 150mm Drilling Capacity, 24500N Magnetic Adhesion and MT4 Adaptor
Ralli Wolf MEGA 150 3080W Magnetic Core Drill Machine with 150mm Drilling Capacity, 24500N Magnetic Adhesion and MT4 Adaptor
Ralli Wolf MEGA 150 3080W Magnetic Core Drill Machine with 150mm Drilling Capacity, 24500N Magnetic Adhesion and MT4 Adaptor
Ralli Wolf MEGA 150 3080W Magnetic Core Drill Machine with 150mm Drilling Capacity, 24500N Magnetic Adhesion and MT4 Adaptor
files/Mega-150-magnetic_drilling_machine.png
files/ralli-wolf-magnetic-core-drill-mega-150.jpg

Ralli Wolf MEGA 150 150mm Magnetic Core Drilling Machine 3080W, 4-Speed Variable and Reversible, 24500N Magnetic Adhesion, 57mm Twist Drill Capacity and M50 Tapping

RALLI WOLF

Product Code:

Availability:Out of stock

Rs. 286,500/- 286,500
Ask about this product
Add to Compare

The Ralli Wolf MEGA 150 Magnetic Core Drill Machine is a heavy-duty drilling solution designed for industrial fabrication, structural steelwork and demanding metalworking applications. Powered by a 3080W motor, this machine supports large-diameter core drilling, twist drilling, reaming and tapping on suitable ferrous metal surfaces.

Its four-speed variable and reversible operation provides flexibility for different drilling requirements, with speeds ranging from 40 to 720 RPM. The powerful 24,500N magnetic base helps secure the machine to compatible steel surfaces during operation. With a maximum core drilling capacity of 150mm, a 57mm twist drill capacity and M50 tapping capability, the MEGA 150 is suitable for heavy engineering workshops and construction projects.

Key Features

  • Powerful 3080W Motor: Designed for heavy-duty industrial drilling tasks.
  • 150mm Core Drilling Capacity: Supports large-diameter core drilling.
  • Four-Speed Operation: Speed ranges of 40–100, 70–180, 180–450 and 290–720 RPM.
  • Variable and Reversible Function: Provides flexible drilling control.
  • 24,500N Magnetic Adhesion: Helps hold the machine firmly on compatible magnetic steel surfaces.
  • 57mm Twist Drill Capacity: Suitable for large-diameter twist drilling.
  • M50 Tapping Capacity: Supports threading applications up to the specified capacity.
  • MT4 Adaptor System: Designed for compatible core-drilling accessories.
  • 360mm Stroke: Provides extended travel for demanding drilling operations.
  • Coolant Bottle and Safety Belt: Included among the standard accessories.
  • Heavy-Duty Construction: Suitable for fabrication shops and industrial job sites.

Applications

  • Structural steel fabrication
  • Steel plate and beam drilling
  • Industrial metalworking
  • Bridge and infrastructure fabrication
  • Shipbuilding and marine engineering
  • Heavy machinery maintenance
  • Pipeline and pressure-vessel fabrication
  • Large-diameter core drilling
  • Metal reaming and tapping operations

Technical Specifications

Specification Details
Brand Ralli Wolf
Model MEGA 150
Product Type Magnetic Core Drill Machine
Rated Voltage 230V AC
Rated Input Power 3080W
Speed Selection 4 speeds
No-Load Speed 40–720 RPM
Speed Settings 40–100 / 70–180 / 180–450 / 290–720 RPM
Variable / Reversible Yes
Maximum Core Drill Capacity 150mm diameter
Maximum Cutting Depth 150mm
Twist Drill Capacity 57mm
Tapping Capacity M50
Adaptor Size MT4
Magnetic Adhesion 24,500N
Stroke 360mm
Magnet Size (L × W × H) 245 × 125 × 50mm
Approximate Net Weight 32kg without accessories

Package Details

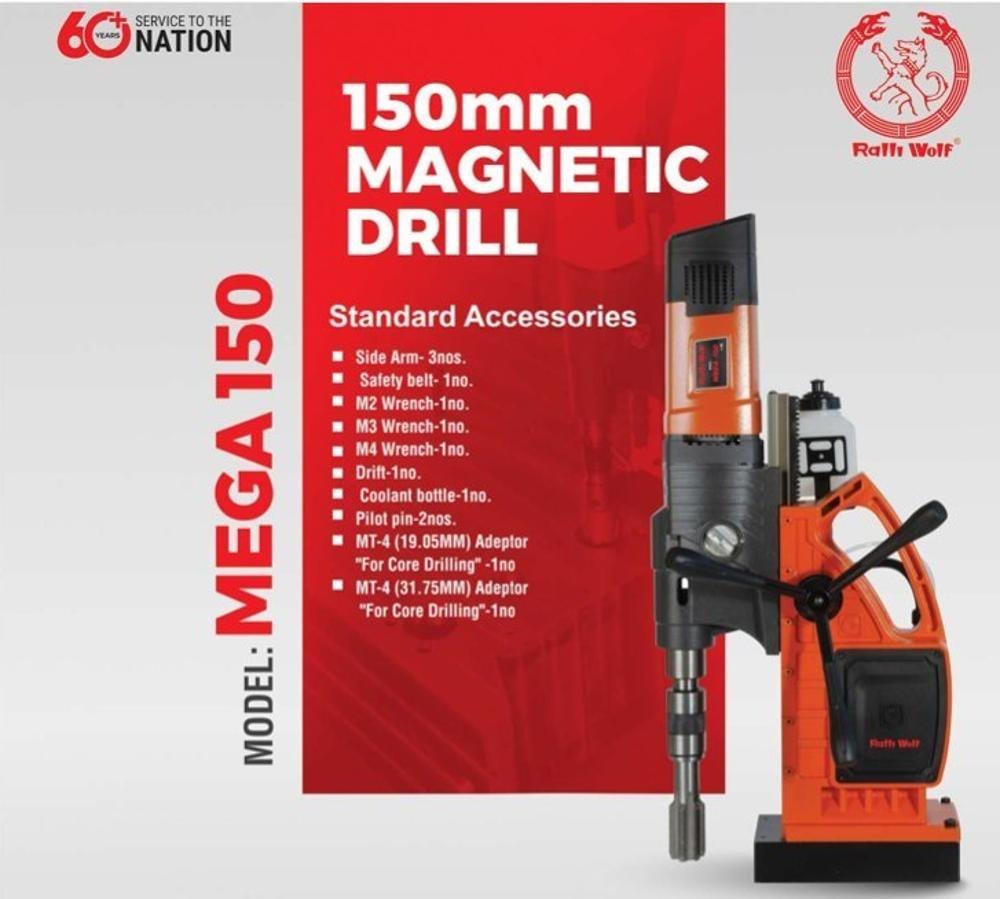

Standard accessories listed for the MEGA 150 include:

  • 1 × Ralli Wolf MEGA 150 Magnetic Core Drill Machine
  • 3 × Side Arms
  • 1 × Safety Belt
  • 1 × M2 Wrench
  • 1 × M3 Wrench
  • 1 × M4 Wrench
  • 1 × Drift
  • 1 × Coolant Bottle
  • 2 × Pilot Pins
  • 1 × MT4 19.05mm Core Drilling Adaptor
  • 1 × MT4 31.75mm Core Drilling Adaptor
