Ralli Wolf RT20P TIG 200P 200A Pulse DC TIG Inverter Welding Machine with MMA Function, High-Frequency Arc Starting, Digital Current Display and Adjustable Pulse Control – 220V Single Phase

RALLI WOLF

Product Code:

Availability:Out of stock

Rs. 0/- 0
Ask about this product
Add to Compare

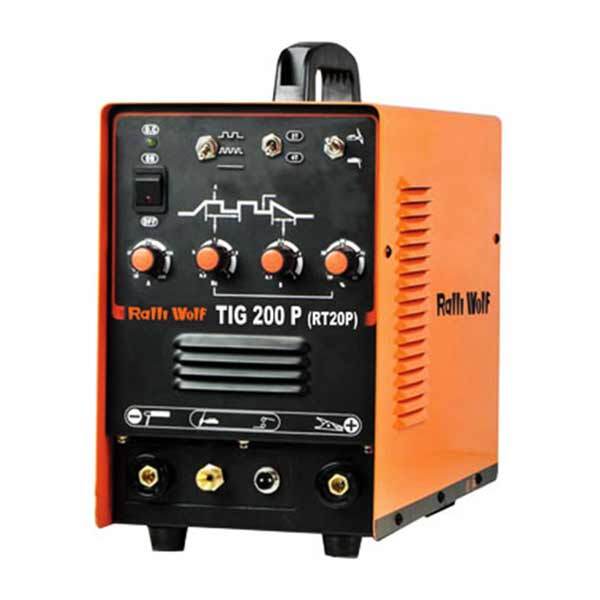

The Ralli Wolf RT20P TIG 200P Pulse DC Inverter Welding Machine is designed for precision welding, light and medium fabrication, decorative metalwork and industrial maintenance. It combines high-frequency DC TIG welding with MMA (stick) welding, providing versatility for a variety of workshop applications.

Its pulse TIG function offers adjustment of pulse frequency, base current and peak current, helping welders control heat input and achieve consistent weld results. The adjustable down-slope function supports controlled weld finishing, while the digital meter allows users to preset and monitor welding current.

Operating on a 220V single-phase power supply, the RT20P is a practical option for professional welders and fabrication workshops requiring pulse welding capability in a compact inverter machine.


Key Features

  • 200A maximum welding output for workshop and fabrication applications.
  • Pulse DC TIG welding with adjustable pulse parameters.
  • MMA welding function for manual electrode welding.
  • MOSFET inverter technology for reliable welding performance.
  • High-frequency arc starting for convenient TIG ignition.
  • Digital current display to preset and monitor welding current.
  • Adjustable down-slope from 0–5 seconds for controlled weld termination.
  • 2T/4T trigger functions for different welding workflows.
  • Pre-flow and post-flow functions to help manage shielding gas.
  • 220V single-phase input for compatible power supplies.
  • Suitable for light and medium fabrication, decoration and pipe welding.

Applications

  • Light and medium metal fabrication
  • Decorative and ornamental metalwork
  • Stainless steel and mild steel welding
  • Pipe and pressure-vessel fabrication
  • Furniture and metal component manufacturing
  • Workshop maintenance and repair
  • Construction and engineering work
  • Precision TIG welding requiring pulse control

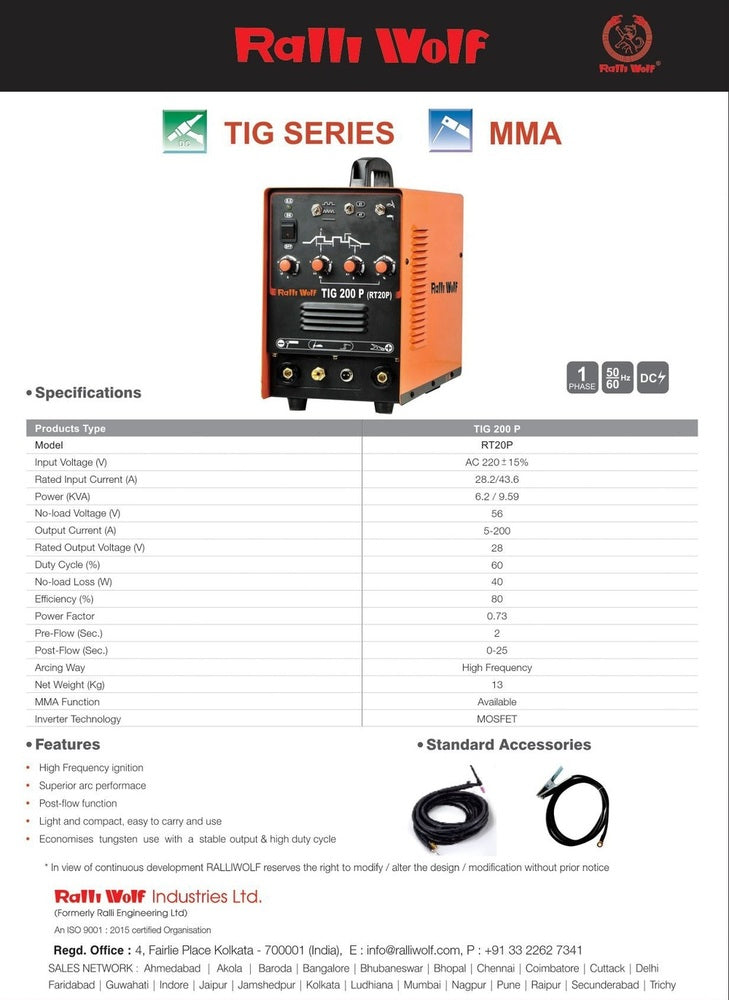

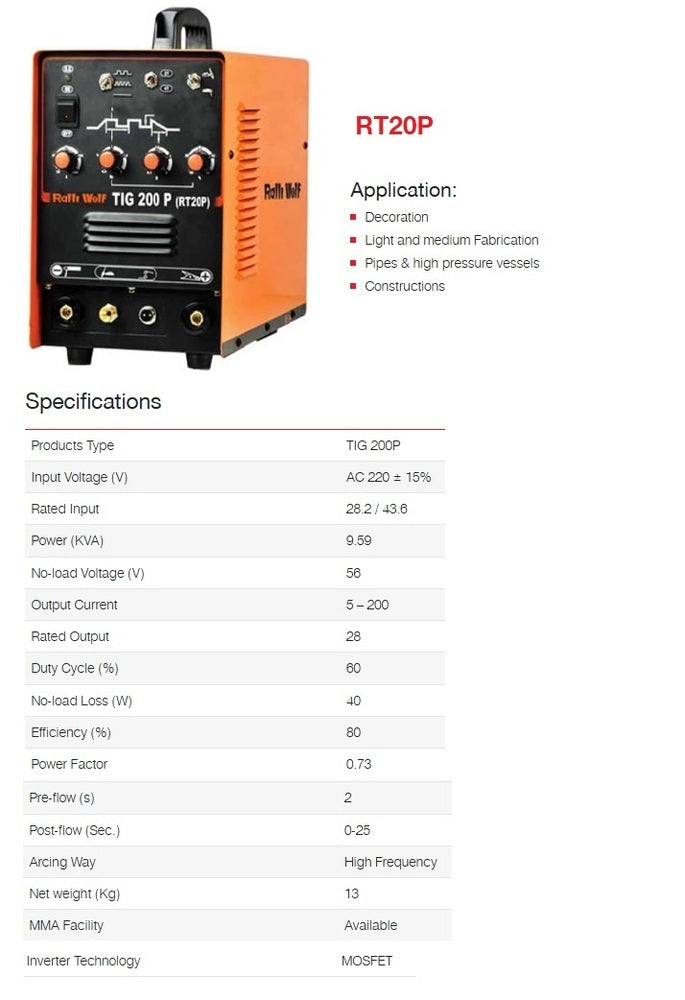

Technical Specifications

Specification Details
Brand Ralli Wolf
Model RT20P
Series TIG 200P
Product Type Pulse DC TIG Inverter Welding Machine
Maximum Welding Current 200A
Input Supply AC 220V ±15%, 50Hz
Phase Single Phase
Power Rating 6.2 / 9.59 kVA
Output Current Range 5–200A
Rated Output Voltage 28V
No-Load Voltage 56V
Duty Cycle 60%
Inverter Technology MOSFET
Pulse Mode Available
Welding Functions DC TIG and MMA
Arc Starting High Frequency
Down-Slope Adjustment 0–5 seconds
Pre-Flow Time 2 seconds
Post-Flow Time 0–5 seconds
No-Load Loss 40W
Efficiency 80%
Power Factor 0.73
Net Weight Approx. 8kg (manufacturer catalogue)

Package Details

Accessories may vary by supplier. Commonly listed accessories include:

  • Earthing clamp
  • Electrode holder
