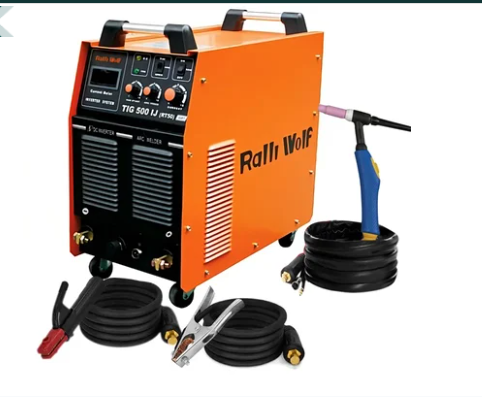

Ralli Wolf RT50 TIG 500IJ 500A Heavy Duty IGBT DC Inverter TIG Welding Machine with MMA Function, High-Frequency Ignition and Remote Control Facility – 415V 3-Phase
Ralli Wolf RT50 TIG 500IJ 500A Heavy Duty IGBT DC Inverter TIG Welding Machine with MMA Function, High-Frequency Ignition and Remote Control Facility – 415V 3-Phase
The Ralli Wolf RT50 TIG 500IJ is a heavy-duty DC inverter welding machine designed for high-current industrial welding and demanding fabrication applications. Powered by IGBT inverter technology, it provides an adjustable output current range of 10–500A for TIG and MMA welding operations.
The machine features high-frequency ignition for reliable arc starting, adjustable up-slope and down-slope controls, and gas pre-flow and post-flow functions to support controlled welding and protect the tungsten electrode. Its MMA facility provides additional flexibility for stick welding applications.
Operating on a 415V three-phase power supply, the RT50 is suitable for heavy fabrication workshops, pipe welding, pressure vessel manufacturing, structural steelwork and industrial production environments.
Key Features
Heavy-duty 500A DC TIG inverter welding machine
Advanced IGBT inverter technology
Dual TIG and MMA welding functions
High-frequency ignition for reliable arc starting
Adjustable up-slope and down-slope functions
Gas pre-flow and post-flow controls
Remote current control facility
Arc force function for anti-sticking during MMA welding
High open-circuit voltage for improved arc starting
60% duty cycle
High efficiency and power factor
Suitable for demanding industrial welding operations
Applications
Heavy industrial fabrication
Stainless steel and mild steel welding
Pipe and pressure vessel manufacturing
Tube mill production
Structural steel fabrication
Shipbuilding and railway industries
Oil and gas equipment manufacturing
Power generation facilities
Industrial maintenance and repair
Technical Specifications
Specification
Details
Brand
Ralli Wolf
Model
RT50
Welding Model
TIG 500IJ
Machine Type
DC Inverter TIG / MMA Welding Machine
Input Voltage
AC 415V ±15%
Phase
3-Phase
Frequency
50/60 Hz
Rated Input Current
26.2 / 35.0 A
Rated Input Power
25.2 kVA
No-Load Voltage
70 V
Output Current Range
10–500 A
Rated Output Voltage
38 V
Duty Cycle
60%
No-Load Loss
80 W
Efficiency
85%
Power Factor
0.93
Gas Pre-Flow
2.5 seconds
Gas Post-Flow
0–5 seconds
Arc Starting Method
High Frequency
Welding Processes
DC TIG and MMA
Inverter Technology
IGBT
Approximate Net Weight
42 kg
Package Details
Ralli Wolf RT50 TIG 500IJ welding machine
TIG torch cable
MMA electrode holder cable
Earthing clamp and cable, subject to the supplied package
