-29%

RILON TIG 200M AMPS MOSFET PULSE

Product Code:

Availability:In stock

Rs. 32,214.00 Rs. 23,010.00 23,010.00

Qty

Ask about this product

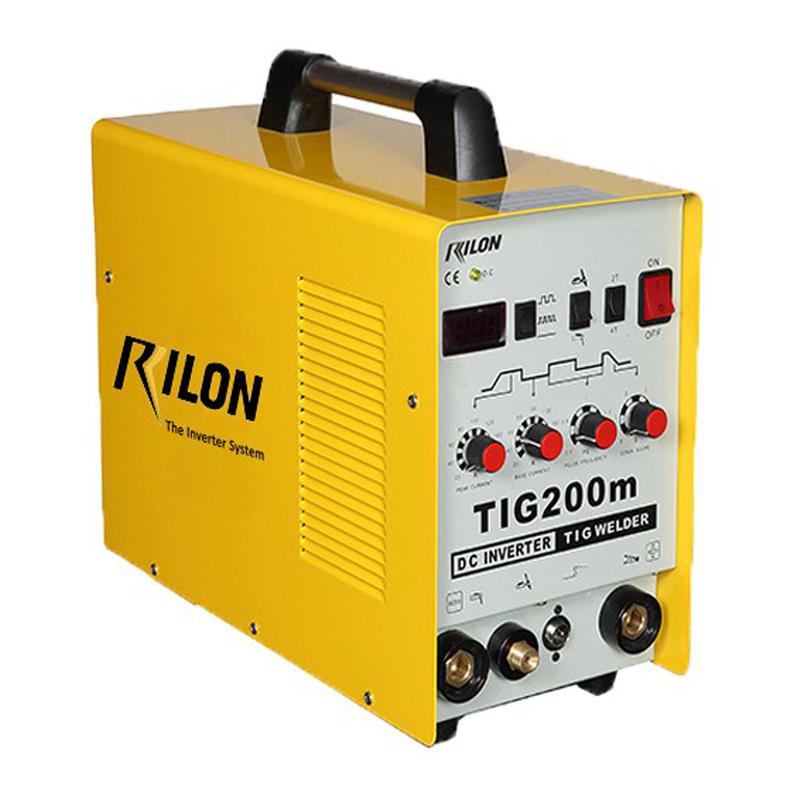

RILON TIG 200M AMPS MOSFET PULSE

TIG 200M AMPS Mosfet Basic Pulse is one of the machine Rilon TIG series.

Features:

  • Dual welding process: TIG DC / MMA (Stick)
  • Arc stability and control.
  • With HF arc starting.
  • Possibility of choosing between welding cycle 2T or 4T
  • Pulse Freqency selectable and adjustable.
  • Slope down time adjustable.
  • Automatic Hot Start boosts the current during starting to make striking an arc easier.
  • Digital instrument for the welding current.
  • Auto-Protection against over-voltage,over-current and over-heated.
  • Smaller, lighter and portable, this equipment is protected by a solid metal casing.

Specification:

Parameters Specification
Rated Input Voltage(V) AC220V±15% 1P
Arc-Initiating(TIG) H-F
Rated Input Current(A) TIG:28.2 MMA:43.8
Efficiency(%) 80
Input Frequency (HZ) 50/60
Power Factor 0.73
Rated Input Power(KVA) TIG:6.2 MMA:9.6
Protection Grade IP21
Open Circuit Voltage(V) 56
Weight(kg) 13
Current Range(A) 10-200
Dimension(mm) 432*204*302
Duty cycle at maximum current 60%@25
