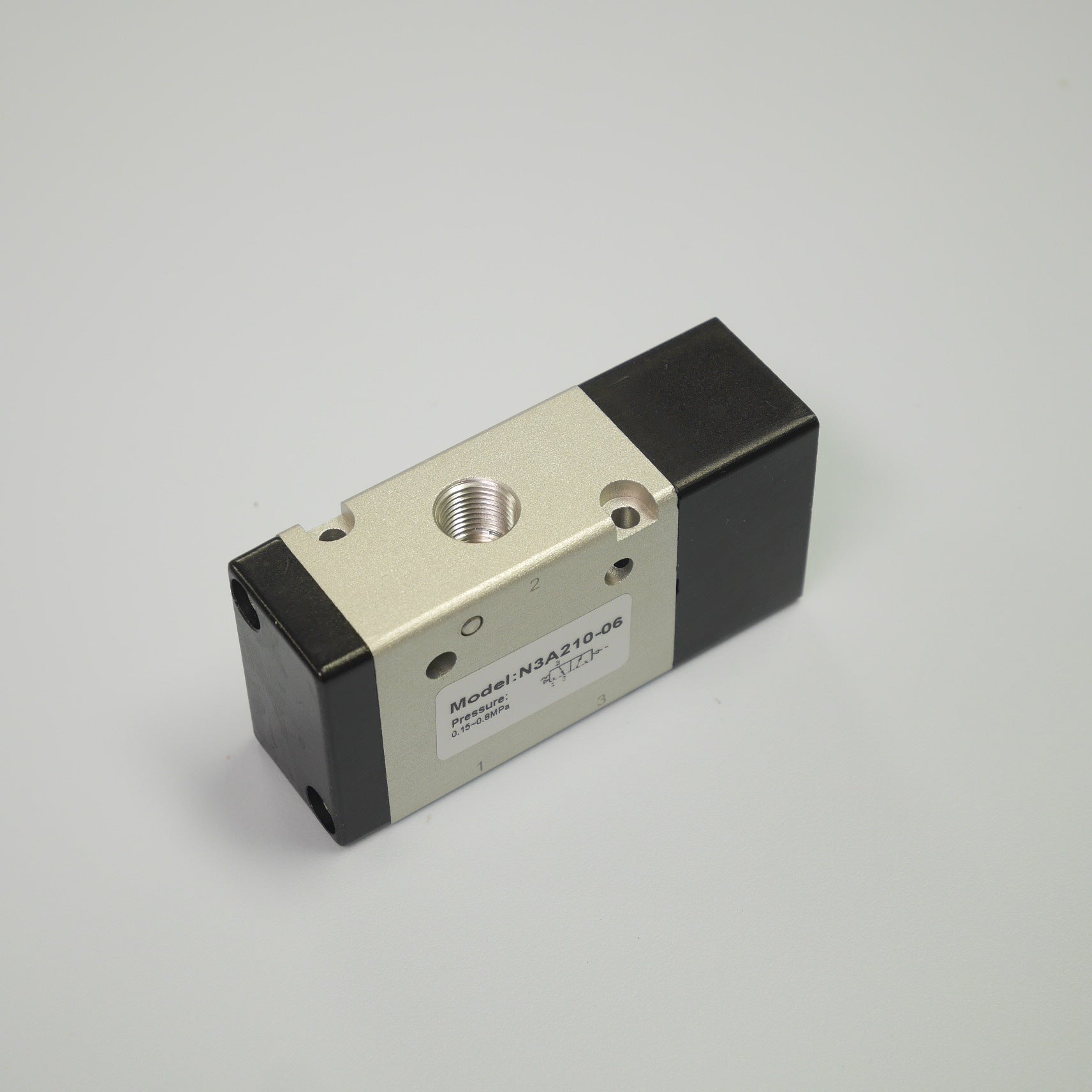

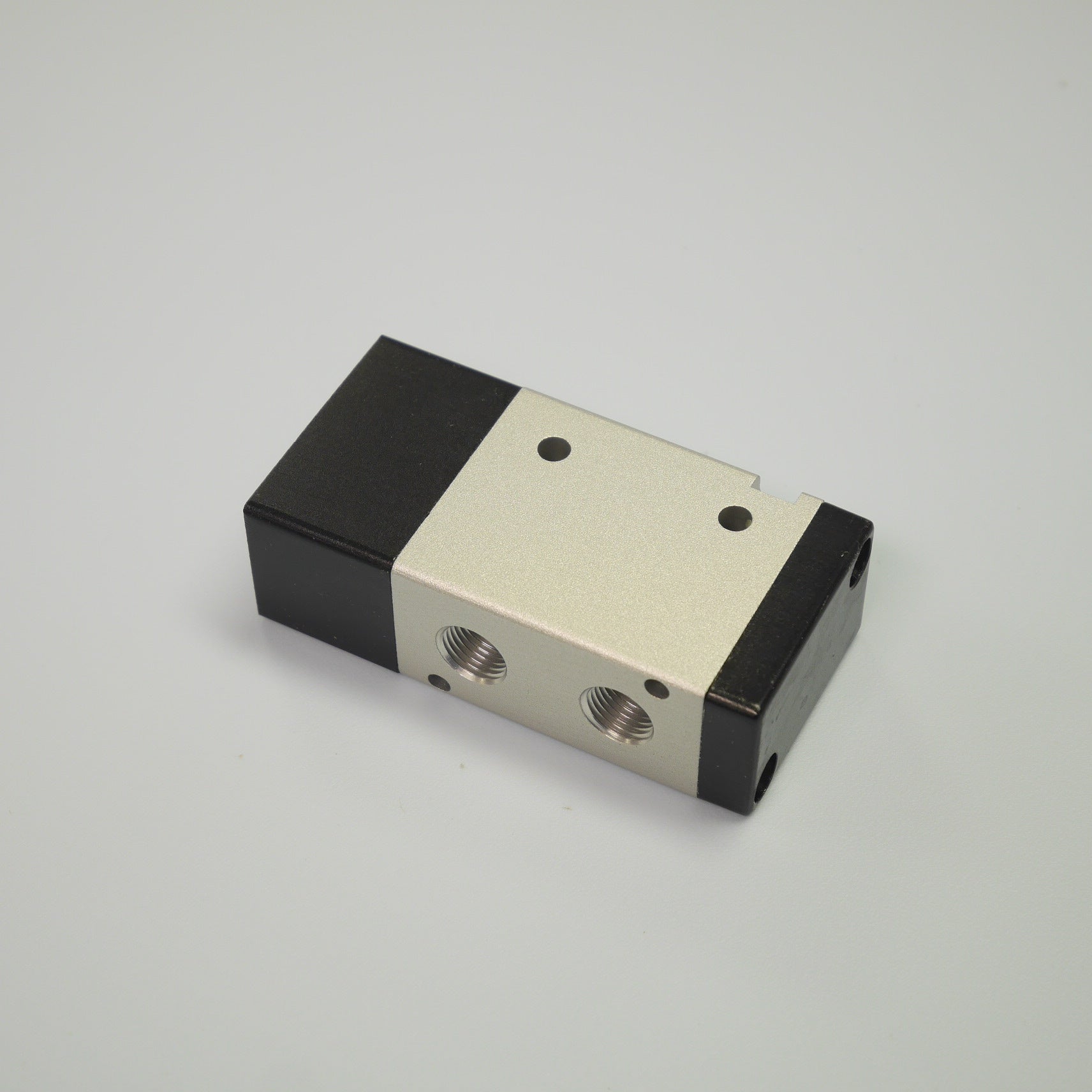

TECHNO 3A210-06 3/2 SINGLE PILOT VALVE 1/8 INCH

Product Code:

Availability:In stock

Rs. 610.00 Rs. 550.00 550.00

TECHNO 3A210-06 3/2 SINGLE PILOT VALVE 1/8 INCH

Description

Model:3A210-06(NPT)
Valve Type:3/2 way Air Pilot Valve
Effective Cross Sectional Area:14 sq mm CV = 0.78
Coil Type:Single Pilot Spring Return
Port Size:1/8″ NPT, 1/8″ NPT Air Pilot Port
Connection:Threaded
Initial Status:Normal Close
Working Medium:40 Micron Filtered Air
Operation:Internal Piloted
Working Pressure:0.15 – 0.8 Mpa / 22 – 116 psi
Max. Tested Pressure:1.2 Mpa / 174 psi
Aurmbient Temperate:5 – 50 ℃ 41 – 122 ℉
