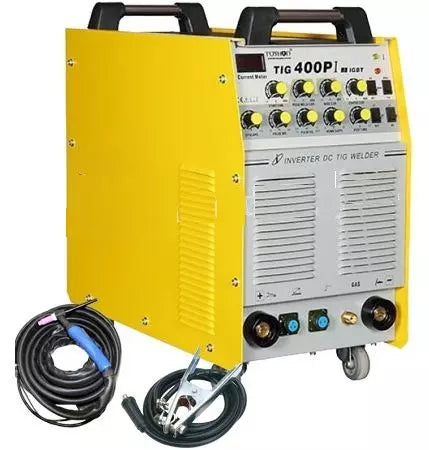

Toshweld Tig 400A 3 Phase MOSFET Welding Machine
Toshweld Tig 400A 3 Phase MOSFET Welding Machine
The Toshweld TIG 400A 3 Phase MOSFET Welding Machine is an ultra-heavy-duty industrial welder. It is engineered to perform both high-precision DC TIG welding and manual stick (MMA) welding operations. Powered by a robust 415V three-phase grid, it features high-frequency inverter circuits utilizing powerful MOSFET tech that steps up the supply frequency to 100 kHz. This slashes energy loss and ensures laser-smooth arc stability on carbon steel, stainless steel, and copper.
TECHNICAL DETAILS:
Model |
TIG 400 MOSFET |
Input Voltage |
3 Phase AC 415V ± 15% |
Frequency |
50 / 60 Hz |
Output Current Range |
10 to 400 Amps |
Duty Cycle |
60% |
Arc Ignition |
High-Frequency (HF) |
Input Power Capacity |
13.1 kVA (MMA) / 18.1 kVA (TIG) |
No-Load Voltage |
60 V to 68 V |
Tungsten Rod Diameter |
1.6 mm to 4.0 mm |
Electrode Size (ARC) |
2.0 mm to 6.0 mm |
Power Factor / Efficiency |
0.93 / 85% |
Net Weight |
~28 kg to 33 kg |
