Wadfow 15M Self-Leveling Line Laser WLE1M03 | Red Beam Horizontal & Vertical Cross-Line Laser Level with ±2mm Accuracy, 4° Self-Leveling & Cross Lock Function for Construction, Tiling, Carpentry & Installation

Wadfow

Product Code:

Availability:In stock

Rs. 2,650/- 2,650

Qty

Ask about this product
Add to Compare

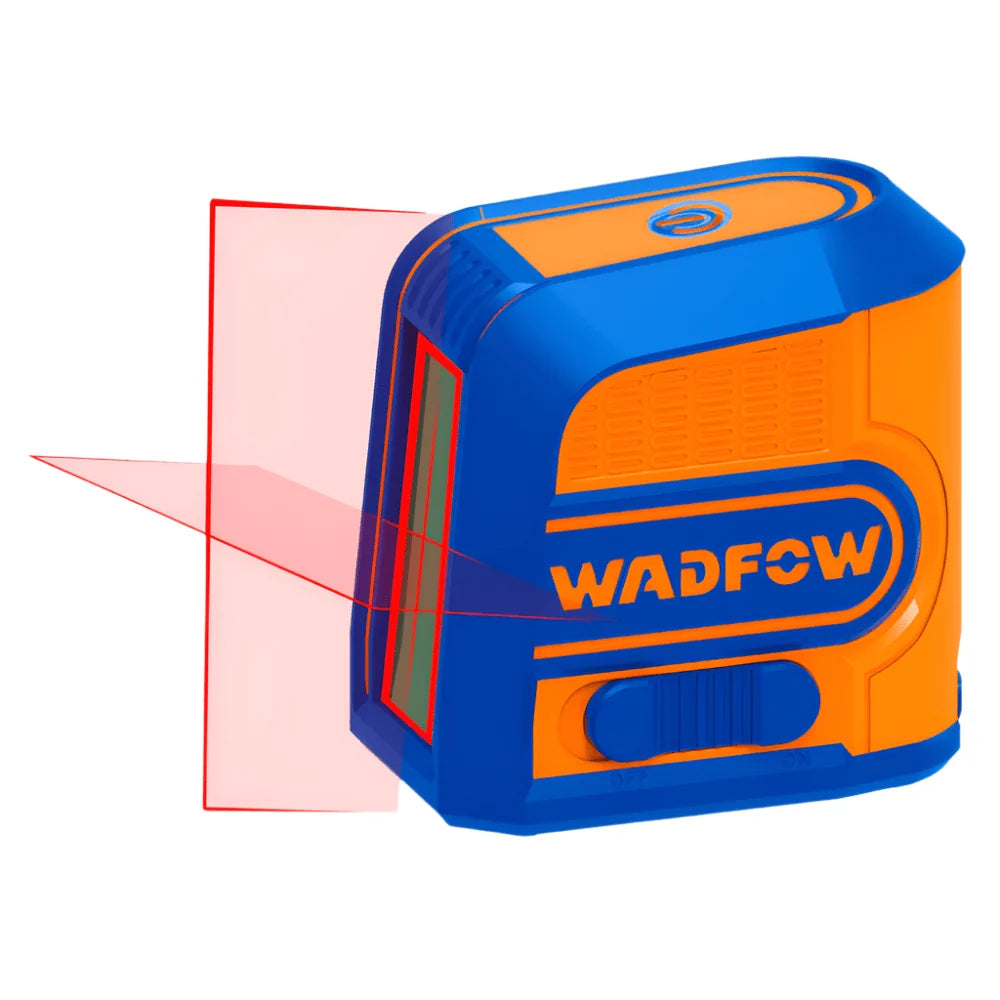

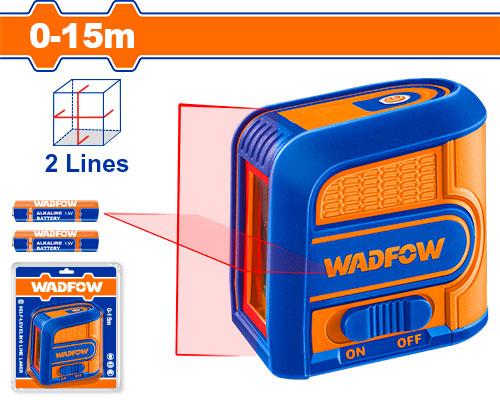

The Wadfow WLE1M03 15M Self-Leveling Line Laser is a compact and practical red-beam laser level designed to provide accurate horizontal and vertical reference lines for construction, installation and general alignment work. It offers a working range of 0–15 metres, making it suitable for indoor professional and DIY applications.

The laser provides levelling accuracy of ±2mm at 5m and line accuracy of ±2mm at 5m. Its self-levelling system automatically compensates for small positioning deviations within a ≤4° self-levelling angle, with a levelling time of ≤3 seconds.

The WLE1M03 produces both horizontal and vertical lines, allowing users to establish cross-line references for tasks such as tile alignment, cabinet installation, partition work, ceiling installation, carpentry, electrical installation and general construction layout. The integrated laser cross-lock function helps secure the laser during transportation or when manual positioning is required.

It uses a 635 ±5nm red laser classified as Class II, <1mW and is powered by two LR6 AA 1.5V batteries. The unit is specified for operation from 0°C to +40°C, with a storage temperature range of -10°C to +50°C.

Product Features & Specifications

  • Brand: Wadfow
  • Product Type: Self-Leveling Line Laser / Laser Level
  • Model Number: WLE1M03
  • Laser Colour: Red
  • Working Range: 0–15 metres
  • Levelling Accuracy: ±2mm at 5m
  • Line Accuracy: ±2mm at 5m
  • Levelling Time: ≤3 seconds
  • Self-Leveling Angle: ≤4°
  • Laser Type: 635 ±5nm red laser
  • Laser Class: Class II, <1mW
  • Line Functions: Horizontal and vertical line projection
  • Cross-Line Function: Projects horizontal and vertical reference lines for alignment applications.
  • Laser Cross-Lock Function: Helps lock the laser cross function when transporting or manually positioning the tool.
  • Automatic Leveling: Automatically compensates for minor positioning errors within its specified self-leveling range.
  • Fast Setup: Achieves self-leveling in 3 seconds or less, helping reduce setup time.
  • Power Supply: 2 × LR6 AA batteries, 1.5V each
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -10°C to +50°C
  • Packaging: Double blister
  • Barcode: 6942431486852.
  • Design: Compact format suitable for convenient positioning during indoor alignment work.
  • Accuracy Advantage: Provides clear reference lines for straight, level and vertically aligned installation.
  • Suitable Users: Construction workers, tile installers, carpenters, electricians, interior installers, fabricators and DIY users.

Suitable Applications

  • Tile Installation & Alignment
  • Wall & Floor Leveling
  • Cabinet Installation
  • Carpentry & Woodworking
  • Ceiling Installation
  • Partition & Drywall Work
  • Door & Window Installation
  • Electrical Installation
  • Plumbing Layout
  • Interior Decoration
  • Construction Layout & Alignment
  • General Workshop Projects

Key Benefits

  • 15m working range for practical indoor alignment applications.
  • ±2mm accuracy at 5m supports precise levelling and line positioning.
  • Horizontal and vertical lines allow versatile cross-line alignment.
  • Self-leveling within ≤4° simplifies setup on slightly uneven surfaces.
  • ≤3-second leveling time enables quick positioning and operation.
  • Laser cross-lock function provides additional control when transporting or manually positioning the tool.
  • Red 635nm laser provides visible reference lines for alignment tasks.
  • AA battery operation makes replacement batteries readily accessible.
