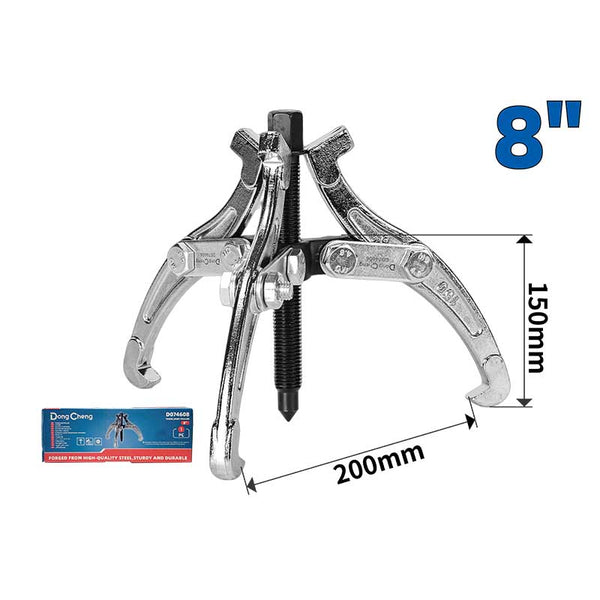

DONGCHENG 8" Three Jaws Puller, 4000 kg, 45# Steel, Chrome-Plated (HD074608)-=An 8" three-jaw puller with 4000 kg of force for larger bearings, gears, and hubs.
DONGCHENG 8" Three Jaws Puller, 4000 kg, 45# Steel, Chrome-Plated (HD074608)-=An 8" three-jaw puller with 4000 kg of force for larger bearings, gears, and hubs.
The DONGCHENG HD074608 Three Jaws Puller has a maximum force of 4000 kg, a 150 mm stroke, and a 200 mm opening size, so it handles larger parts than the 6" model (HD074606). Three jaws grip the part evenly for a straight, centred pull. The body is made from 45# steel with a chrome-plated and black oxide coating. It is made for mechanics, fitters, and industrial maintenance teams.
Key Features
Three jaws: an even, centred pull that resists slipping
4000 kg max force
150 mm stroke and 200 mm opening size
45# steel: strong and durable
Chrome-plated, black oxide coating: corrosion resistance
Packed by colour box
Application
Removing large bearings, gears, and pulleys
Pulling flywheels, hubs, and couplings
Motor, pump, and gearbox repair
Automotive and heavy machinery maintenance
Workshop and industrial use
Technical Specification
Specification
Detail
Brand
DONGCHENG
Model
HD074608
Product Type
Three Jaws Puller
Size
8"
Jaws
3
Max Force
4000 kg
Stroke
150 mm
Opening Size
200 mm
Material
45# steel
Surface Treatment
Chrome-plated, black oxide coating
Packaging
Colour box
Safety Note: Do not exceed the rated force. Keep the puller centred on the shaft and the jaws fully hooked. Wear eye protection, and do not use a hammer on the screw or jaws.
