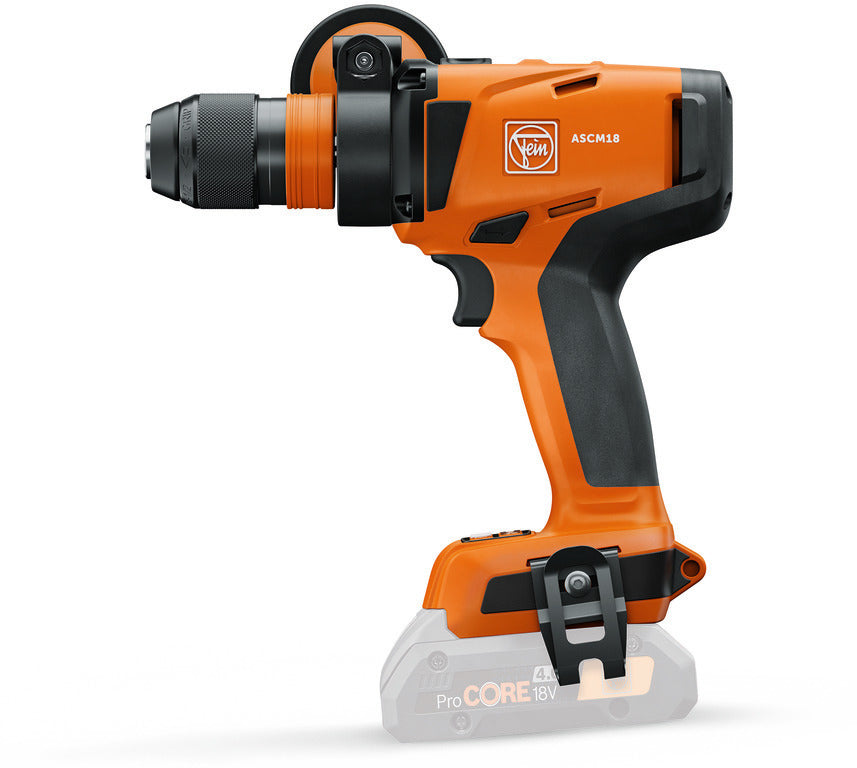

Fein 18V Cordless Drill Driver Set ASCM 18-4 QM AS METAL ADV TOP Part No 71161563000 | 130Nm 4-Speed Brushless Drill with QuickIN, 5Ah Battery, Charger, Accessories & L-BOXX
The Fein ASCM 18-4 QM AS METAL ADV TOP Set 71161563000 is a professional 18V cordless drill driver developed for demanding metalworking, drilling, screwdriving and tapping applications. It features a brushless FEIN PowerDrive motor, a robust 4-speed all-metal gearbox and the QuickIN interface, providing versatility and efficient accessory changes for professional users.
The drill delivers up to 130Nm of maximum torque and provides four speed ranges from 430 to 4000 RPM. The 1.5–13mm QuickIN metal drill chuck provides secure bit retention, while the electronic torque shut-off helps deliver controlled fastening performance. (fein.com)
The ASCM 18-4 QM AS is particularly suited to metalworking applications, including drilling in steel, tapping up to M14, countersinking and core drilling. Its kickback monitoring and electronic overload protection help provide enhanced control and protection during demanding applications. (fein.com)
The Metal Advanced Top Set includes an 18V 5.0Ah battery, GAL 1880 CV AS rapid charger, QuickIN accessories, drill chuck, bit holder and L-BOXX 136, providing a professional mobile solution for metal fabrication, installation, maintenance and workshop applications.
Wide Application Details
The Fein ASCM 18-4 QM AS METAL ADV TOP is suitable for steel drilling, metal fabrication, tapping, countersinking, core drilling, screwdriving, mechanical assembly, industrial maintenance, electrical installation, construction and professional workshop applications.
Product Features & Specifications
Brand: Fein
Product Type:Cordless Drill Driver Set
Model:ASCM 18-4 QM AS METAL ADV TOP
Part Number:71161563000
Battery Voltage:18V
Battery Capacity:5.0Ah
Motor:Brushless FEIN PowerDrive
Gearbox:4-Speed All-Metal
QuickIN Interface:Yes
No-Load Speed:430 / 850 / 2000 / 4000 RPM
Maximum Torque:130Nm
Hard Torque:70Nm
Soft Torque:50Nm
Torque Settings:15 + 1
Chuck Capacity:1.5–13mm
Steel Twist Drill Capacity:13mm
Steel Core Drill Capacity:30mm
Steel Hole Saw Capacity:80mm
Wood Drilling Capacity:60mm
Tapping Capacity:M14
Fastening Capacity:10 × 400mm
Battery System:18V AMPShare
Electronic Torque Shut-Off:Yes
Kickback Monitoring:Yes
Electronic Overload Protection:Yes
LED Work Light:Dimmable
Tool Weight Without Battery: Approximately 1.30kg
Tool Case:L-BOXX 136
Key Benefits
130Nm Maximum Torque: Provides strong performance for demanding metalworking and fastening applications.
18V Brushless FEIN PowerDrive Motor: Delivers efficient power and reduced motor wear for professional use.
4-Speed All-Metal Gearbox: Offers 430, 850, 2000 and 4000 RPM settings for precise speed selection. (fein.com)
QuickIN System: Allows rapid tool-free accessory changes for improved productivity.
1.5–13mm Metal Chuck: Provides secure clamping of compatible drill bits and accessories.
Professional Metalworking: Designed for drilling, tapping, countersinking and core drilling applications in metal.
M14 Tapping Capacity: Suitable for demanding professional tapping work.
15+1 Torque Settings: Helps provide precise control during screwdriving operations.
Kickback Monitoring: Helps reduce the risk of uncontrolled tool movement if the accessory becomes blocked.
Electronic Torque Shut-Off: Supports repeatable and controlled screwdriving.
Electronic Overload Protection: Helps protect the tool from excessive loads.
Dimmable LED Work Light: Improves visibility around the working area.
18V AMPShare Compatibility: Can be used with compatible AMPShare batteries and chargers.
5.0Ah Battery: Provides extended cordless working capacity.
L-BOXX Storage: Keeps the tool and accessories organized for transportation and storage.
Kit Contents
1 × Fein ASCM 18-4 QM AS METAL ADV TOP Cordless Drill Driver
