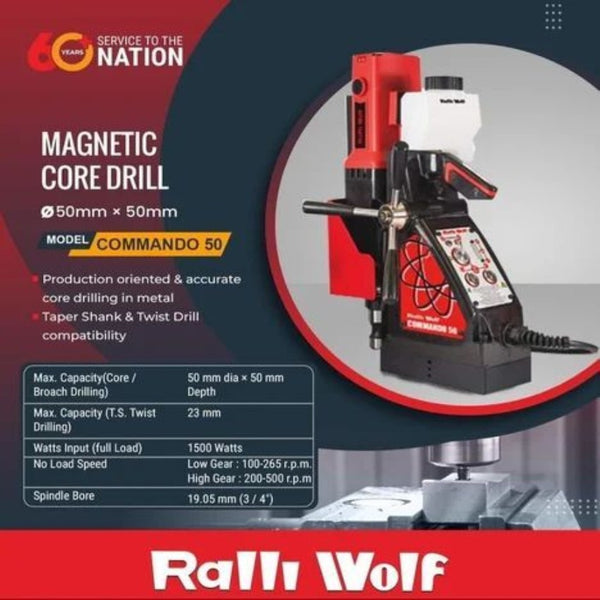

17The Ralli Wolf Commando 50 Magnetic Core Drilling Machineis designed for precision drilling in structural steel, metal plates and fabrication applications. Powered by a 1500W motor, it supports core drilling up to 50mm diameter and 50mm depth.
Its six-speed variable and reversible operation offers flexibility for different drilling tasks. The MT2 spindle supports compatible tooling, while the magnetic base helps hold the machine securely against suitable ferrous metal surfaces during operation. It is suitable for fabrication workshops, industrial maintenance and construction-related metalworking.
The manufacturer specifies a 230V supply, two speed ranges and a maximum twist-drilling capacity of 23mm.
50mm core drilling capacitywith up to 50mm cutting depth
6-speed variable and reversible operation
Two speed ranges:100–265 RPM and 200–500 RPM
MT2 spindlefor compatible drilling accessories
Up to 23mm twist-drilling capacity
M20 tapping capacityas listed by the retailer
Magnetic base for secure positioning on suitable steel surfaces
Suitable for workshop and on-site metal fabrication
Applications
Structural steel and steel beam drilling
Metal plate and fabrication work
Industrial machinery manufacturing and maintenance
Construction and infrastructure projects
Workshop metalworking
Drilling holes in suitable ferrous metal components

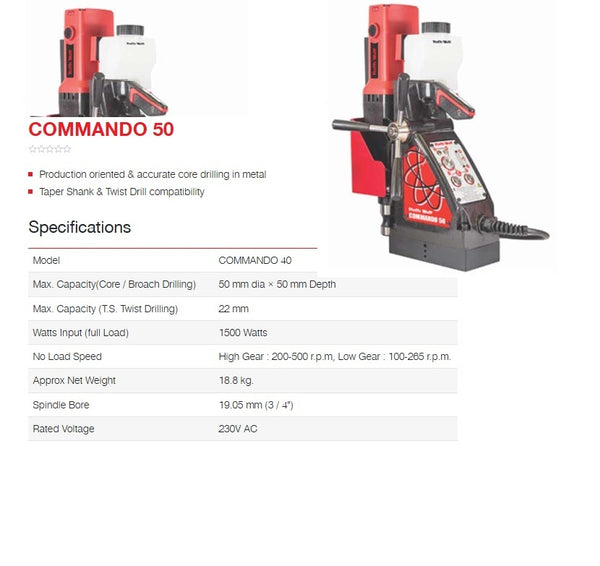

Technical Specifications
Specification
Details
Brand
Ralli Wolf
Model
Commando 50
Product Type
Magnetic Core Drilling Machine
Rated Voltage
230V AC
Power Input
1500W
Maximum Core Drilling Capacity
50mm diameter × 50mm depth
Maximum Twist Drill Capacity
23mm
Speed Selection
6-speed
No-Load Speed
100–265 RPM / 200–500 RPM
Operation
Variable and reversible
Spindle / Adaptor
MT2
Magnetic Adhesion
13,500N
Stroke
166mm
Magnet Dimensions
200 × 98 × 40mm
Net Weight
Approximately 15.8kg without accessories
Package Details
The product is listed with accessories such as a coolant bottle, safety belt, drill chuck and key, side handles, Allen keys and compatible drilling adaptors. Exact accessory quantities and the supplied configuration should be confirmed with the seller before publishing.
