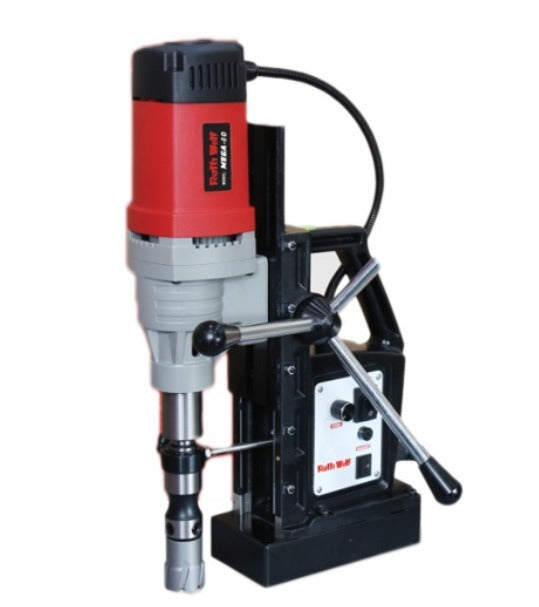

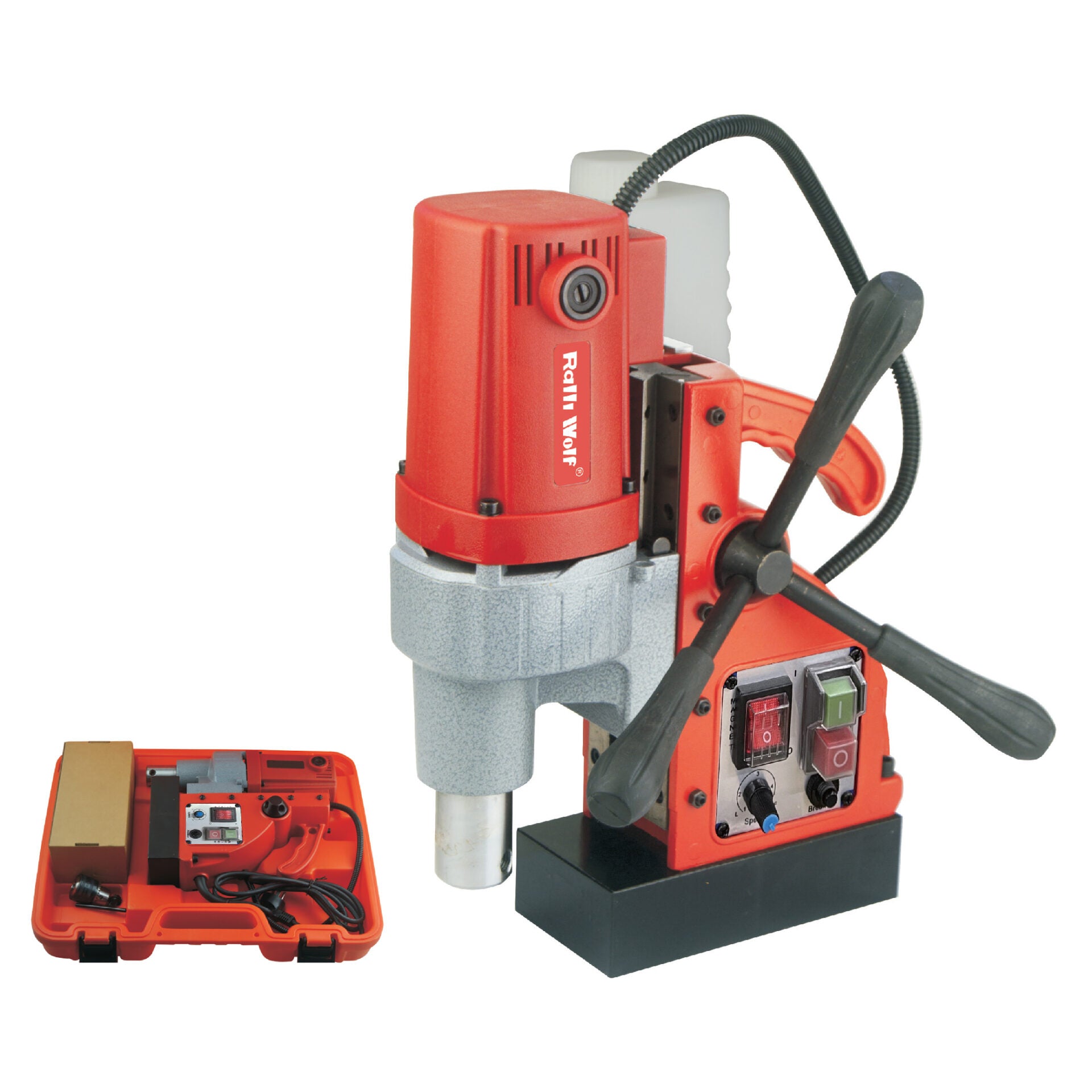

Ralli Wolf MEGA 42 Professional Magnetic Core Drilling Machine 1400W, 42mm Core Drilling Capacity, 100–700 RPM Variable Speed and 12000N Magnetic Adhesion

Product Code:

Availability:Out of stock

The Ralli Wolf MEGA 42 Professional Magnetic Drill Machine is designed for accurate drilling in structural steel, metal plates and other suitable ferrous surfaces. Its 1400W motor and variable speed range of 100–700 RPM support controlled drilling for fabrication workshops, construction sites and industrial maintenance tasks.

With a maximum core drilling diameter of 42mm and drilling depth of 50mm, the MEGA 42 is suitable for a variety of metalworking applications. Its 12,000N magnetic base helps secure the machine to compatible steel workpieces, while the additional twist-drilling capability supports holes up to 13mm. The machine also supports forward and reverse operation and tapping with compatible accessories.

Key Features

  • 1400W Motor: Designed for professional metal-drilling applications.
  • 42mm Core Drilling Capacity: Supports large-diameter core drilling.
  • 50mm Drilling Depth: Suitable for core drilling up to the specified depth.
  • Variable Speed Control: Adjustable no-load speed from 100–700 RPM.
  • 12,000N Magnetic Adhesion: Helps secure the drill to compatible ferrous surfaces.
  • 13mm Twist Drill Capacity: Supports conventional twist drilling.
  • Forward and Reverse Operation: Provides flexibility for different drilling tasks.
  • Multi-Purpose Design: Suitable for core drilling, twist drilling and compatible tapping operations.
  • Portable Construction: Approximate machine weight of 13kg.
  • Accessory Kit: Includes standard accessories for setup and operation.

Applications

  • Structural steel fabrication
  • Steel plate and beam drilling
  • Industrial metalworking
  • Construction and installation projects
  • Machinery maintenance and repair
  • Workshop fabrication
  • Metal structure assembly
  • Core drilling and twist drilling

Technical Specifications

Specification Details
Brand Ralli Wolf
Model MEGA 42
Tool Type Professional Magnetic Core Drill
Rated Voltage 230V
Input Power 1400W
No-Load Speed 100–700 RPM
Maximum Core Drilling Diameter 42mm
Maximum Drilling Depth 50mm
Maximum Twist Drill Diameter 13mm
Magnetic Adhesion 12,000N
Full-Load Current 8A
Insulation Grounding
Approximate Net Weight 13kg

Package Details

Standard accessories listed by the manufacturer include:

  • 1 × Ralli Wolf MEGA 42 Magnetic Drill Machine
  • 1 × BMC carry case
  • 1 pair of carbon brushes
  • 1 × cooling liquid bottle
  • 1 × metal chips pick-up tool
  • 1 × 13mm keyed drill chuck
  • 1 × chuck adaptor
  • 1 × safety rope
  • 2 × work-locating fix pins
  • 2 × hex wrenches
  • 3 × operating handles
  • 2 × fuses
